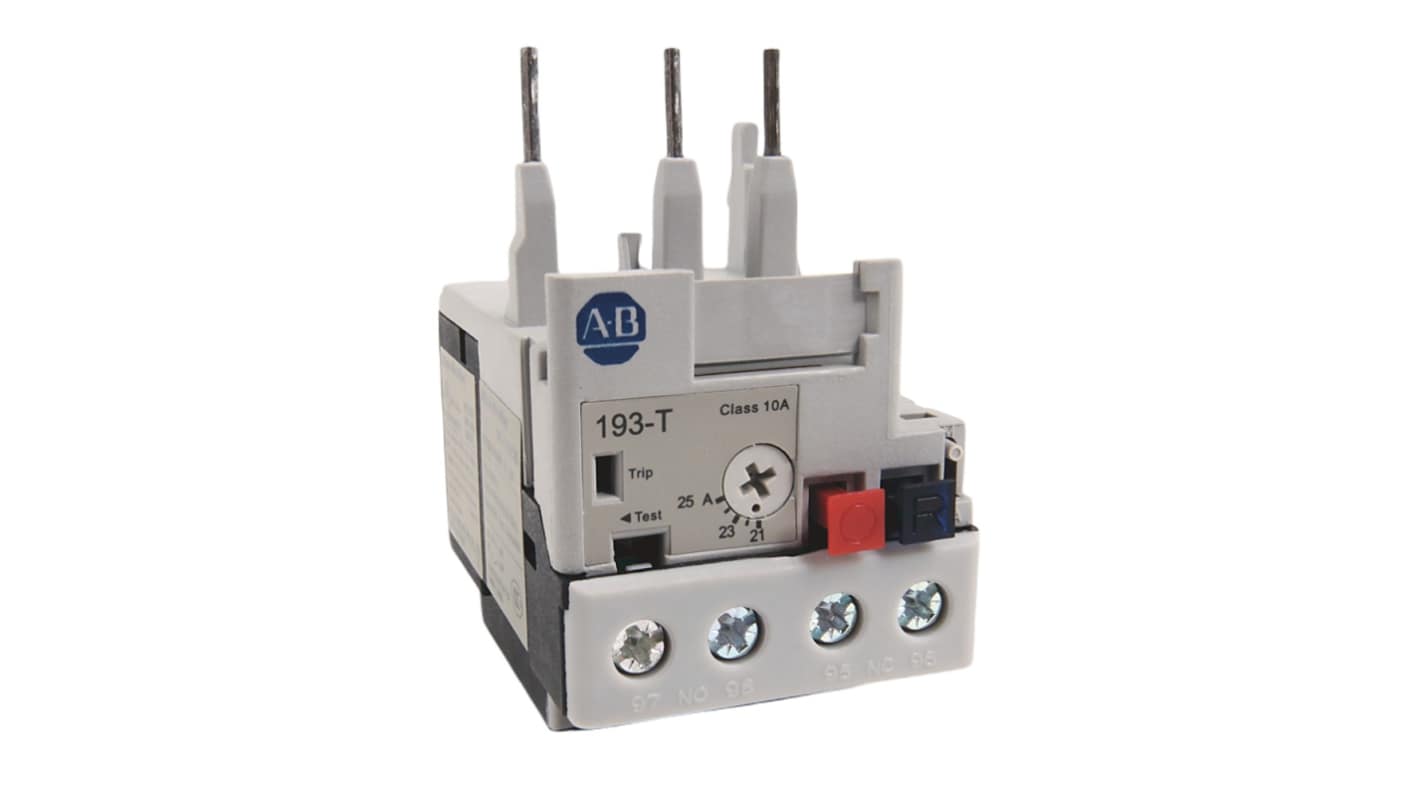

Allen Bradley, 193-T1 Overload Relay, 21A, 25 A F.L.C, 2mA Contact Rating, 12 W, 15V

Bekijk deze categorie

Subtotaal (1 eenheid)*

€ 78,59

(excl. BTW)

€ 95,09

(incl. BTW)

Add to Basket
selecteer of typ hoeveelheid
Op voorraad
  • Plus verzending 1 stuk(s) vanaf 04 mei 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks
Per stuk
1 +€ 78,59

*prijsindicatie

RS-stocknr.:
250-237
Fabrikantnummer:
193-T1AC25
Fabrikant:
Allen Bradley
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren

Merk

Allen Bradley

Product Type

Overload Relay

FLC Motor Rating

21, 25A

Relay Contact Current

2mA

Series

193-T1

Mount Type

Panel, DIN Rail

Power Rating

12W

Terminal Type

Screw

Reset Method

Automatic & Manual

IP Rating

IP2X

Width

45mm

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

60°C

Length

86.5mm

Depth

136.5mm

Standards/Approvals

-5-1, -4-1, UL508, EC/EN 60497-1, CSA C22.2 No.14

Control Voltage

15V

The Allen Bradley Bimetallic Overload Relay is designed for reliable motor protection, with a trip rating of ultimate tripping current set at 120% of the Full Load Amperage. It offers phase loss sensitivity, with a trip rating at phase loss of 115% FLA. The relay features an automatic or manual reset mode, providing flexibility in operation. For maintenance or testing, it includes a manual release of auxiliary contacts. Trip indication is clearly visible through a flag, ensuring easy identification of overload events. The relay is suitable for use at altitudes up to 2000 meters.

IP2X protection rated

Pollution degree is 3

CE and cULus certified

UL508 and CSA standard meet
