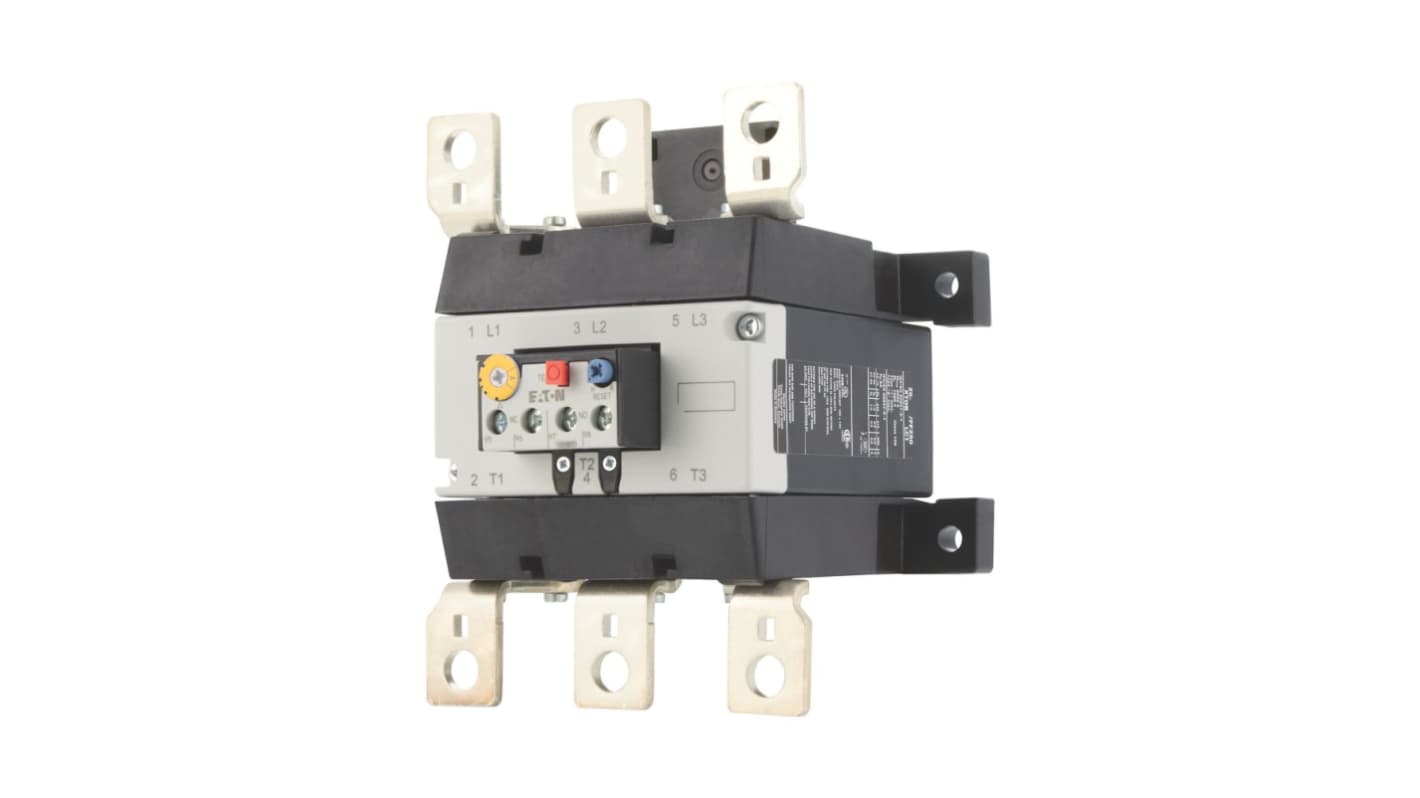

Eaton, Z5 Overload Relay 1 NO/1 NC, 6A Contact Rating, 1000V 1P
- RS-stocknr.:
- 251-900
- Fabrikantnummer:
- 210074 Z5-220/FF250
- Fabrikant:
- Eaton
Subtotaal (1 eenheid)*
€ 382,00
(excl. BTW)
€ 462,22
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Voorradig bij de fabrikant
- Klaar voor verzending vanaf 16 juli 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 382,00 |
*prijsindicatie
- RS-stocknr.:
- 251-900
- Fabrikantnummer:
- 210074 Z5-220/FF250
- Fabrikant:
- Eaton
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Eaton | |
| Product Type | Overload Relay | |
| Relay Contact Current | 6A | |
| Series | Z5 | |
| Pole and Throw Configuration | 1P | |
| Normal State Configuration | 1 NO/1 NC | |
| Terminal Type | Screw | |
| IP Rating | IP00 | |
| Reset Method | Push Button | |
| Number of Auxiliary Contacts | 2 | |
| Minimum Operating Temperature | -25°C | |
| Adjustable Current Range | 160 to 220 A | |
| Width | 128mm | |
| Maximum Operating Temperature | 60°C | |
| Length | 146mm | |
| Depth | 167mm | |
| Standards/Approvals | UL E29184 CSA 012528 CSA-C22.2 No. 60947-4-1-14 UL NKCR CE UL 60947-4-1 VDE 0660 UL CSA IEC/EN 60947 IEC/EN 60947-4-1 CSA Class No.:3211-03 | |
| Control Voltage | 1000V | |
| Alles selecteren | ||
|---|---|---|
Merk Eaton | ||
Product Type Overload Relay | ||
Relay Contact Current 6A | ||
Series Z5 | ||
Pole and Throw Configuration 1P | ||
Normal State Configuration 1 NO/1 NC | ||
Terminal Type Screw | ||
IP Rating IP00 | ||
Reset Method Push Button | ||
Number of Auxiliary Contacts 2 | ||
Minimum Operating Temperature -25°C | ||
Adjustable Current Range 160 to 220 A | ||
Width 128mm | ||
Maximum Operating Temperature 60°C | ||
Length 146mm | ||
Depth 167mm | ||
Standards/Approvals UL E29184 CSA 012528 CSA-C22.2 No. 60947-4-1-14 UL NKCR CE UL 60947-4-1 VDE 0660 UL CSA IEC/EN 60947 IEC/EN 60947-4-1 CSA Class No.:3211-03 | ||
Control Voltage 1000V | ||
- Land van herkomst:
- DE
The Eaton thermal overload relay is designed to protect against overloads and phase failure in motor control applications. This exceptional device features a robust construction, ensuring reliable performance under varying conditions. With a rated operational current adjustment from 160 to 220 A, this overload relay suits a wide array of applications, making it an ideal choice for both industrial and commercial environments. It provides simple manual and automatic reset options, along with a test-off button for easy maintenance. The overload relay complies with multiple international standards, including IEC/EN 60947, VDE 0660, UL, and CSA, assuring users of its effectiveness and safety.
Robust thermal overload protection safeguards equipment from potential damage
User-friendly reset options offer flexibility in operation
Compatible with DILM250 and DILM300A, enhancing versatility in usage
Phase-failure sensitivity ensures reliable operation in various conditions
Compact size facilitates easy installation in tight spaces
Direct and separate mounting options provide adaptability according to user requirements
IP00 degree of protection allows it to operate efficiently in controlled environments
