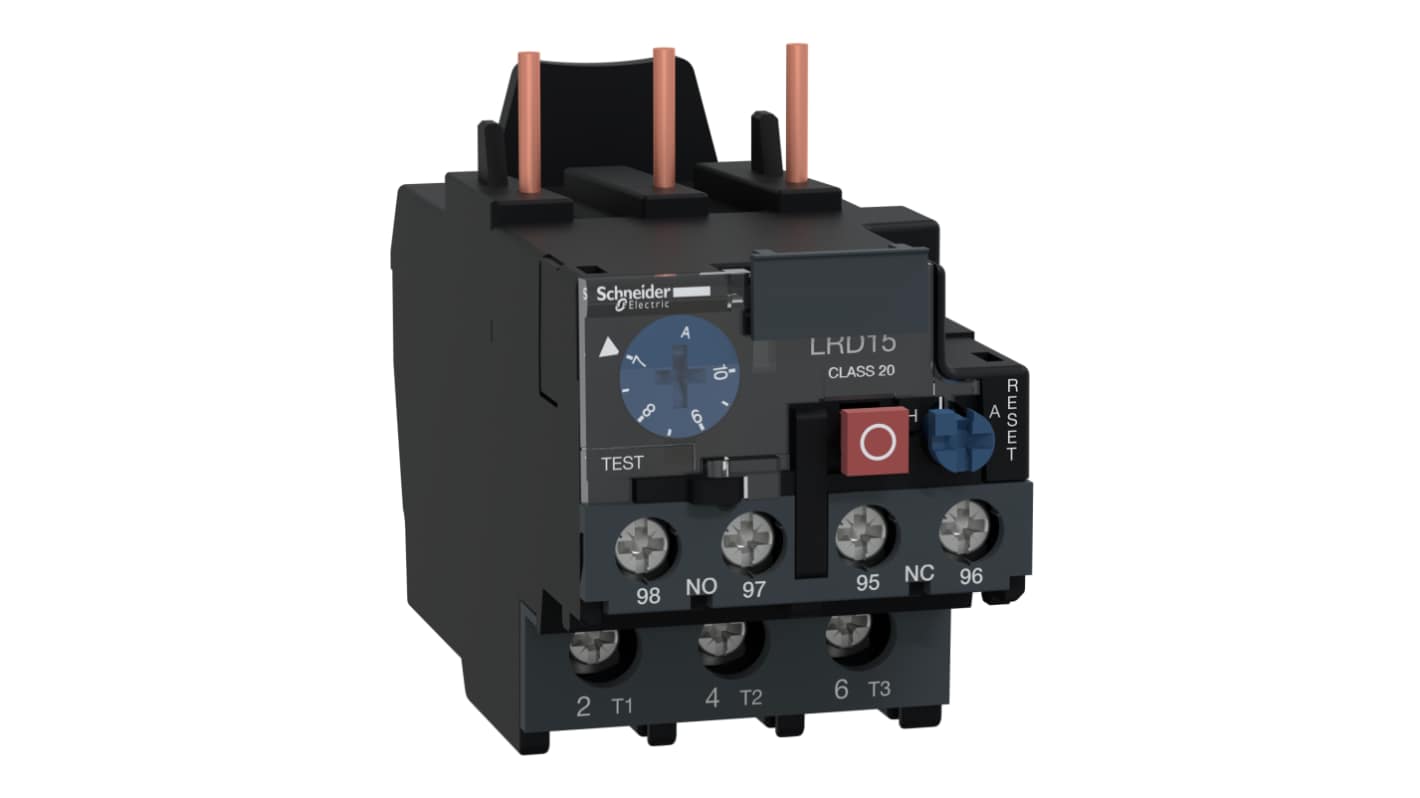

Schneider Electric, TeSys Deca Thermal Overload Relay 1 NO/1 NC, 10A, 7 A F.L.C, 10A Contact Rating, 4 kW 3
- RS-stocknr.:
- 394-308
- Fabrikantnummer:
- LRD1514
- Fabrikant:
- Schneider Electric
Subtotaal (1 eenheid)*
€ 102,54
(excl. BTW)
€ 124,07
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
- Plus verzending 5 stuk(s) vanaf 07 september 2026
- Plus verzending 4 stuk(s) vanaf 07 september 2026
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 102,54 |
*prijsindicatie
Ons Better World assortiment bevat producten die het u gemakkelijk maken om een groenere productkeuze te maken waarop u kunt vertrouwen.
Lees meer over de RS Better World producten
- RS-stocknr.:
- 394-308
- Fabrikantnummer:
- LRD1514
- Fabrikant:
- Schneider Electric
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Schneider Electric | |
| Product Type | Thermal Overload Relay | |
| FLC Motor Rating | 10, 7A | |
| Relay Contact Current | 10A | |
| Series | TeSys Deca | |
| Pole and Throw Configuration | 3 | |
| Power Rating | 4kW | |
| Normal State Configuration | 1 NO/1 NC | |
| Terminal Type | Screw Clamp | |
| Reset Method | Automatic & Manual | |
| IP Rating | IP20 | |
| Number of Auxiliary Contacts | 2 | |
| Minimum Operating Temperature | -20°C | |
| Width | 45mm | |
| Adjustable Current Range | 7 → 10 A | |
| Contact Voltage | 1kV ac | |
| Maximum Operating Temperature | 60°C | |
| Length | 80mm | |
| Standards/Approvals | EN/IEC 60947-4-1, CSA C22.2 No 60947-5-1, CSA C22.2 No 60947-4-1, UL 60947-5-1, UL 60947-4-1, EN/IEC 60947-5-1 | |
| Depth | 66mm | |
| Better World Product | Yes | |
| Better World Claim | Designed for Disassembly | |
| Supply Voltage | 690V | |
| Alles selecteren | ||
|---|---|---|
Merk Schneider Electric | ||
Product Type Thermal Overload Relay | ||
FLC Motor Rating 10, 7A | ||
Relay Contact Current 10A | ||
Series TeSys Deca | ||
Pole and Throw Configuration 3 | ||
Power Rating 4kW | ||
Normal State Configuration 1 NO/1 NC | ||
Terminal Type Screw Clamp | ||
Reset Method Automatic & Manual | ||
IP Rating IP20 | ||
Number of Auxiliary Contacts 2 | ||
Minimum Operating Temperature -20°C | ||
Width 45mm | ||
Adjustable Current Range 7 → 10 A | ||
Contact Voltage 1kV ac | ||
Maximum Operating Temperature 60°C | ||
Length 80mm | ||
Standards/Approvals EN/IEC 60947-4-1, CSA C22.2 No 60947-5-1, CSA C22.2 No 60947-4-1, UL 60947-5-1, UL 60947-4-1, EN/IEC 60947-5-1 | ||
Depth 66mm | ||
Better World Product Yes | ||
Better World Claim Designed for Disassembly | ||
Supply Voltage 690V | ||
Three-pole Thermal Overload Relays
