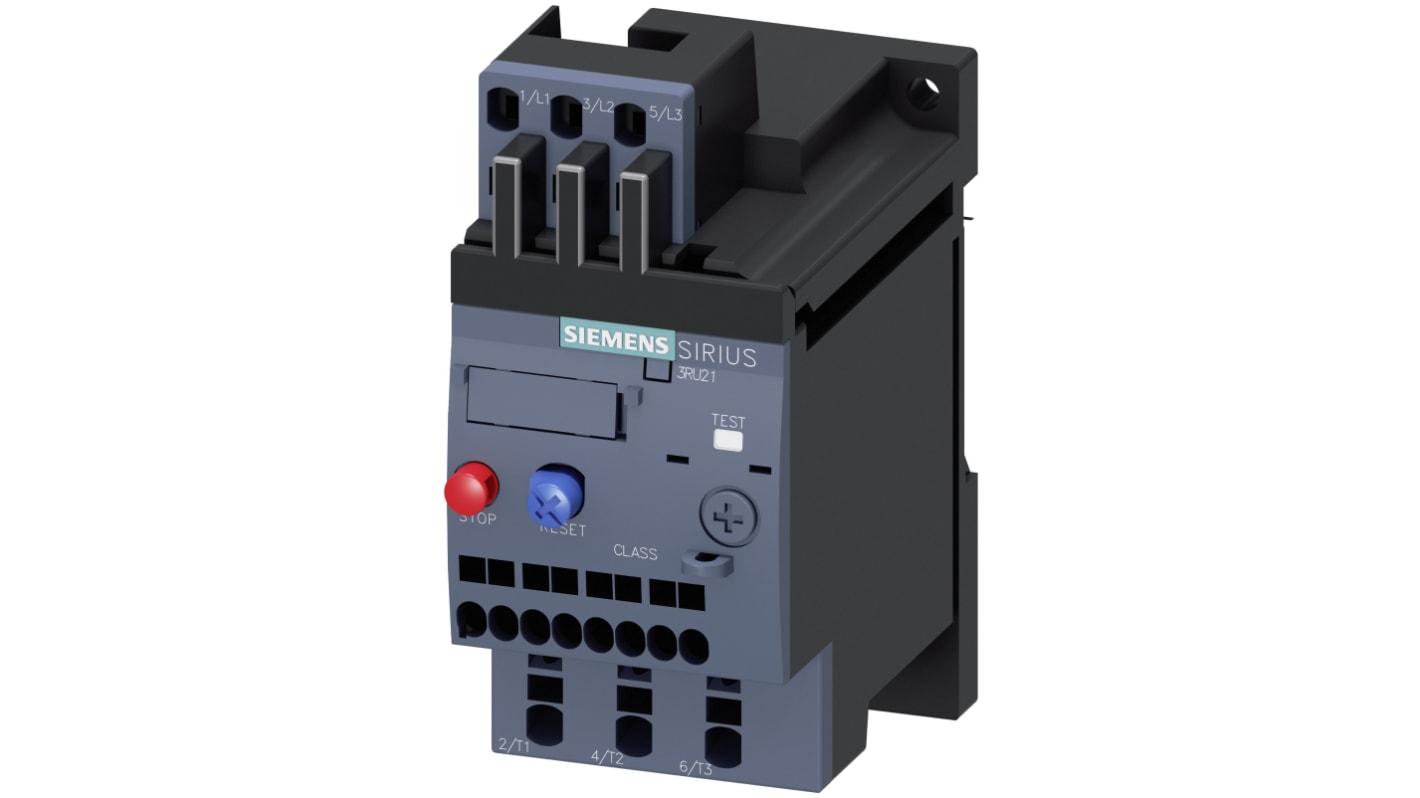

Siemens, SIRIUS 3RU2 Thermal Overload Relay 1 NO/1 NC, 12.5A F.L.C, 3A Contact Rating, 7.5 kW 3
- RS-stocknr.:
- 122-9506
- Fabrikantnummer:
- 3RU2116-1KC1
- Fabrikant:
- Siemens
Subtotaal (1 eenheid)*
€ 99,49
(excl. BTW)
€ 120,38
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Voorradig bij de fabrikant
- Klaar voor verzending vanaf 25 mei 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 99,49 |
*prijsindicatie
- RS-stocknr.:
- 122-9506
- Fabrikantnummer:
- 3RU2116-1KC1
- Fabrikant:
- Siemens
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Siemens | |
| Product Type | Thermal Overload Relay | |
| FLC Motor Rating | 12.5A | |
| Relay Contact Current | 3A | |
| Series | SIRIUS 3RU2 | |
| Mount Type | Stand Alone | |
| Power Rating | 7.5kW | |
| Pole and Throw Configuration | 3 | |
| Terminal Type | Spring Loaded | |
| Normal State Configuration | 1 NO/1 NC | |
| IP Rating | IP20 | |
| Reset Method | Automatic & Manual | |
| Adjustable Current Range | 9 to 12.5 A | |
| Number of Auxiliary Contacts | 2 | |
| Minimum Operating Temperature | -40°C | |
| Width | 79.5mm | |
| Maximum Operating Temperature | 70°C | |
| Length | 45mm | |
| Contact Voltage | 690V ac | |
| Standards/Approvals | IEC 81346-2, CSA, UL, IEC 60529, IEC 60068-2-27 | |
| Depth | 101.9mm | |
| Supply Voltage | 690V ac | |
| Alles selecteren | ||
|---|---|---|
Merk Siemens | ||
Product Type Thermal Overload Relay | ||
FLC Motor Rating 12.5A | ||
Relay Contact Current 3A | ||
Series SIRIUS 3RU2 | ||
Mount Type Stand Alone | ||
Power Rating 7.5kW | ||
Pole and Throw Configuration 3 | ||
Terminal Type Spring Loaded | ||
Normal State Configuration 1 NO/1 NC | ||
IP Rating IP20 | ||
Reset Method Automatic & Manual | ||
Adjustable Current Range 9 to 12.5 A | ||
Number of Auxiliary Contacts 2 | ||
Minimum Operating Temperature -40°C | ||
Width 79.5mm | ||
Maximum Operating Temperature 70°C | ||
Length 45mm | ||
Contact Voltage 690V ac | ||
Standards/Approvals IEC 81346-2, CSA, UL, IEC 60529, IEC 60068-2-27 | ||
Depth 101.9mm | ||
Supply Voltage 690V ac | ||
Vrijgesteld
Overload Relay - 3RU range
Switch position indicator and test function
STOP button
Selector switch for manual/automatic reset
Screw connection or Spring-clamp versions
Impulse voltage resistance 6 kV
Insulation voltage 690V
Surface or DIN-rail stand-alone mounts available, see 706-1699 etc
The 3RU21 thermal overload relays up to 80 A have been designed for current-sensitive protection of loads with normal starting.
These thermal overload relays for use with Sirius Size S0 & S00 Contactors
Note
Screw terminals can only be used with screw terminal overloads and spring terminals can only be used with spring terminal overloads.
Approvals
CE, UL, CSA
