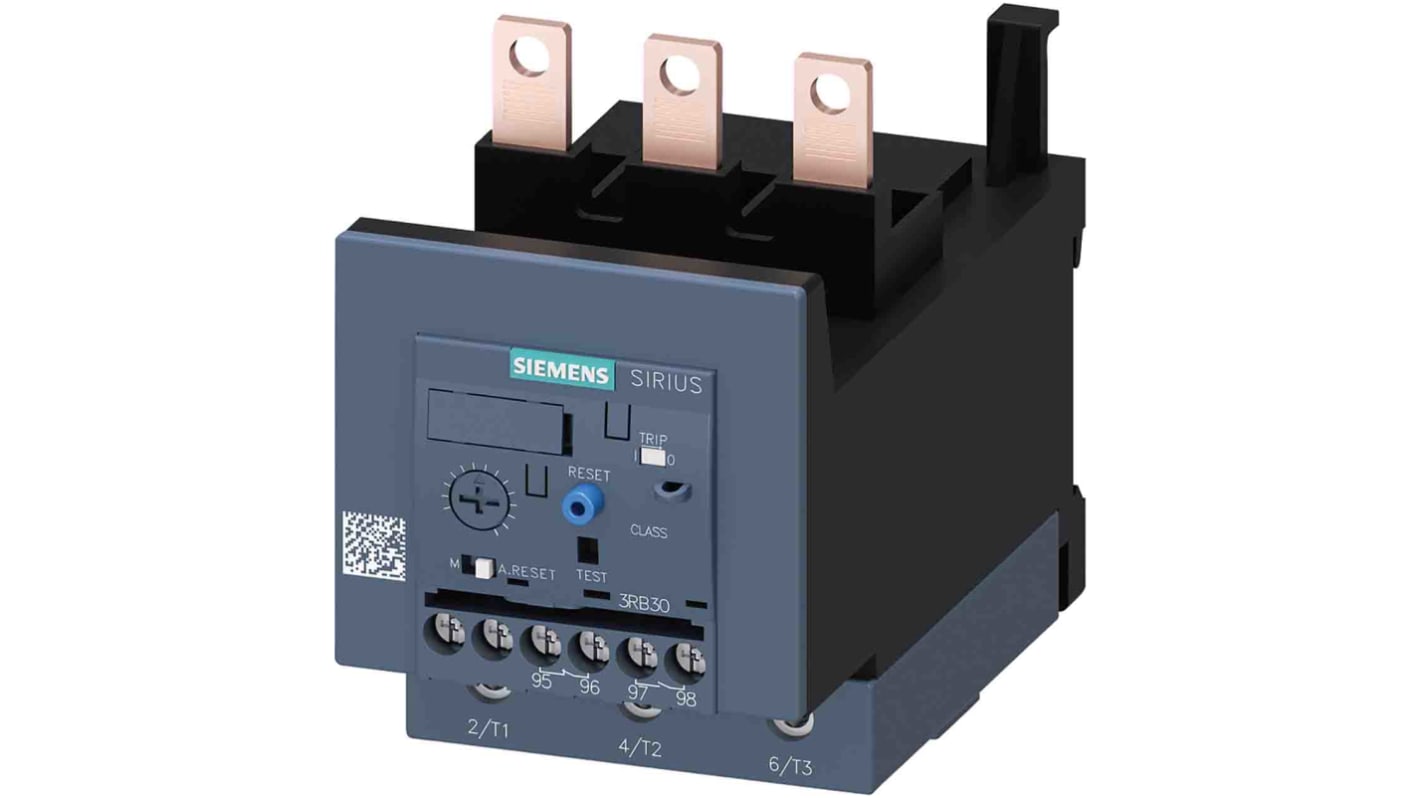

Siemens, 3RB Overload Relay 1 NO/1 NC, 50A F.L.C, 4A Contact Rating, 45 V, 1000V 3
- RS-stocknr.:
- 202-1634
- Fabrikantnummer:
- 3RB3046-1UW1
- Fabrikant:
- Siemens
Subtotaal (1 eenheid)*
€ 317,14
(excl. BTW)
€ 383,74
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Voorradig bij de fabrikant
- Klaar voor verzending vanaf 02 oktober 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 317,14 |
*prijsindicatie
- RS-stocknr.:
- 202-1634
- Fabrikantnummer:
- 3RB3046-1UW1
- Fabrikant:
- Siemens
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Siemens | |
| FLC Motor Rating | 50A | |
| Product Type | Overload Relay | |
| Relay Contact Current | 4A | |
| Series | 3RB | |
| Mount Type | Stand Alone | |
| Power Rating | 45V | |
| Pole and Throw Configuration | 3 | |
| Normal State Configuration | 1 NO/1 NC | |
| Terminal Type | Screw | |
| IP Rating | IP20 | |
| Reset Method | Automatic & Manual | |
| Minimum Operating Temperature | -25°C | |
| Adjustable Current Range | 12.5 → 50 A | |
| Number of Auxiliary Contacts | 1 | |
| Width | 70mm | |
| Length | 106mm | |
| Maximum Operating Temperature | 60°C | |
| Depth | 124mm | |
| Standards/Approvals | CE Approved, UL Approved, IEC 81346-2, IEC 61000-4-6, IEC 61000-4-5, IEC 61000-4-4, IEC 61000-4-3, IEC 61000-4-2, IEC 60529, IEC 60068-2-27, EAC Approved, CCC approved, CSA Approved | |
| Control Voltage | 1000V | |
| Alles selecteren | ||
|---|---|---|
Merk Siemens | ||
FLC Motor Rating 50A | ||
Product Type Overload Relay | ||
Relay Contact Current 4A | ||
Series 3RB | ||
Mount Type Stand Alone | ||
Power Rating 45V | ||
Pole and Throw Configuration 3 | ||
Normal State Configuration 1 NO/1 NC | ||
Terminal Type Screw | ||
IP Rating IP20 | ||
Reset Method Automatic & Manual | ||
Minimum Operating Temperature -25°C | ||
Adjustable Current Range 12.5 → 50 A | ||
Number of Auxiliary Contacts 1 | ||
Width 70mm | ||
Length 106mm | ||
Maximum Operating Temperature 60°C | ||
Depth 124mm | ||
Standards/Approvals CE Approved, UL Approved, IEC 81346-2, IEC 61000-4-6, IEC 61000-4-5, IEC 61000-4-4, IEC 61000-4-3, IEC 61000-4-2, IEC 60529, IEC 60068-2-27, EAC Approved, CCC approved, CSA Approved | ||
Control Voltage 1000V | ||
- Land van herkomst:
- CZ
The Siemens 50A electronic overload relay mainly used for motor protection of size S3. It has different electrical connection for main current circuit straight-through transformers connection and for auxiliary and control current circuit screw-type termin
Protection class IP20
Ambient temperature during operation -25 to +60 °C
Trip class 10E
