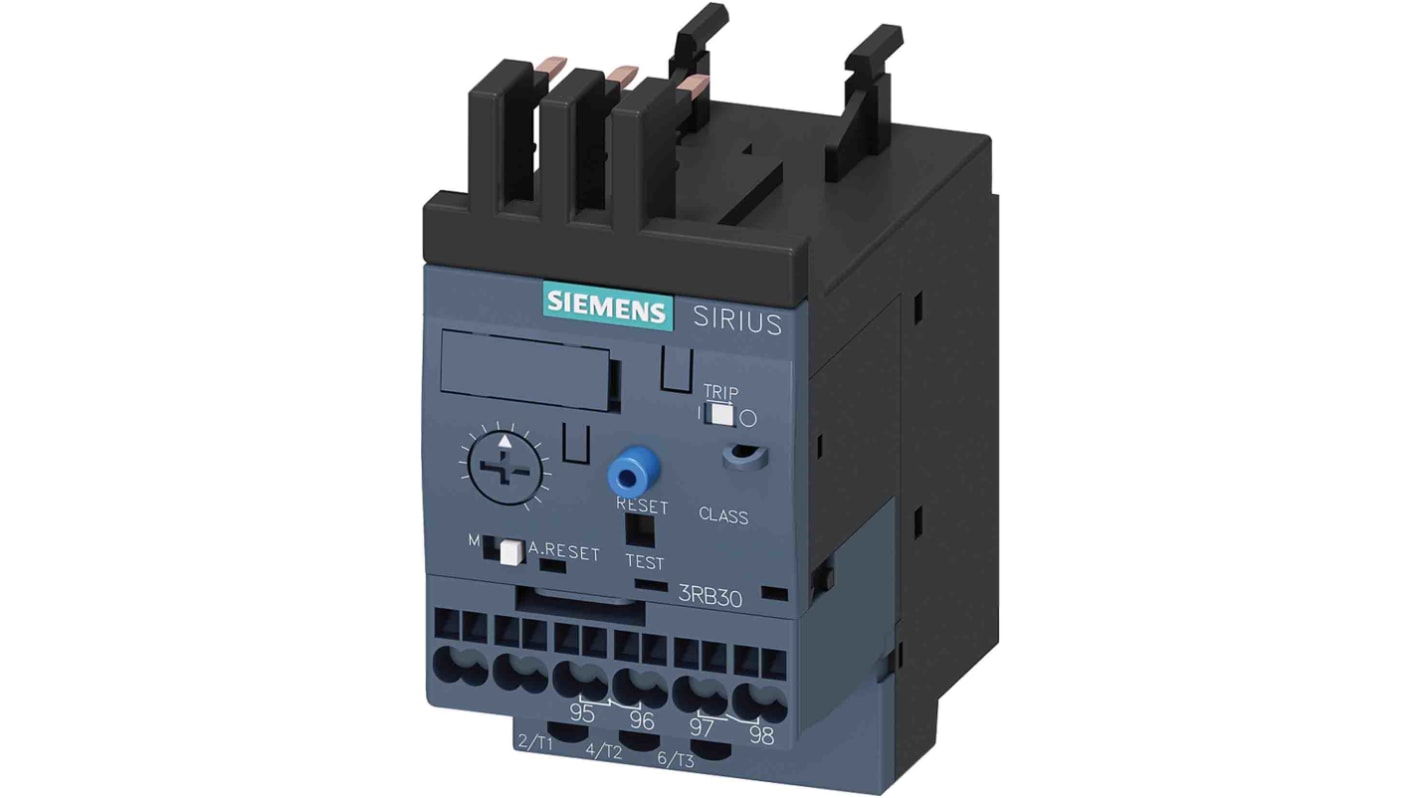

Siemens, 3RB3 Overload Relay 1 NO/1 NC, 16A F.L.C, 16A Contact Rating, 11 kW, 690V ac 3
- RS-stocknr.:
- 210-3467
- Artikelnummer Distrelec:
- 301-24-274
- Fabrikantnummer:
- 3RB3016-1TE0
- Fabrikant:
- Siemens
Subtotaal (1 eenheid)*
€ 118,17
(excl. BTW)
€ 142,99
(incl. BTW)
Informatie over voorraden is momenteel niet toegankelijk - Controleer het later nog eens opnieuw
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 118,17 |
*prijsindicatie
- RS-stocknr.:
- 210-3467
- Artikelnummer Distrelec:
- 301-24-274
- Fabrikantnummer:
- 3RB3016-1TE0
- Fabrikant:
- Siemens
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Siemens | |
| FLC Motor Rating | 16A | |
| Product Type | Overload Relay | |
| Relay Contact Current | 16A | |
| Series | 3RB3 | |
| Mount Type | Direct | |
| Power Rating | 11kW | |
| Pole and Throw Configuration | 3 | |
| Normal State Configuration | 1 NO/1 NC | |
| Terminal Type | Spring Loaded | |
| Reset Method | Automatic & Manual | |
| IP Rating | IP20 | |
| Width | 45mm | |
| Adjustable Current Range | 4 to 16 A | |
| Number of Auxiliary Contacts | 2 | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 60°C | |
| Contact Voltage | 690V | |
| Length | 72mm | |
| Standards/Approvals | UL Approved, IEC 81346-2, IEC 61000-4-6, IEC 61000-4-5, IEC 61000-4-4, IEC 61000-4-3, IEC 61000-4-2, IEC 60529, IEC 60068-2-27, EAC Approved, CSA Approved, CE Approved, CCC approved | |
| Depth | 90mm | |
| Control Voltage | 690V ac | |
| Alles selecteren | ||
|---|---|---|
Merk Siemens | ||
FLC Motor Rating 16A | ||
Product Type Overload Relay | ||
Relay Contact Current 16A | ||
Series 3RB3 | ||
Mount Type Direct | ||
Power Rating 11kW | ||
Pole and Throw Configuration 3 | ||
Normal State Configuration 1 NO/1 NC | ||
Terminal Type Spring Loaded | ||
Reset Method Automatic & Manual | ||
IP Rating IP20 | ||
Width 45mm | ||
Adjustable Current Range 4 to 16 A | ||
Number of Auxiliary Contacts 2 | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 60°C | ||
Contact Voltage 690V | ||
Length 72mm | ||
Standards/Approvals UL Approved, IEC 81346-2, IEC 61000-4-6, IEC 61000-4-5, IEC 61000-4-4, IEC 61000-4-3, IEC 61000-4-2, IEC 60529, IEC 60068-2-27, EAC Approved, CSA Approved, CE Approved, CCC approved | ||
Depth 90mm | ||
Control Voltage 690V ac | ||
The Siemens overload relay of current rating 4-16 A. It is used for motor protection size S00, class 10E and having contactor mounting. The main circuit has spring type terminal and auxiliary circuit has spring-type terminal. The manual automatic reset solid state overload relay Sirius 3RB3 used for inverse-time delayed protection of loads with normal and heavy starting against excessive temperature rises due to overload, phase unbalance or phase failure.
Insulation voltage 690V
Surge voltage resistance rated value 6 kV
