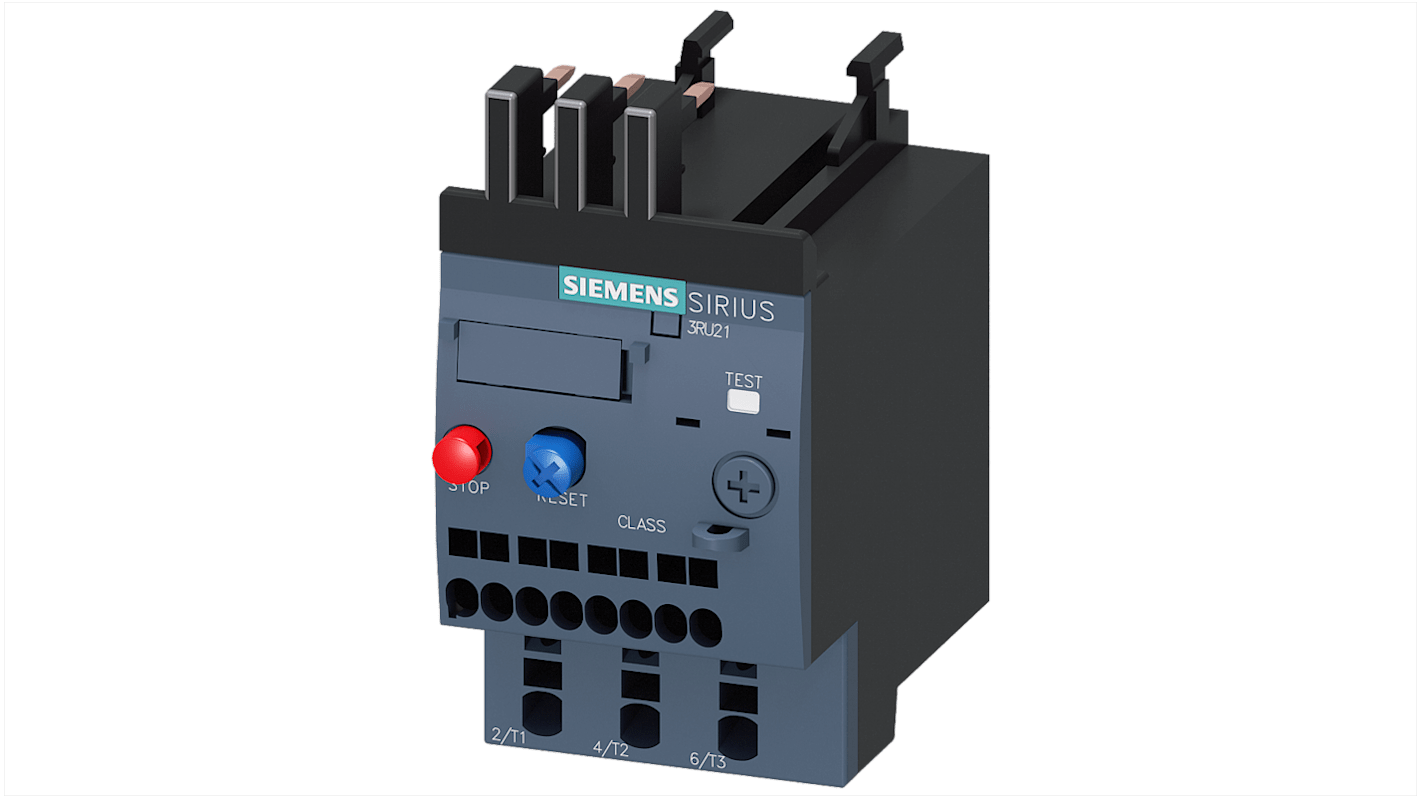

Siemens, SIRIUS 3RU2 Thermal Overload Relay 1 NO/1 NC, 4A F.L.C, 4A Contact Rating, 3 kW, 690V 3P
- RS-stocknr.:
- 211-0046
- Artikelnummer Distrelec:
- 301-24-322
- Fabrikantnummer:
- 3RU2116-1EC0
- Fabrikant:
- Siemens
Subtotaal (1 eenheid)*
€ 77,97
(excl. BTW)
€ 94,34
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Tijdelijk niet op voorraad
- Verzending vanaf 22 september 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 77,97 |
*prijsindicatie
- RS-stocknr.:
- 211-0046
- Artikelnummer Distrelec:
- 301-24-322
- Fabrikantnummer:
- 3RU2116-1EC0
- Fabrikant:
- Siemens
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Siemens | |
| FLC Motor Rating | 4A | |
| Product Type | Thermal Overload Relay | |
| Relay Contact Current | 4A | |
| Series | SIRIUS 3RU2 | |
| Mount Type | Direct | |
| Power Rating | 3kW | |
| Pole and Throw Configuration | 3P | |
| Terminal Type | Spring Loaded | |
| Normal State Configuration | 1 NO/1 NC | |
| IP Rating | IP20 | |
| Reset Method | Automatic & Manual | |
| Minimum Operating Temperature | -40°C | |
| Width | 45mm | |
| Number of Auxiliary Contacts | 2 | |
| Adjustable Current Range | 2.8 → 4 A | |
| Maximum Operating Temperature | 70°C | |
| Length | 87mm | |
| Contact Voltage | 400V | |
| Standards/Approvals | UL, CSA, CE, CCC, IEC 81346-2, IEC 61508, IEC 60529, IEC 60068-2-27, EAC | |
| Depth | 70mm | |
| Control Voltage | 690V | |
| Supply Voltage | 690V | |
| Alles selecteren | ||
|---|---|---|
Merk Siemens | ||
FLC Motor Rating 4A | ||
Product Type Thermal Overload Relay | ||
Relay Contact Current 4A | ||
Series SIRIUS 3RU2 | ||
Mount Type Direct | ||
Power Rating 3kW | ||
Pole and Throw Configuration 3P | ||
Terminal Type Spring Loaded | ||
Normal State Configuration 1 NO/1 NC | ||
IP Rating IP20 | ||
Reset Method Automatic & Manual | ||
Minimum Operating Temperature -40°C | ||
Width 45mm | ||
Number of Auxiliary Contacts 2 | ||
Adjustable Current Range 2.8 → 4 A | ||
Maximum Operating Temperature 70°C | ||
Length 87mm | ||
Contact Voltage 400V | ||
Standards/Approvals UL, CSA, CE, CCC, IEC 81346-2, IEC 61508, IEC 60529, IEC 60068-2-27, EAC | ||
Depth 70mm | ||
Control Voltage 690V | ||
Supply Voltage 690V | ||
- Land van herkomst:
- DE
Siemens Overload Relay, 3 Poles, IP20 Rating - SIRIUS Series - 3RU2116-1EC0
Step up your motor protection with this overload relay from Siemens. It reacts to excess current in a flash, preventing overheating and damage to your motor and its circuits. This thermal device works using a bi-metallic plate and heating element. You can trust it to safely handle a current range between 2.8 and 4A, with contacts opening to interrupt the power and prevent overloading of the system. This makes it a good choice for industrial applications including automotive manufacturing. A control voltage of 690V and power rating up to 3kW means this product is suited to high-powered tasks.
Features & Benefits
• IP20 rating indicates it's touch-proof and safe from damage caused by objects over 12mm
• Mean time to failure of 2,280 years indicates it's built to last for the long haul
• Does the job reliably in a wide operating temperature range between -40°C and +70°C
• Spring-loaded terminals clamp down on wires to achieve a strong and secure connection
What size is this overload relay?
With compact dimensions of 87 (H) x 45 (W) x 70mm (D), this relay fits neatly into a crowded cabinet.
