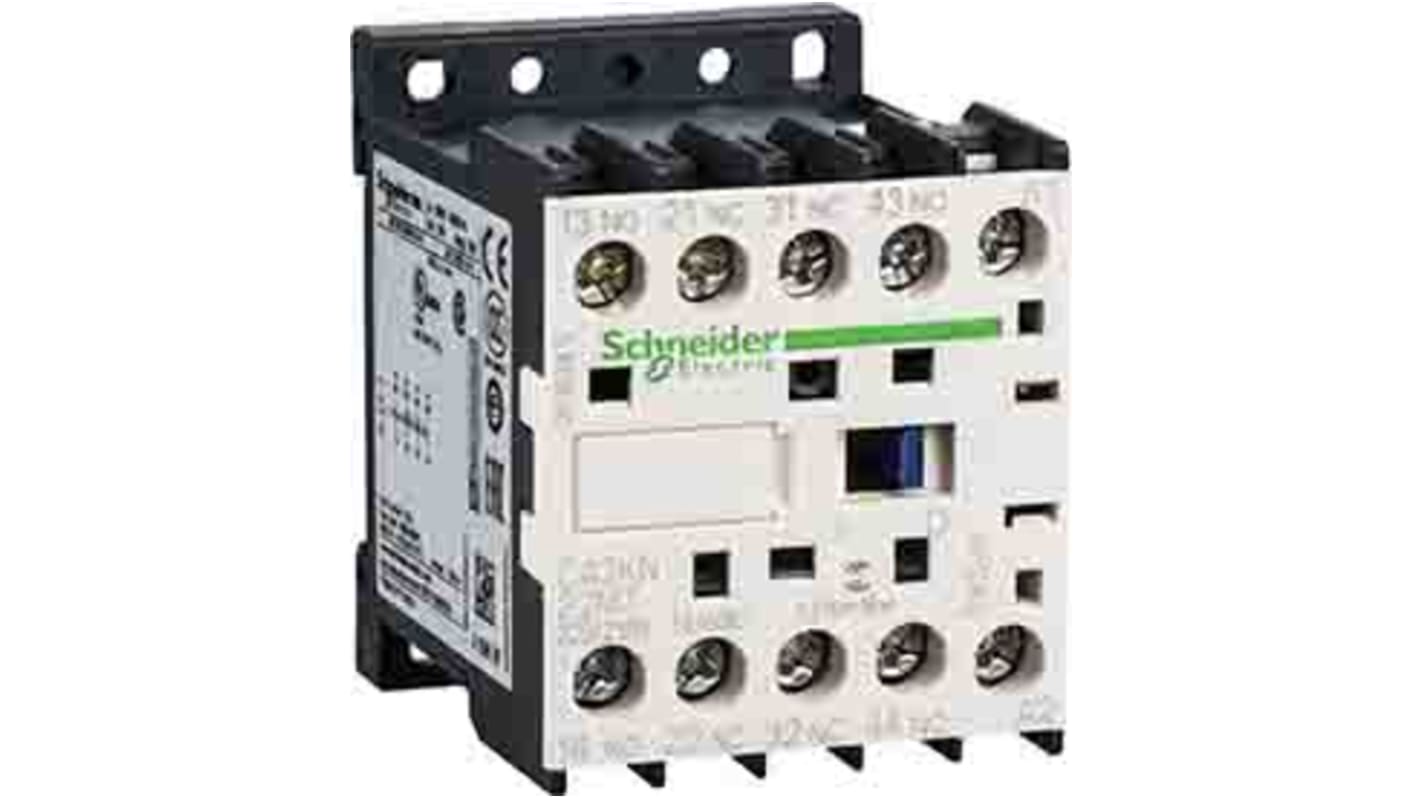

Schneider Electric, TeSyS CA Control Relay 4 NO, 110A F.L.C, 10A Contact Rating, 0.05 kW, 24V ac
- RS-stocknr.:
- 211-1646
- Fabrikantnummer:
- CA2KN40B72
- Fabrikant:
- Schneider Electric
Subtotaal (1 eenheid)*
€ 36,63
(excl. BTW)
€ 44,32
(incl. BTW)
Informatie over voorraden is momenteel niet toegankelijk - Controleer het later nog eens opnieuw
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 36,63 |
*prijsindicatie
Better World
Ons Better World assortiment bevat producten die het u gemakkelijk maken om een groenere productkeuze te maken waarop u kunt vertrouwen. Klik hier voor meer informatie.
- RS-stocknr.:
- 211-1646
- Fabrikantnummer:
- CA2KN40B72
- Fabrikant:
- Schneider Electric
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Schneider Electric | |
| Product Type | Control Relay | |
| FLC Motor Rating | 110A | |
| Relay Contact Current | 10A | |
| Series | TeSyS CA | |
| Mount Type | Plate, Rail | |
| Power Rating | 0.05kW | |
| Terminal Type | Screw Clamp | |
| Normal State Configuration | 4 NO | |
| IP Rating | IP2X | |
| Minimum Operating Temperature | -25°C | |
| Width | 45mm | |
| Contact Voltage | 690V | |
| Maximum Operating Temperature | 50°C | |
| Length | 58mm | |
| Depth | 57mm | |
| Standards/Approvals | IEC 60947, VDE 0660 | |
| Better World Product | Yes | |
| Control Voltage | 24V ac | |
| Supply Voltage | 690V | |
| Alles selecteren | ||
|---|---|---|
Merk Schneider Electric | ||
Product Type Control Relay | ||
FLC Motor Rating 110A | ||
Relay Contact Current 10A | ||
Series TeSyS CA | ||
Mount Type Plate, Rail | ||
Power Rating 0.05kW | ||
Terminal Type Screw Clamp | ||
Normal State Configuration 4 NO | ||
IP Rating IP2X | ||
Minimum Operating Temperature -25°C | ||
Width 45mm | ||
Contact Voltage 690V | ||
Maximum Operating Temperature 50°C | ||
Length 58mm | ||
Depth 57mm | ||
Standards/Approvals IEC 60947, VDE 0660 | ||
Better World Product Yes | ||
Control Voltage 24V ac | ||
Supply Voltage 690V | ||
- Land van herkomst:
- FR
The Schneider Electric TeSys is a series of control relay best suited for applications involving all automation applications. The Schneider Electric TeSys K series is a range of reversing or non-reversing contactors with built in suppression.
AC and DC Control circuits available
Consistent connection tightness
Resistance to vibration & temperature cycling
Din or screw fixing
