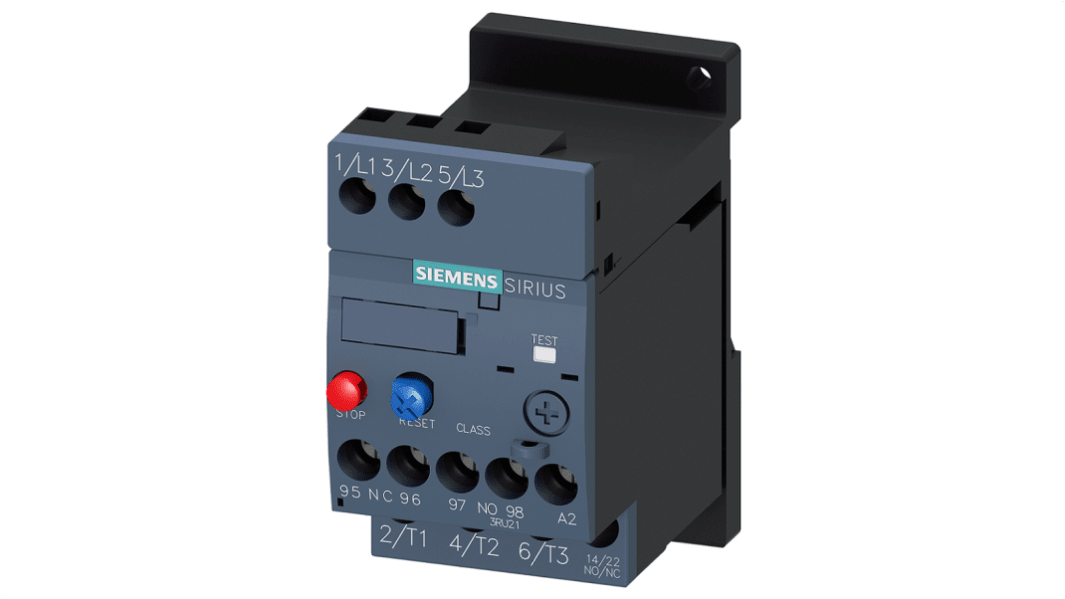

Siemens, SIRIUS 3RU2 Thermal Overload Relay 1 NO/1 NC, 10A F.L.C, 10A Contact Rating, 7.5 kW, 690V ac 3P
- RS-stocknr.:
- 213-1130
- Fabrikantnummer:
- 3RU2116-1JB1
- Fabrikant:
- Siemens
Subtotaal (1 eenheid)*
€ 99,49
(excl. BTW)
€ 120,38
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- 6 stuk(s) klaar voor verzending
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 99,49 |
*prijsindicatie
- RS-stocknr.:
- 213-1130
- Fabrikantnummer:
- 3RU2116-1JB1
- Fabrikant:
- Siemens
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Siemens | |
| Product Type | Thermal Overload Relay | |
| FLC Motor Rating | 10A | |
| Relay Contact Current | 10A | |
| Series | SIRIUS 3RU2 | |
| Mount Type | Stand Alone | |
| Pole and Throw Configuration | 3P | |
| Power Rating | 7.5kW | |
| Normal State Configuration | 1 NO/1 NC | |
| Terminal Type | Screw | |
| Reset Method | Automatic & Manual | |
| IP Rating | IP20 | |
| Adjustable Current Range | 7 → 10 A | |
| Minimum Operating Temperature | -40°C | |
| Width | 45mm | |
| Number of Auxiliary Contacts | 2 | |
| Length | 89mm | |
| Contact Voltage | 690V | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | CCC, CE, IEC 61508, IEC 60068-2-27, IEC 81346-2, IEC 60529, CSA, EAC, UL | |
| Depth | 80mm | |
| Control Voltage | 690V ac | |
| Alles selecteren | ||
|---|---|---|
Merk Siemens | ||
Product Type Thermal Overload Relay | ||
FLC Motor Rating 10A | ||
Relay Contact Current 10A | ||
Series SIRIUS 3RU2 | ||
Mount Type Stand Alone | ||
Pole and Throw Configuration 3P | ||
Power Rating 7.5kW | ||
Normal State Configuration 1 NO/1 NC | ||
Terminal Type Screw | ||
Reset Method Automatic & Manual | ||
IP Rating IP20 | ||
Adjustable Current Range 7 → 10 A | ||
Minimum Operating Temperature -40°C | ||
Width 45mm | ||
Number of Auxiliary Contacts 2 | ||
Length 89mm | ||
Contact Voltage 690V | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals CCC, CE, IEC 61508, IEC 60068-2-27, IEC 81346-2, IEC 60529, CSA, EAC, UL | ||
Depth 80mm | ||
Control Voltage 690V ac | ||
- Land van herkomst:
- DE
Siemens SIRIUS 3RU2 Series Thermal Overload Relay, 10A Contact Current Rating, 4kW/5.5kW/7.5kW Power Rating - 3RU2116-1JB1
This thermal overload relay protects electrical motors from overheating and overcurrent situations. Its durable construction and advanced features offer crucial protection for industrial applications, making it suitable for sectors such as automation, electronics, and mechanical industries, thereby ensuring operational efficiency and reliability.
Features & Benefits
• Manual-automatic reset allowing user flexibility
• Rated at 10 A for effective motor protection
• Designed with screw terminals for secure connections
• Control voltage rated at 690 Vac for versatility
• Equipped with two auxiliary contacts for enhanced functionality
Applications
• Utilised in motor control circuits to prevent damage
• Integrated into automation systems for effective machinery management
• Applied in industrial equipment requiring thermal protection
• Ensures motor performance reliability across various sectors
What is the reset method available for this device?
It features both manual and automatic reset options, allowing for user adaptability.
Can this device handle high ambient temperatures?
Yes, it operates efficiently in temperatures ranging from -40 to +70°C.
How many auxiliary contacts does it have?
The device includes two auxiliary contacts for additional control capabilities.
What type of connection terminals does it utilise?
It uses screw terminals, providing secure and reliable electrical connections.
