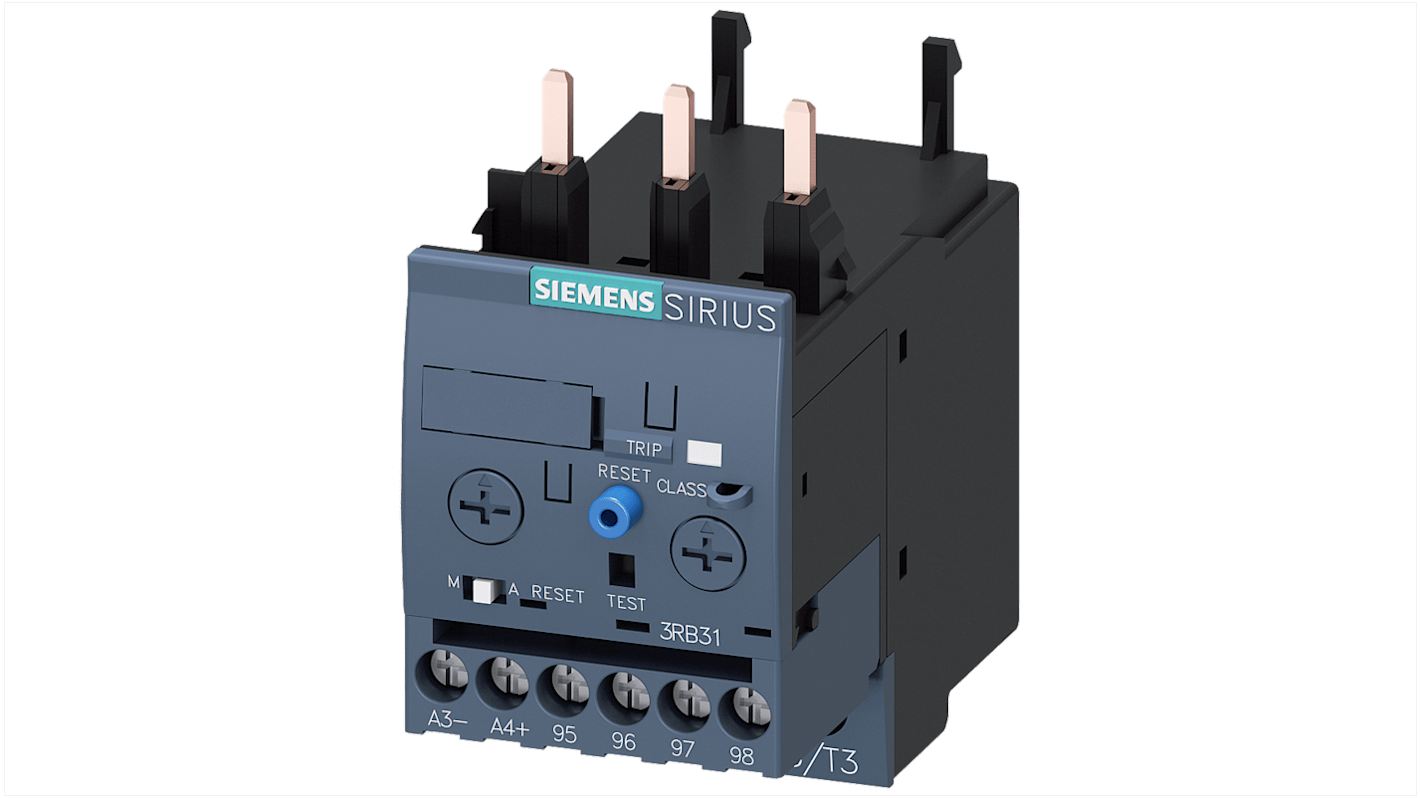

Siemens, 3RB3 Overload Relay 1 NO/1 NC, 12A, 3 A F.L.C, 12A Contact Rating, 5.5 kW, 690V 3
- RS-stocknr.:
- 216-2817
- Fabrikantnummer:
- 3RB3123-4SB0
- Fabrikant:
- Siemens
Subtotaal (1 eenheid)*
€ 246,44
(excl. BTW)
€ 298,19
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Tijdelijk niet op voorraad
- Verzending vanaf 18 mei 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 246,44 |
*prijsindicatie
- RS-stocknr.:
- 216-2817
- Fabrikantnummer:
- 3RB3123-4SB0
- Fabrikant:
- Siemens
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Siemens | |
| Product Type | Overload Relay | |
| FLC Motor Rating | 12, 3A | |
| Relay Contact Current | 12A | |
| Mount Type | Direct | |
| Series | 3RB3 | |
| Power Rating | 5.5kW | |
| Pole and Throw Configuration | 3 | |
| Terminal Type | Screw | |
| Normal State Configuration | 1 NO/1 NC | |
| IP Rating | IP20 | |
| Reset Method | Automatic & Manual | |
| Minimum Operating Temperature | -25°C | |
| Number of Auxiliary Contacts | 2 | |
| Adjustable Current Range | 3 to 12 A | |
| Width | 45mm | |
| Length | 87mm | |
| Maximum Operating Temperature | 60°C | |
| Contact Voltage | 690V | |
| Depth | 84mm | |
| Standards/Approvals | CSA Approved, UL Approved, IEC 81346-2, IEC 61000-4-6, IEC 61000-4-5, IEC 61000-4-4, IEC 61000-4-3, IEC 61000-4-2, IEC 60529, IEC 60068-2-27, EAC Approved, CE Approved, CCC approved | |
| Supply Voltage | 690V | |
| Control Voltage | 690V | |
| Alles selecteren | ||
|---|---|---|
Merk Siemens | ||
Product Type Overload Relay | ||
FLC Motor Rating 12, 3A | ||
Relay Contact Current 12A | ||
Mount Type Direct | ||
Series 3RB3 | ||
Power Rating 5.5kW | ||
Pole and Throw Configuration 3 | ||
Terminal Type Screw | ||
Normal State Configuration 1 NO/1 NC | ||
IP Rating IP20 | ||
Reset Method Automatic & Manual | ||
Minimum Operating Temperature -25°C | ||
Number of Auxiliary Contacts 2 | ||
Adjustable Current Range 3 to 12 A | ||
Width 45mm | ||
Length 87mm | ||
Maximum Operating Temperature 60°C | ||
Contact Voltage 690V | ||
Depth 84mm | ||
Standards/Approvals CSA Approved, UL Approved, IEC 81346-2, IEC 61000-4-6, IEC 61000-4-5, IEC 61000-4-4, IEC 61000-4-3, IEC 61000-4-2, IEC 60529, IEC 60068-2-27, EAC Approved, CE Approved, CCC approved | ||
Supply Voltage 690V | ||
Control Voltage 690V | ||
- Land van herkomst:
- CZ
The Siemens SIRIUS 3RB series is a solid-state overload relay for inverse-time delayed protection of loads with normal and heavy starting against excessive temperature rises due to overload, phase unbalance or phase failure which has a current rating up to 12 A. It has manual or automatic reset switch functionality. It has a size S0. It can be mounted with contactor mounting. The type of electrical connection for main circuit and for auxiliary circuit is through screw type terminal. Due to the wide current setting ranges and various tripping characteristics, complete series of motors are covered with just a few types. It has low heat loss which makes it energy-efficient and help to reduce the temperature rise in the control cabinet.
Ambient operating temperature is -25 to +60 °C
Operating frequency is 50 to 60 Hz
Trip class is CLASS 5E, 10E, 20E and 30E adjustable
