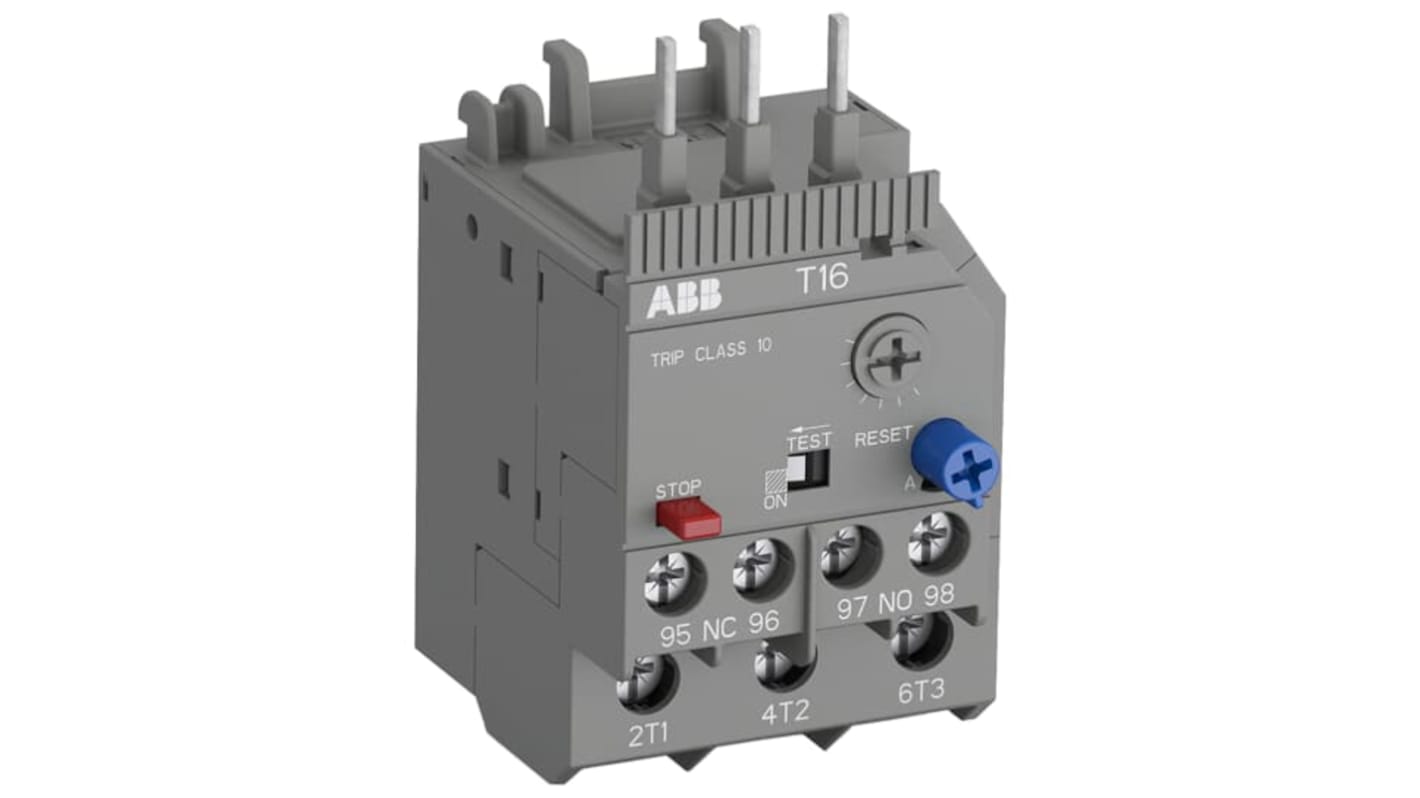

ABB Thermal Overload Relay 1 NO/1 NC, Trip Dial: 0.07 → 0.6 A, 230mA, 310 mA F.L.C, 310mA Contact Rating, 600V dc 3
- RS-stocknr.:
- 231-8960
- Fabrikantnummer:
- 1SAZ711201R1013 T16-0.31
- Fabrikant:
- ABB
Subtotaal (1 doos van 1 eenheid)*
€ 65,85
(excl. BTW)
€ 79,68
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Tijdelijk niet op voorraad
- Verzending vanaf 28 december 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Dozen | Per Doos |
|---|---|
| 1 + | € 65,85 |
*prijsindicatie
- RS-stocknr.:
- 231-8960
- Fabrikantnummer:
- 1SAZ711201R1013 T16-0.31
- Fabrikant:
- ABB
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | ABB | |
| FLC Motor Rating | 230mA, 310mA | |
| Product Type | Thermal Overload Relay | |
| Relay Contact Current | 310mA | |
| Pole and Throw Configuration | 3 | |
| Normal State Configuration | 1 NO/1 NC | |
| IP Rating | IP20 | |
| Reset Method | Automatic & Manual | |
| Adjustable Current Range | 0.07 → 0.6 A | |
| Width | 45mm | |
| Minimum Operating Temperature | -50°C | |
| Number of Auxiliary Contacts | 2 | |
| Length | 76.7mm | |
| Maximum Operating Temperature | 80°C | |
| Contact Voltage | 690V | |
| Standards/Approvals | UL 60947-1, IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1, UL 60947-4-1 | |
| Depth | 53.5mm | |
| Control Voltage | 600V dc | |
| Alles selecteren | ||
|---|---|---|
Merk ABB | ||
FLC Motor Rating 230mA, 310mA | ||
Product Type Thermal Overload Relay | ||
Relay Contact Current 310mA | ||
Pole and Throw Configuration 3 | ||
Normal State Configuration 1 NO/1 NC | ||
IP Rating IP20 | ||
Reset Method Automatic & Manual | ||
Adjustable Current Range 0.07 → 0.6 A | ||
Width 45mm | ||
Minimum Operating Temperature -50°C | ||
Number of Auxiliary Contacts 2 | ||
Length 76.7mm | ||
Maximum Operating Temperature 80°C | ||
Contact Voltage 690V | ||
Standards/Approvals UL 60947-1, IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1, UL 60947-4-1 | ||
Depth 53.5mm | ||
Control Voltage 600V dc | ||
- Land van herkomst:
- DE
The ABB Thermal overload relays are economic electromechanical protection devices for the main circuit. They offer reliable protection for motors in the event of overload or phase failure. The thermal overload relay can make up a compact starting solution together with contactors.
Trip class 10
Adjustable current setting ranges
Overload protection with phase loss sensitivity
Temperature compensation up to +60°C
Automatic or manual reset, sealable
Stop and test function
