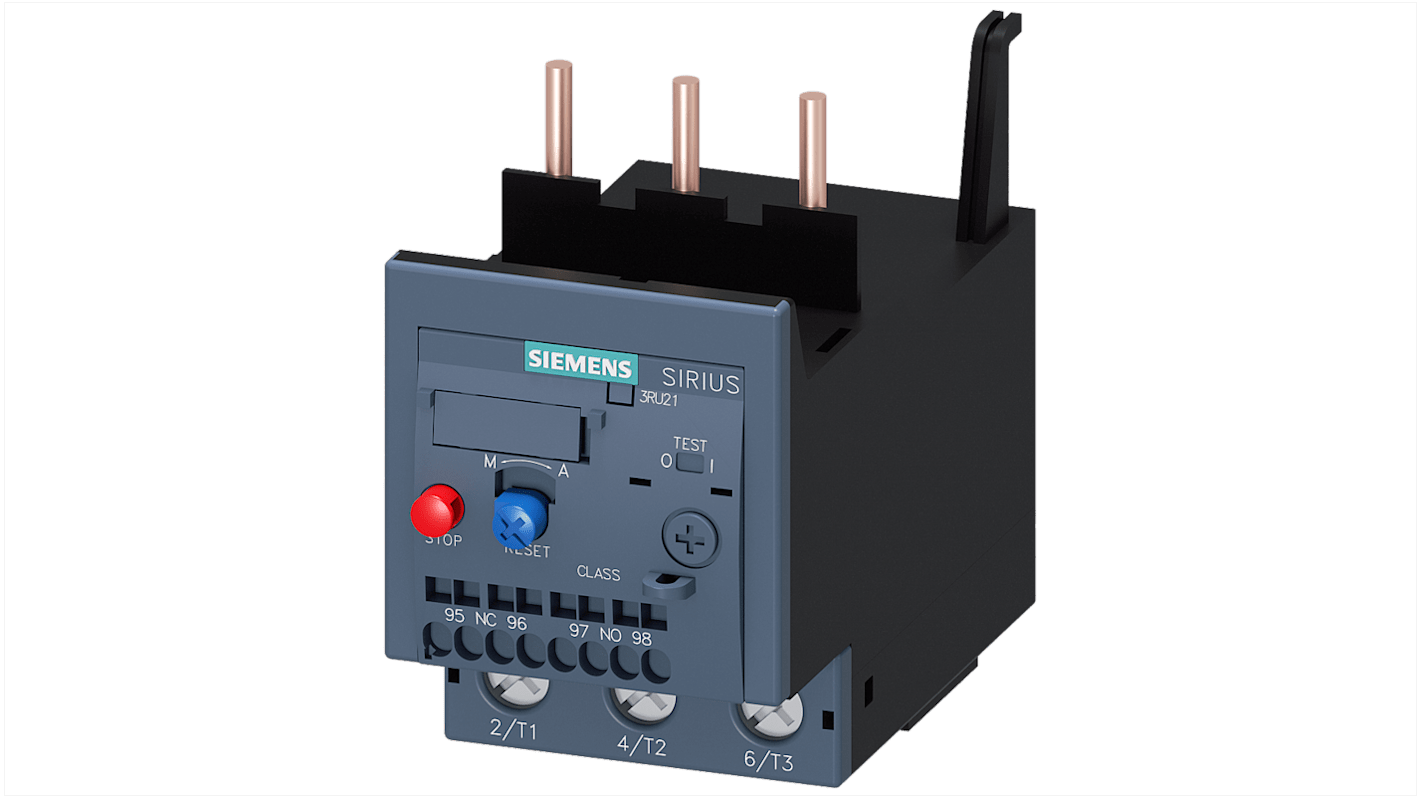

Siemens, 3RB Overload Relay 1 NO/1 NC, 12A F.L.C, 4A Contact Rating, 7.5 kW, 230V 3P
- RS-stocknr.:
- 252-3233
- Fabrikantnummer:
- 3RB30162SE0
- Fabrikant:
- Siemens
Subtotaal (1 eenheid)*
€ 139,38
(excl. BTW)
€ 168,65
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Tijdelijk niet op voorraad
- Verzending vanaf 14 september 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 139,38 |
*prijsindicatie
- RS-stocknr.:
- 252-3233
- Fabrikantnummer:
- 3RB30162SE0
- Fabrikant:
- Siemens
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Siemens | |
| Product Type | Overload Relay | |
| FLC Motor Rating | 12A | |
| Relay Contact Current | 4A | |
| Mount Type | Contactor Mount | |
| Series | 3RB | |
| Power Rating | 7.5kW | |
| Pole and Throw Configuration | 3P | |
| Normal State Configuration | 1 NO/1 NC | |
| Terminal Type | Spring Terminal | |
| IP Rating | IP00, IP20 | |
| Reset Method | Automatic & Manual | |
| Number of Auxiliary Contacts | 2 | |
| Minimum Operating Temperature | -25°C | |
| Width | 87mm | |
| Adjustable Current Range | 3 → 12 A | |
| Maximum Operating Temperature | 60°C | |
| Length | 57mm | |
| Contact Voltage | 690V | |
| Standards/Approvals | CCC, CE, EAC, CSA, RCM | |
| Depth | 90mm | |
| Supply Voltage | 690V | |
| Control Voltage | 230V | |
| Alles selecteren | ||
|---|---|---|
Merk Siemens | ||
Product Type Overload Relay | ||
FLC Motor Rating 12A | ||
Relay Contact Current 4A | ||
Mount Type Contactor Mount | ||
Series 3RB | ||
Power Rating 7.5kW | ||
Pole and Throw Configuration 3P | ||
Normal State Configuration 1 NO/1 NC | ||
Terminal Type Spring Terminal | ||
IP Rating IP00, IP20 | ||
Reset Method Automatic & Manual | ||
Number of Auxiliary Contacts 2 | ||
Minimum Operating Temperature -25°C | ||
Width 87mm | ||
Adjustable Current Range 3 → 12 A | ||
Maximum Operating Temperature 60°C | ||
Length 57mm | ||
Contact Voltage 690V | ||
Standards/Approvals CCC, CE, EAC, CSA, RCM | ||
Depth 90mm | ||
Supply Voltage 690V | ||
Control Voltage 230V | ||
- Land van herkomst:
- CZ
The Siemens Overload relay is used for motor protection. The relay have current capacity of 3 to 12 A. It have size S00, class 20E contactor mounting main circuit, spring-type terminal auxiliary circuit and it is spring-type terminal manual-automatic-reset device.
Surge voltage resistance rated value of 6 kV
Shock resistance 15g / 11 ms
Operating frequency rated value 50 to 60 Hz
Power loss: 0.6 W
