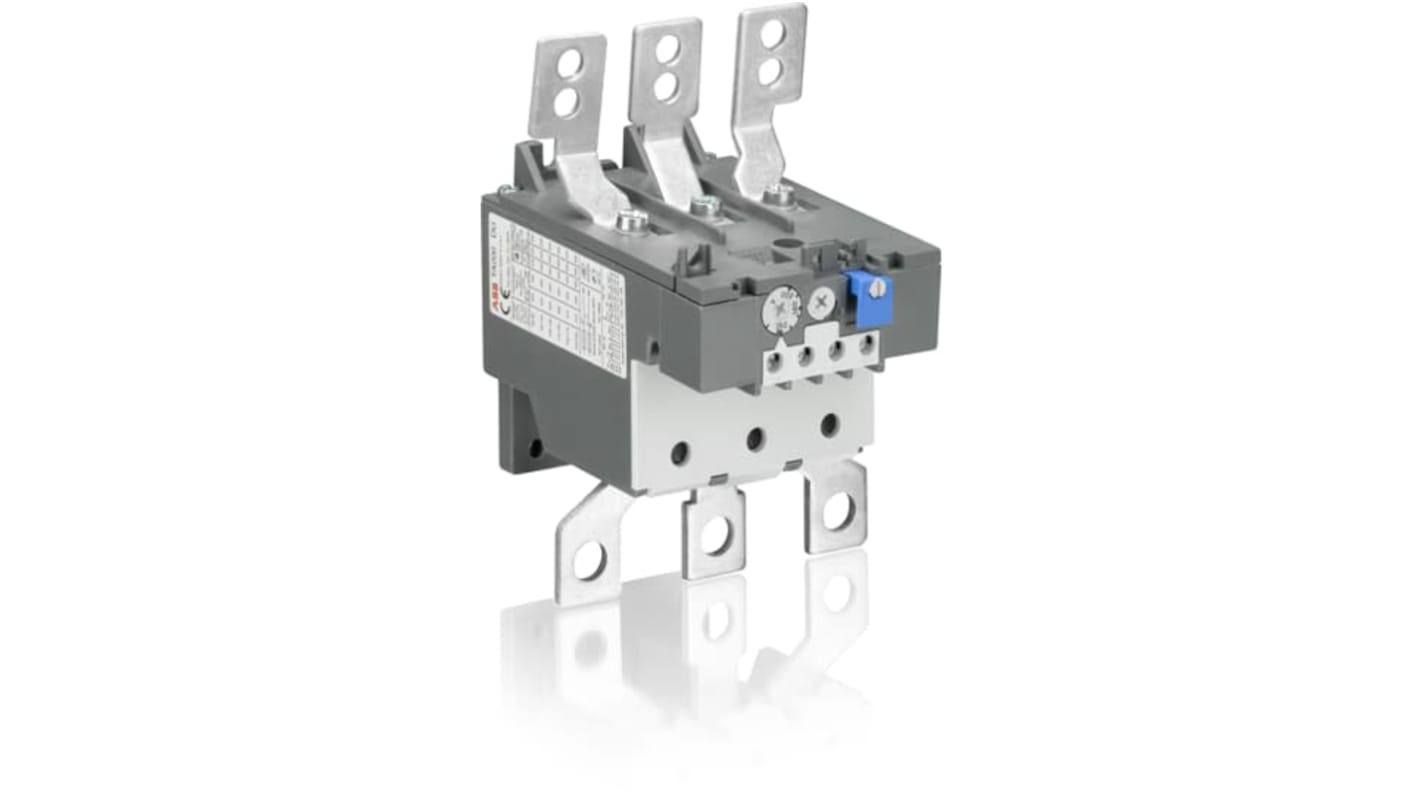

ABB, TA200DU Thermal Overload Relay NO/NC, 100A, 135 A Contact Rating 3
- RS-stocknr.:
- 258-9411
- Fabrikantnummer:
- 1SAZ421301R1003
- Fabrikant:
- ABB
Subtotaal (1 eenheid)*
€ 336,45
(excl. BTW)
€ 407,10
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- Plus verzending 1 stuk(s) vanaf 31 augustus 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 336,45 |
*prijsindicatie
- RS-stocknr.:
- 258-9411
- Fabrikantnummer:
- 1SAZ421301R1003
- Fabrikant:
- ABB
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | ABB | |
| Product Type | Thermal Overload Relay | |
| Relay Contact Current | 100, 135A | |
| Series | TA200DU | |
| Pole and Throw Configuration | 3 | |
| Normal State Configuration | NO/NC | |
| IP Rating | IP20, IP00 | |
| Reset Method | Automatic or Manual | |
| Number of Auxiliary Contacts | 2 | |
| Adjustable Current Range | 100 → 135 A | |
| Width | 104mm | |
| Minimum Operating Temperature | -5°C | |
| Length | 126mm | |
| Contact Voltage | 500V ac | |
| Maximum Operating Temperature | 40°C | |
| Standards/Approvals | UL 60947-4-1, IEC/EN 60947-4-1, IEC/EN 60947-1, UL 60947-1, IEC/EN 60947-5-1 | |
| Depth | 126mm | |
| Supply Voltage | 440, 690V | |
| Alles selecteren | ||
|---|---|---|
Merk ABB | ||
Product Type Thermal Overload Relay | ||
Relay Contact Current 100, 135A | ||
Series TA200DU | ||
Pole and Throw Configuration 3 | ||
Normal State Configuration NO/NC | ||
IP Rating IP20, IP00 | ||
Reset Method Automatic or Manual | ||
Number of Auxiliary Contacts 2 | ||
Adjustable Current Range 100 → 135 A | ||
Width 104mm | ||
Minimum Operating Temperature -5°C | ||
Length 126mm | ||
Contact Voltage 500V ac | ||
Maximum Operating Temperature 40°C | ||
Standards/Approvals UL 60947-4-1, IEC/EN 60947-4-1, IEC/EN 60947-1, UL 60947-1, IEC/EN 60947-5-1 | ||
Depth 126mm | ||
Supply Voltage 440, 690V | ||
- Land van herkomst:
- BG
1SAZ421301R1003
The ABB NFZ contactor relay is used for switching auxiliary and control circuits. NFZ contactor relay include an electronic coil interface accepting a wide control voltage Uc min. to Uc max. It has only four coils cover control voltages between 24 to 250 V 50/60 Hz or 12 to 250 V DC. It can manage large control voltage variations.
Screw terminals
IP20 Protection
