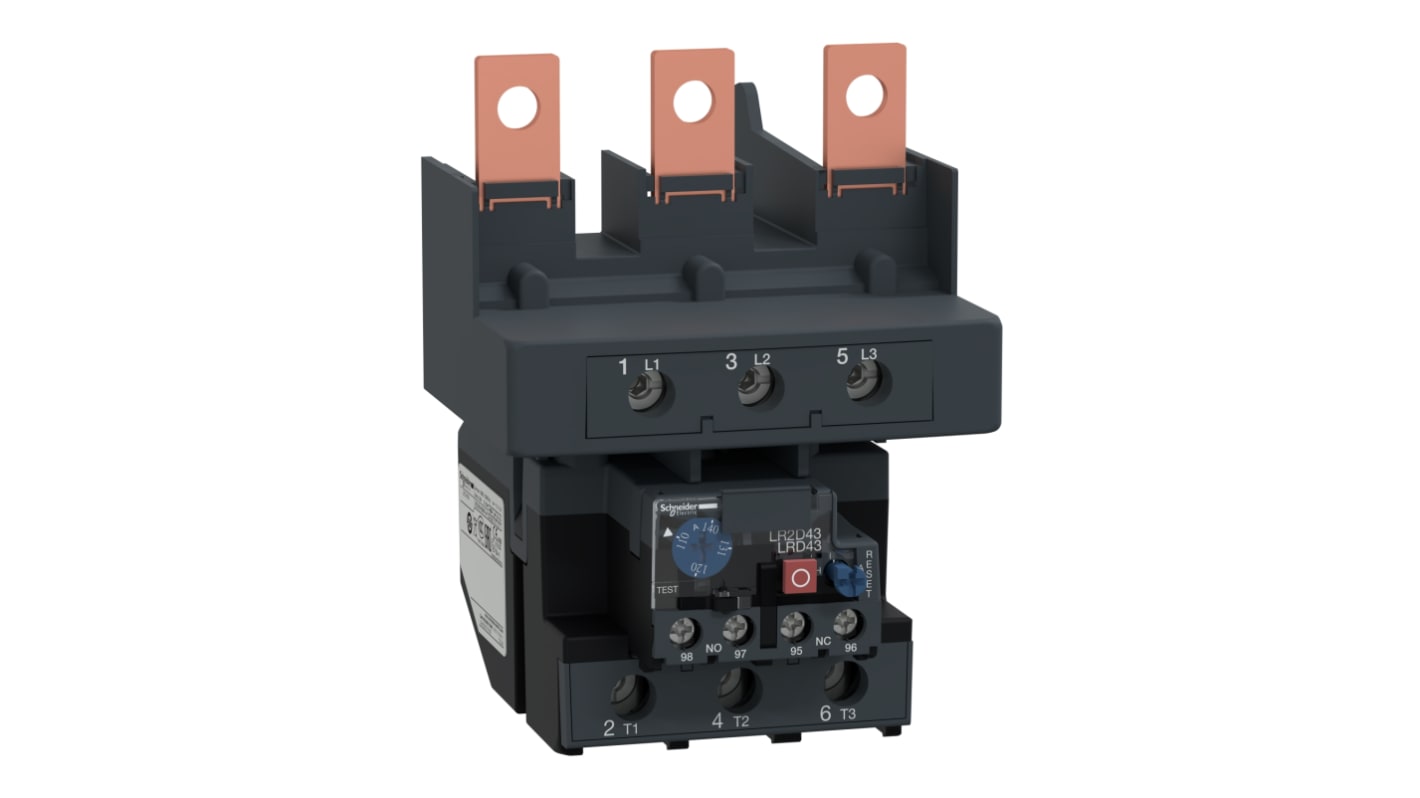

Schneider Electric, TeSys Thermal Overload Relay 1 NO/1 NC, 120mA Contact Rating, 1000V 3
- RS-stocknr.:
- 275-6784
- Fabrikantnummer:
- LRD4369
- Fabrikant:
- Schneider Electric
Subtotaal (1 eenheid)*
€ 317,67
(excl. BTW)
€ 384,38
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
- 6 stuk(s) klaar voor verzending vanaf een andere locatie
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 317,67 |
*prijsindicatie
Ons Better World assortiment bevat producten die het u gemakkelijk maken om een groenere productkeuze te maken waarop u kunt vertrouwen.
Lees meer over de RS Better World producten
- RS-stocknr.:
- 275-6784
- Fabrikantnummer:
- LRD4369
- Fabrikant:
- Schneider Electric
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Schneider Electric | |
| Product Type | Thermal Overload Relay | |
| Relay Contact Current | 120mA | |
| Mount Type | DIN Rail | |
| Series | TeSys | |
| Pole and Throw Configuration | 3 | |
| Normal State Configuration | 1 NO/1 NC | |
| Terminal Type | Screw Terminal | |
| IP Rating | IP20 | |
| Reset Method | Push Button | |
| Minimum Operating Temperature | -20°C | |
| Number of Auxiliary Contacts | 1 | |
| Adjustable Current Range | 110 → 140 A | |
| Contact Voltage | 1V | |
| Maximum Operating Temperature | 60°C | |
| Depth | 132mm | |
| Standards/Approvals | EN/IEC 60947-5-1, GB/T 14048.5, GB/T 14048.4, EN 50495, EN/IEC 60947-4-1 | |
| Better World Product | Yes | |
| Better World Claim | Designed for Disassembly | |
| Control Voltage | 1000V | |
| Supply Voltage | 1V ac | |
| Alles selecteren | ||
|---|---|---|
Merk Schneider Electric | ||
Product Type Thermal Overload Relay | ||
Relay Contact Current 120mA | ||
Mount Type DIN Rail | ||
Series TeSys | ||
Pole and Throw Configuration 3 | ||
Normal State Configuration 1 NO/1 NC | ||
Terminal Type Screw Terminal | ||
IP Rating IP20 | ||
Reset Method Push Button | ||
Minimum Operating Temperature -20°C | ||
Number of Auxiliary Contacts 1 | ||
Adjustable Current Range 110 → 140 A | ||
Contact Voltage 1V | ||
Maximum Operating Temperature 60°C | ||
Depth 132mm | ||
Standards/Approvals EN/IEC 60947-5-1, GB/T 14048.5, GB/T 14048.4, EN 50495, EN/IEC 60947-4-1 | ||
Better World Product Yes | ||
Better World Claim Designed for Disassembly | ||
Control Voltage 1000V | ||
Supply Voltage 1V ac | ||
Vrijgesteld
- Land van herkomst:
- FR
