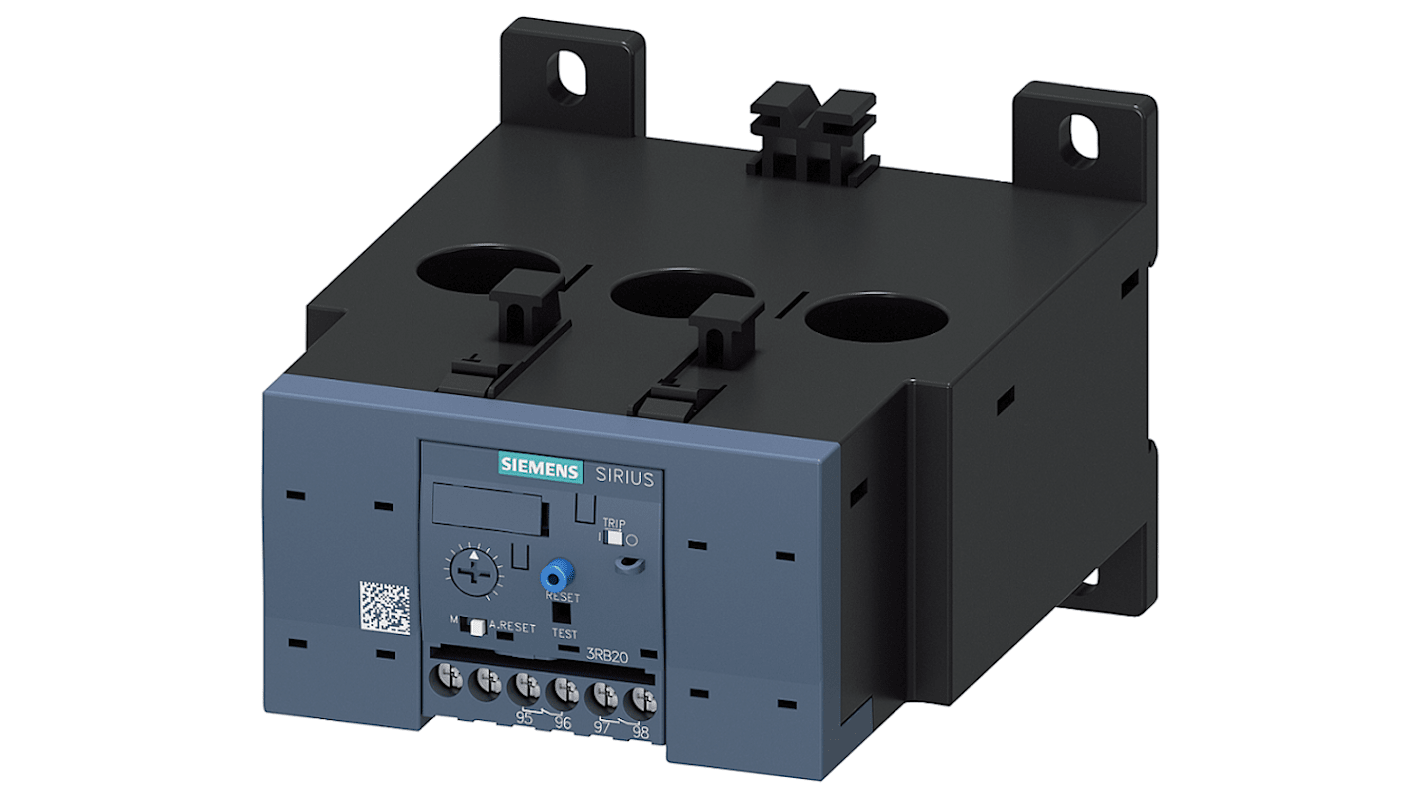

Siemens, 3RB Overload Relay 1 NO/1 NC, 200A F.L.C, 4A Contact Rating, 50 W, 230V ac 3P
- RS-stocknr.:
- 866-5535
- Fabrikantnummer:
- 3RB2056-1FW2
- Fabrikant:
- Siemens
Subtotaal (1 eenheid)*
€ 364,61
(excl. BTW)
€ 441,18
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- Plus verzending 4 stuk(s) vanaf 27 april 2026
- Plus verzending 2 stuk(s) vanaf 27 april 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 364,61 |
*prijsindicatie
- RS-stocknr.:
- 866-5535
- Fabrikantnummer:
- 3RB2056-1FW2
- Fabrikant:
- Siemens
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Siemens | |
| FLC Motor Rating | 200A | |
| Product Type | Overload Relay | |
| Relay Contact Current | 4A | |
| Series | 3RB | |
| Mount Type | Direct | |
| Power Rating | 50W | |
| Pole and Throw Configuration | 3P | |
| Normal State Configuration | 1 NO/1 NC | |
| Terminal Type | Screw | |
| IP Rating | IP20 | |
| Adjustable Current Range | 50 to 200 A | |
| Number of Auxiliary Contacts | 2 | |
| Width | 120mm | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 60°C | |
| Length | 120mm | |
| Contact Voltage | 1kV ac | |
| Depth | 155mm | |
| Standards/Approvals | EAC, IEC 61000-4-5, IEC 61000-4-3, IEC 81346-2, IEC 60529, UL, CCC, CSA, IEC 60068-2-27, IEC 61000-4-6, IEC 61000-4-2, CE, IEC 61000-4-4 | |
| Control Voltage | 230V ac | |
| Alles selecteren | ||
|---|---|---|
Merk Siemens | ||
FLC Motor Rating 200A | ||
Product Type Overload Relay | ||
Relay Contact Current 4A | ||
Series 3RB | ||
Mount Type Direct | ||
Power Rating 50W | ||
Pole and Throw Configuration 3P | ||
Normal State Configuration 1 NO/1 NC | ||
Terminal Type Screw | ||
IP Rating IP20 | ||
Adjustable Current Range 50 to 200 A | ||
Number of Auxiliary Contacts 2 | ||
Width 120mm | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 60°C | ||
Length 120mm | ||
Contact Voltage 1kV ac | ||
Depth 155mm | ||
Standards/Approvals EAC, IEC 61000-4-5, IEC 61000-4-3, IEC 81346-2, IEC 60529, UL, CCC, CSA, IEC 60068-2-27, IEC 61000-4-6, IEC 61000-4-2, CE, IEC 61000-4-4 | ||
Control Voltage 230V ac | ||
- Land van herkomst:
- DE
Siemens 3RB Series Overload Relay, 4A Contact Current Rating, 50W Power Rating - 3RB2056-1FW2
This overload relay is designed to provide effective electrical overload protection in various automation and electrical systems, primarily protecting motors and machinery from damage due to excessive current. Its robust construction ensures functionality in challenging environments, making it essential for professionals in automation and electrical sectors.
Features & Benefits
• Offers automatic, manual, and remote reset options for flexibility
• Includes 2 auxiliary contacts for enhanced functionality
• Operates with a control voltage of 230V AC for efficient performance
• Functions effectively within a temperature range of -25 to +60°C
• Utilises screw terminals for straightforward and secure connections
Applications
• Used in direct contactor relay systems for motor protection
• Ideal for machinery that requires high temperature overload protection
• Suitable for automation setups needing efficient electrical overload protection
• Designed for involving 3 pole relay configurations
How can I reset this device after it trips?
It can be reset automatically, manually, or remotely based on your configuration.
What is the maximum current this device can handle?
It supports a contact current rating of up to 4A.
Can it be used with different types of motors?
Yes, it is compatible with various motor types, providing appropriate overload protection.
