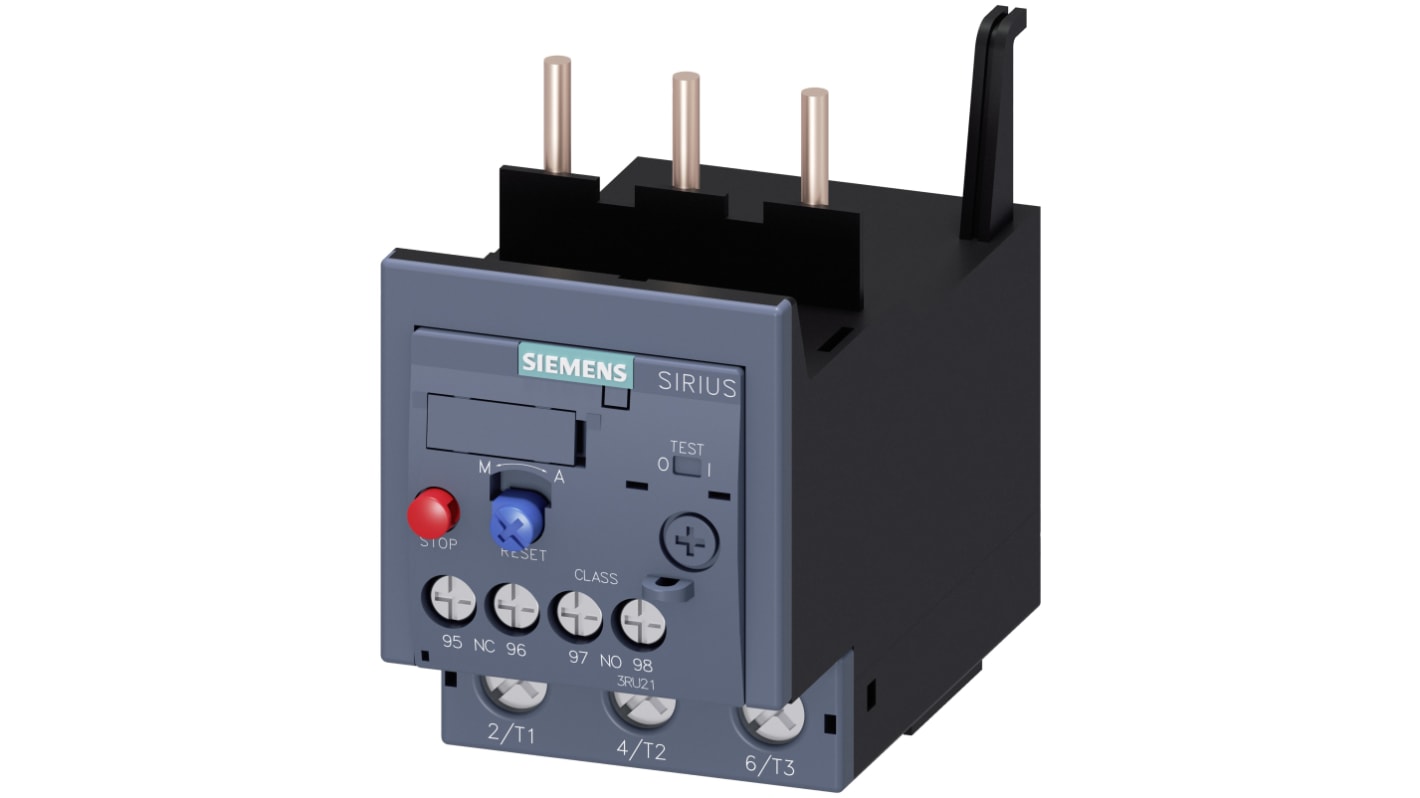

Siemens, SIRIUS 3RU2 Thermal Overload Relay 1 NO/1 NC, 45A F.L.C, 45A Contact Rating 3
- RS-stocknr.:
- 875-1074
- Fabrikantnummer:
- 3RU2136-4GB0
- Fabrikant:
- Siemens
Subtotaal (1 eenheid)*
€ 164,63
(excl. BTW)
€ 199,20
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- 2 stuk(s) klaar voor verzending
- 7 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 164,63 |
*prijsindicatie
- RS-stocknr.:
- 875-1074
- Fabrikantnummer:
- 3RU2136-4GB0
- Fabrikant:
- Siemens
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Siemens | |
| Product Type | Thermal Overload Relay | |
| FLC Motor Rating | 45A | |
| Relay Contact Current | 45A | |
| Series | SIRIUS 3RU2 | |
| Mount Type | Direct | |
| Pole and Throw Configuration | 3 | |
| Normal State Configuration | 1 NO/1 NC | |
| Terminal Type | Screw | |
| Reset Method | Automatic & Manual | |
| IP Rating | IP20 | |
| Width | 76.5mm | |
| Adjustable Current Range | 36 to 45 A | |
| Number of Auxiliary Contacts | 2 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Contact Voltage | 690V ac | |
| Length | 55mm | |
| Depth | 104.2mm | |
| Standards/Approvals | IEC 60068-2-30, EAC Approved, CSA Approved, CE Approved, CCC approved, IEC 81346-2, UL Approved, IEC 60947-5-1, IEC 60529, IEC 61508 | |
| Alles selecteren | ||
|---|---|---|
Merk Siemens | ||
Product Type Thermal Overload Relay | ||
FLC Motor Rating 45A | ||
Relay Contact Current 45A | ||
Series SIRIUS 3RU2 | ||
Mount Type Direct | ||
Pole and Throw Configuration 3 | ||
Normal State Configuration 1 NO/1 NC | ||
Terminal Type Screw | ||
Reset Method Automatic & Manual | ||
IP Rating IP20 | ||
Width 76.5mm | ||
Adjustable Current Range 36 to 45 A | ||
Number of Auxiliary Contacts 2 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Contact Voltage 690V ac | ||
Length 55mm | ||
Depth 104.2mm | ||
Standards/Approvals IEC 60068-2-30, EAC Approved, CSA Approved, CE Approved, CCC approved, IEC 81346-2, UL Approved, IEC 60947-5-1, IEC 60529, IEC 61508 | ||
Vrijgesteld
Overload Relay - 3RU range
Switch position indicator and test function
STOP button
Selector switch for manual/automatic reset
Screw connection or Spring-clamp versions
Impulse voltage resistance 6 kV
Insulation voltage 690V
Surface or DIN-rail stand-alone mounts available, see 706-1699 etc
The 3RU21 thermal overload relays up to 80 A have been designed for current-sensitive protection of loads with normal starting.
These thermal overload relays for use with Sirius Size S0 & S00 Contactors
Note
Screw terminals can only be used with screw terminal overloads and spring terminals can only be used with spring terminal overloads.
Approvals
CE, UL, CSA
