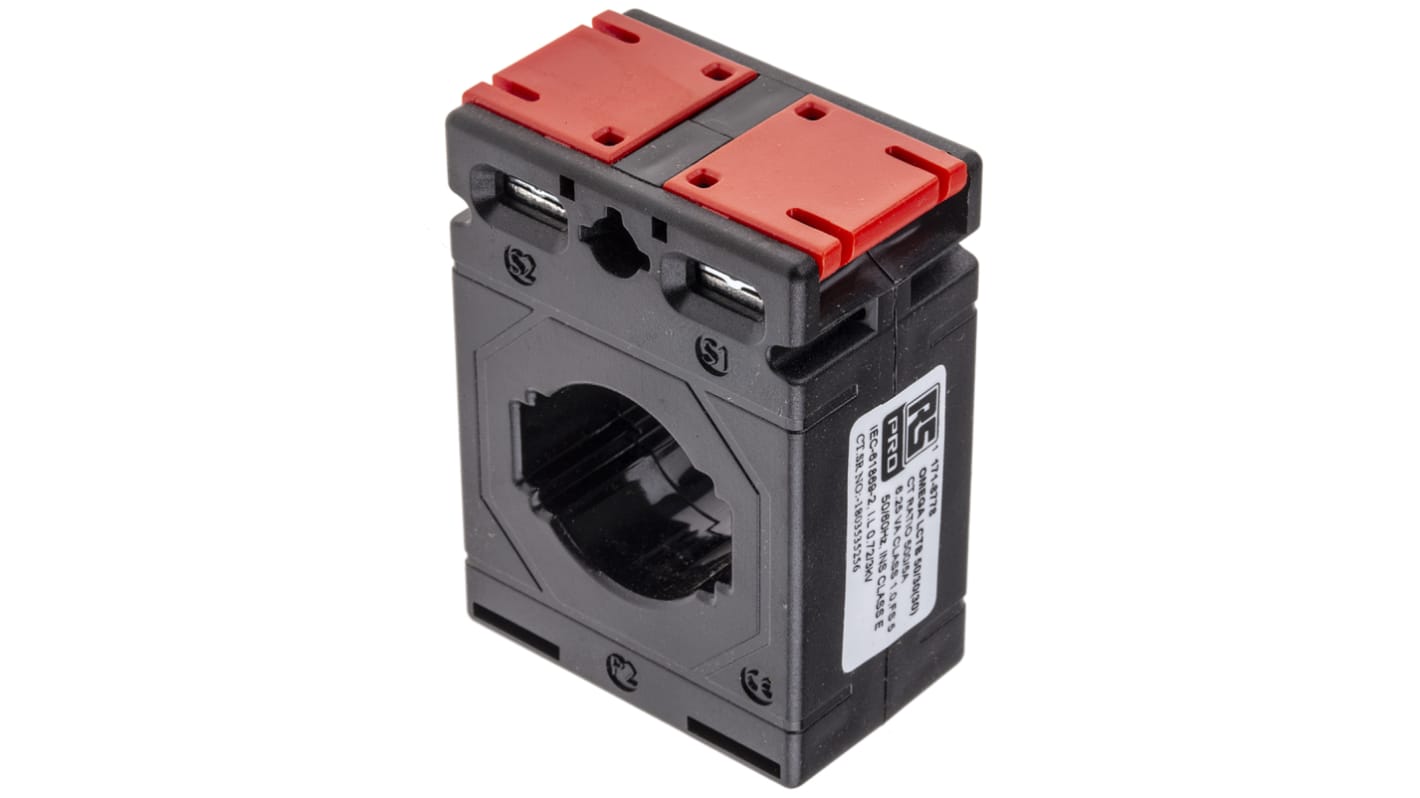

RS PRO LCT Series Current Transformer 500 A 30 x 10 mm Bore
- RS-stocknr.:
- 171-8778
- Fabrikant:
- RS PRO
Bulkkorting beschikbaar
Subtotaal (1 eenheid)*
€ 12,58
(excl. BTW)
€ 15,22
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 75,00
Tijdelijk niet op voorraad
- Verzending 1 stuk(s) vanaf 28 april 2026
- Plus verzending 11 stuk(s) vanaf 04 mei 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 - 4 | € 12,58 |
| 5 - 9 | € 12,07 |
| 10 - 24 | € 11,57 |
| 25 - 49 | € 11,06 |
| 50 + | € 10,57 |
*prijsindicatie
- RS-stocknr.:
- 171-8778
- Fabrikant:
- RS PRO
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | RS PRO | |
| Product Type | Current Transformer | |
| Series | LCT | |
| Secondary Current | 1 to 5 A | |
| Terminal Type | Wire | |
| Primary Current | 500A | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | UL94V-0, IEC 61869-1, IEC 60044-1, IEC 61010-2 | |
| Depth | 31mm | |
| Width | 50 mm | |
| Maximum Operating Frequency | 60Hz | |
| Mount Type | Busbar, Wall, Cable | |
| Bore Size | 30 x 10 mm | |
| Minimum Operating Frequency | 50Hz | |
| Alles selecteren | ||
|---|---|---|
Merk RS PRO | ||
Product Type Current Transformer | ||
Series LCT | ||
Secondary Current 1 to 5 A | ||
Terminal Type Wire | ||
Primary Current 500A | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals UL94V-0, IEC 61869-1, IEC 60044-1, IEC 61010-2 | ||
Depth 31mm | ||
Width 50 mm | ||
Maximum Operating Frequency 60Hz | ||
Mount Type Busbar, Wall, Cable | ||
Bore Size 30 x 10 mm | ||
Minimum Operating Frequency 50Hz | ||
- Land van herkomst:
- IN
CT’s are square type and encapsulated with polycarbonate. These metering CT’s feature sealable terminal covers and a wide range of primary current ratings. Available in various, Bus bar sizes, case widths, and mounting options.
Comprehensive class accuracy
Cost effective moulded case current transformer
Various mounting options including wall mounting, cable mounting, bus bar mounting and DIN rail mounting
Available in 0.2 & 0.2s accuracy class
Wire sealable terminal covers
