Thomson Linear 25.4 mm, 14.2N 4.5 V 8.38mm/s
- RS-stocknr.:
- 197-1078
- Fabrikantnummer:
- MLA08A05-0039P0100-C4-S01
- Fabrikant:
- Thomson Linear
Subtotaal (1 eenheid)*
€ 674,55
(excl. BTW)
€ 816,21
(incl. BTW)
Informatie over voorraden is momenteel niet toegankelijk - Controleer het later nog eens opnieuw
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 674,55 |
*prijsindicatie
- RS-stocknr.:
- 197-1078
- Fabrikantnummer:
- MLA08A05-0039P0100-C4-S01
- Fabrikant:
- Thomson Linear
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Thomson Linear | |
| Product Type | Electrical Linear Actuator | |
| Stroke Length | 25.4mm | |
| Maximum Load | 14.2N | |
| Maximum Speed | 8.38mm/s | |
| Series | MLA | |
| Motor Technology | Stepper Motor | |
| Spindle Type | Lead Screw | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 60°C | |
| Weight | 60g | |
| Standards/Approvals | RoHS | |
| Alles selecteren | ||
|---|---|---|
Merk Thomson Linear | ||
Product Type Electrical Linear Actuator | ||
Stroke Length 25.4mm | ||
Maximum Load 14.2N | ||
Maximum Speed 8.38mm/s | ||
Series MLA | ||
Motor Technology Stepper Motor | ||
Spindle Type Lead Screw | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 60°C | ||
Weight 60g | ||
Standards/Approvals RoHS | ||
- Land van herkomst:
- US

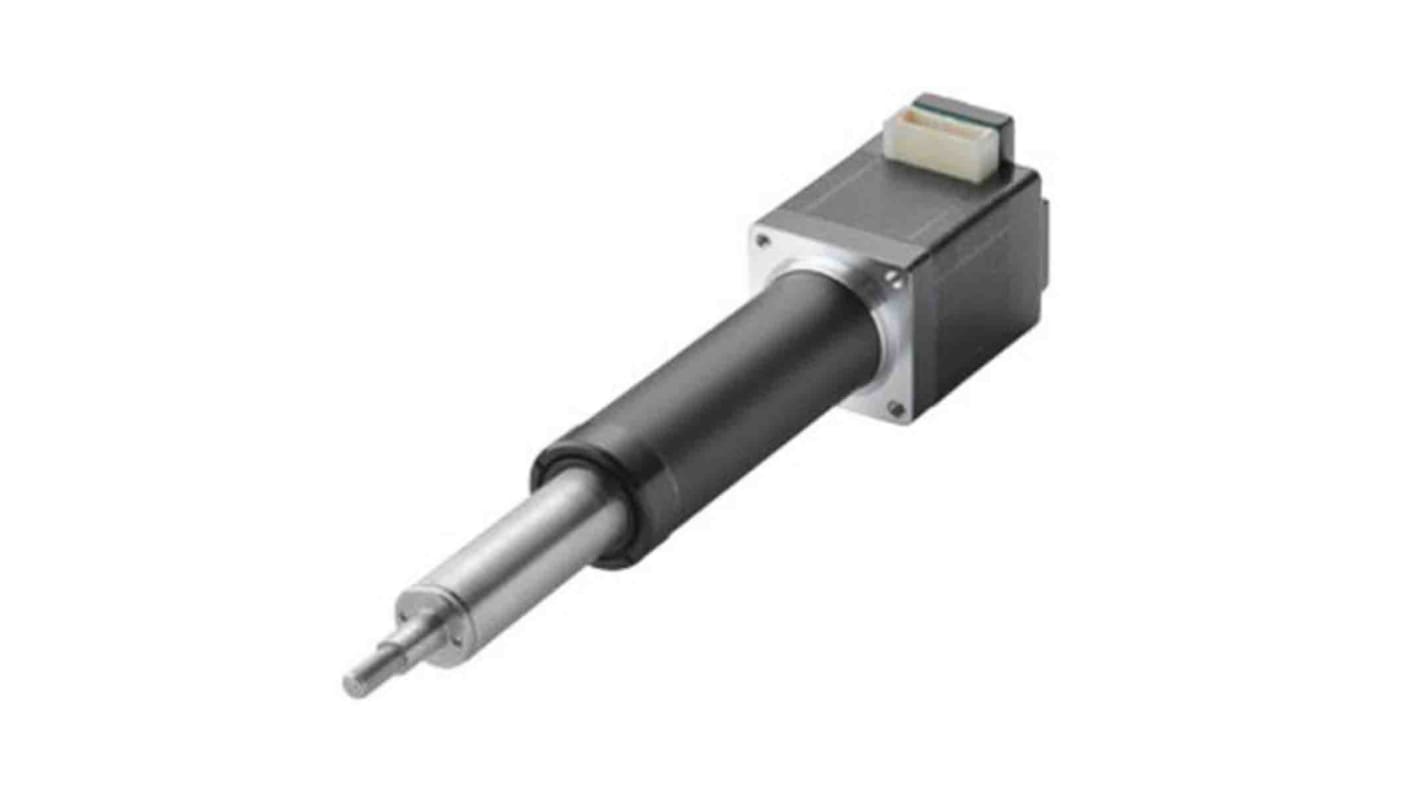

Thomson Linear MLA08A05 is a NEMA 08 size motorized lead screw actuator with single motor stack and 0.5A current rating.
Actuator configurations are able to withstand radial and moment loading due to the bushing design included inside the assembly
Built-in Anti-Rotation
It can withstand a side load of up to 10% of axial capacity of the motor
