Actuonix 50 mm, 200N 6V 8mm/s
- RS-stocknr.:
- 202-0761
- Fabrikantnummer:
- L16-50-150-12-S
- Fabrikant:
- Actuonix
Bulkkorting beschikbaar
Subtotaal (1 eenheid)*
€ 134,08
(excl. BTW)
€ 162,24
(incl. BTW)
Informatie over voorraden is momenteel niet toegankelijk - Controleer het later nog eens opnieuw
Aantal stuks | Per stuk |
|---|---|
| 1 - 4 | € 134,08 |
| 5 - 9 | € 128,71 |
| 10 + | € 123,34 |
*prijsindicatie
- RS-stocknr.:
- 202-0761
- Fabrikantnummer:
- L16-50-150-12-S
- Fabrikant:
- Actuonix
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Actuonix | |
| Product Type | Electrical Linear Actuator | |
| Stroke Length | 50mm | |
| Maximum Load | 200N | |
| Maximum Speed | 8mm/s | |
| Series | L16 | |
| Voltage | 6V | |
| Duty Cycle | 20% | |
| Maximum Force | 200N | |
| IP Rating | IP54 | |
| Minimum Operating Temperature | -10°C | |
| Overall Length Closed | 118mm | |
| Maximum Operating Temperature | 50°C | |
| Weight | 56g | |
| Standards/Approvals | No | |
| Alles selecteren | ||
|---|---|---|
Merk Actuonix | ||
Product Type Electrical Linear Actuator | ||
Stroke Length 50mm | ||
Maximum Load 200N | ||
Maximum Speed 8mm/s | ||
Series L16 | ||
Voltage 6V | ||
Duty Cycle 20% | ||
Maximum Force 200N | ||
IP Rating IP54 | ||
Minimum Operating Temperature -10°C | ||
Overall Length Closed 118mm | ||
Maximum Operating Temperature 50°C | ||
Weight 56g | ||
Standards/Approvals No | ||

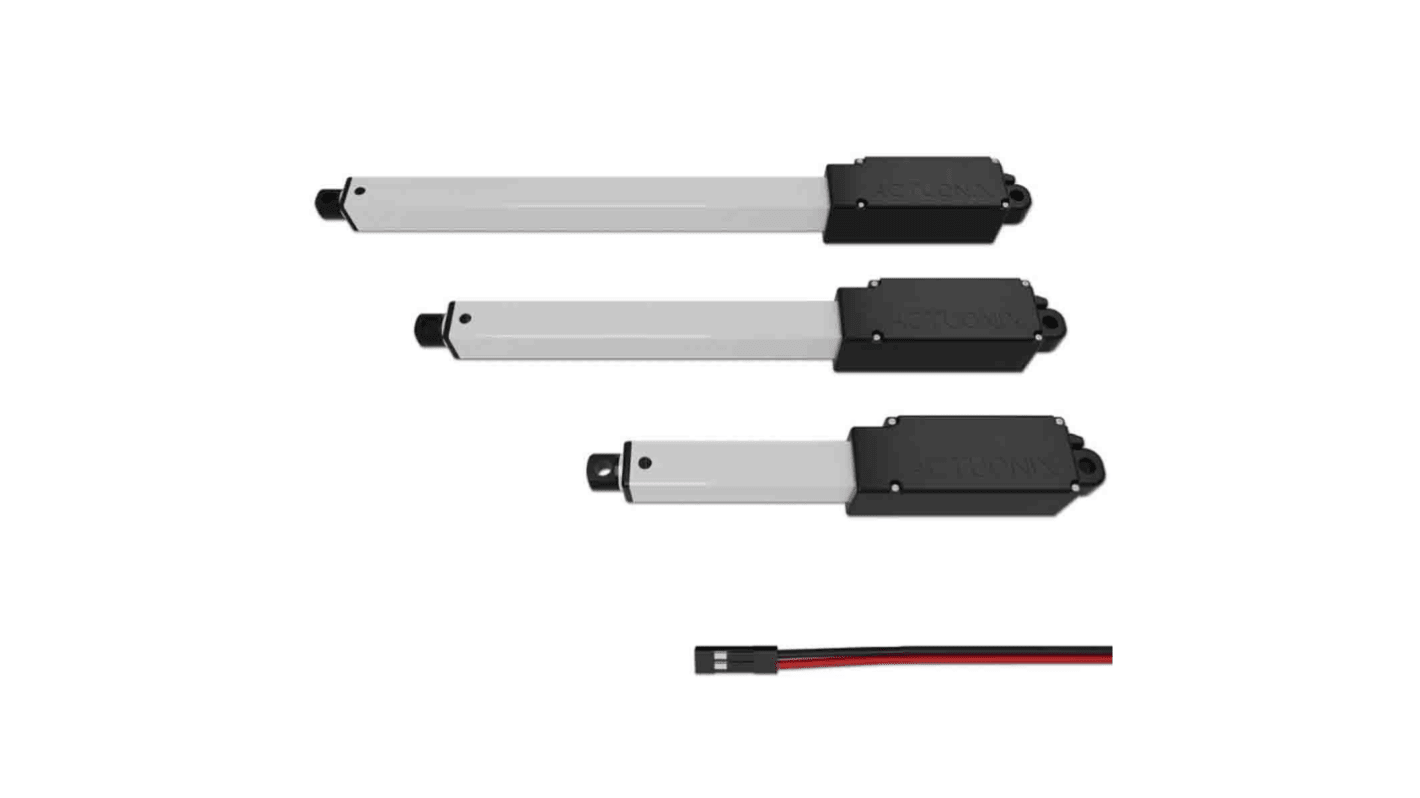

The Actuonix L16-S series miniature linear actuator is designed to push or pull a load along its full stroke length. It is slightly larger and offers a larger motor with 150:1 gearing for heavier loads and faster speeds.
50mm stroke length
Rocker switch, wireless controller, H-bridge circuit controllers
