Festo 200 mm, 10kg, 8083721 24V dc 240mm/s
- RS-stocknr.:
- 203-9780
- Artikelnummer Distrelec:
- 301-86-871
- Fabrikantnummer:
- EGSS-BS-KF-60-200-12P-ST-M-H1-PLK-AA
- Fabrikant:
- Festo
Subtotaal (1 eenheid)*
€ 1.279,03
(excl. BTW)
€ 1.547,63
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Voorradig bij de fabrikant
- Klaar voor verzending vanaf 29 juni 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 1.279,03 |
*prijsindicatie
- RS-stocknr.:
- 203-9780
- Artikelnummer Distrelec:
- 301-86-871
- Fabrikantnummer:
- EGSS-BS-KF-60-200-12P-ST-M-H1-PLK-AA
- Fabrikant:
- Festo
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Festo | |
| Product Type | Electrical Linear Actuator | |
| Stroke Length | 200mm | |
| Maximum Load | 10kg | |
| Maximum Speed | 240mm/s | |
| Voltage | 24V dc | |
| Series | EGSS | |
| Motor Technology | Stepper Motor | |
| Maximum Force | 4937N | |
| Duty Cycle | 100% | |
| IP Rating | IP40 | |
| Spindle Type | Ball Screw | |
| Minimum Operating Temperature | 0°C | |
| Overall Length Closed | 60mm | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | CE mark, RCM mark, KC mark | |
| Weight | 4635g | |
| Alles selecteren | ||
|---|---|---|
Merk Festo | ||
Product Type Electrical Linear Actuator | ||
Stroke Length 200mm | ||
Maximum Load 10kg | ||
Maximum Speed 240mm/s | ||
Voltage 24V dc | ||
Series EGSS | ||
Motor Technology Stepper Motor | ||
Maximum Force 4937N | ||
Duty Cycle 100% | ||
IP Rating IP40 | ||
Spindle Type Ball Screw | ||
Minimum Operating Temperature 0°C | ||
Overall Length Closed 60mm | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals CE mark, RCM mark, KC mark | ||
Weight 4635g | ||
- Land van herkomst:
- DE

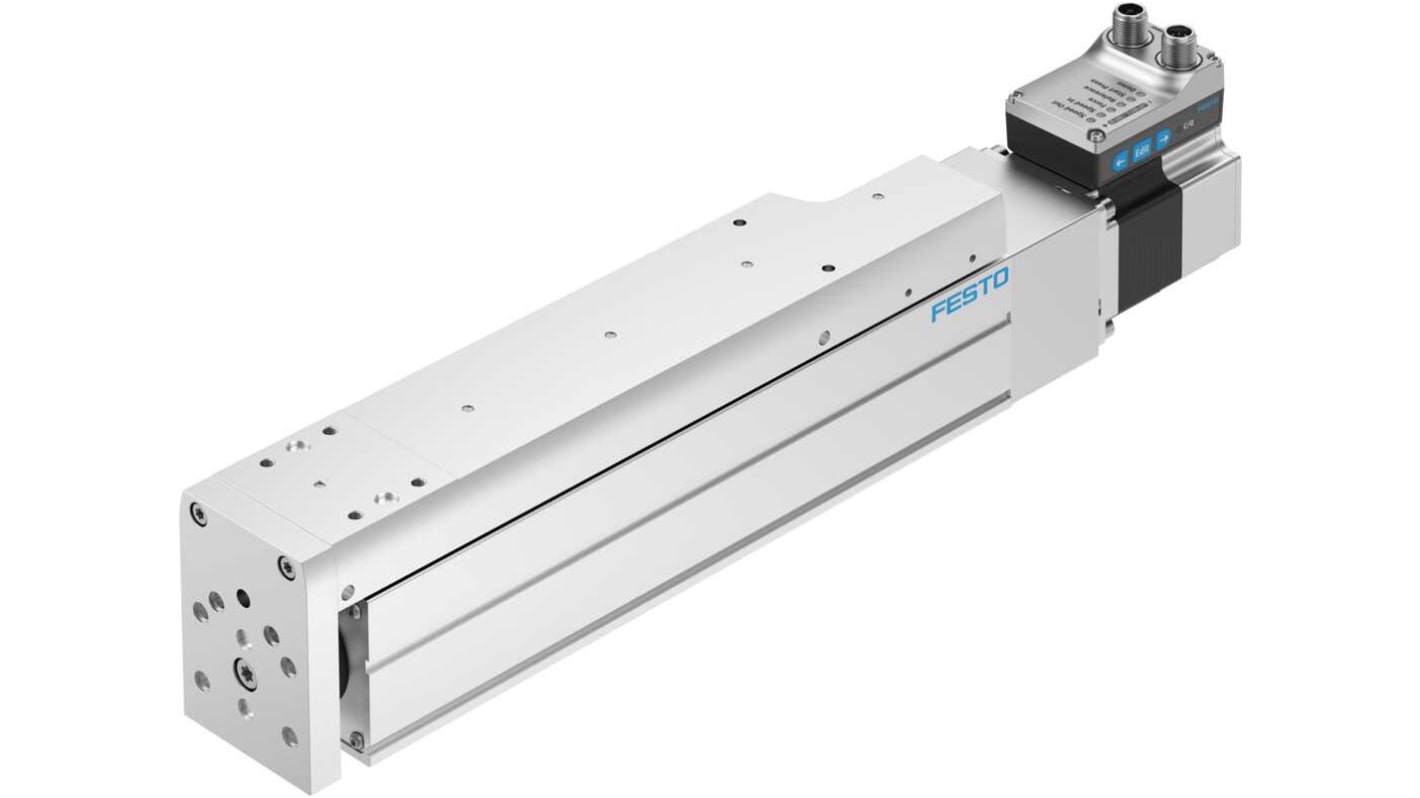

Festo EGSS Series Electric Linear Actuator, IP40, 1 Duty Cycle - EGSS-BS-KF-60-200-12P-ST-M-H1-PLK-AA, Numeric Part Number:8083721
This electric linear actuator provides efficient and precise motion control for various automation applications. Its compact design and high performance make it suitable for sectors such as electronics and mechanical engineering, excelling in environments that demand high speed and durability.
Features & Benefits
• Maximum speed of 240mm/s for rapid operation
• Lifting force of up to 4937N, accommodating challenging tasks
• IP40 rating protects against certain particle ingress, ensuring longevity
• Integrated drive and ball screw technology enhance efficiency
• Operates within a temperature range of 0°C to 50°C for versatile use
• User-friendly interface with LED indicators for easy monitoring
Applications
• Precise positioning in automated assembly lines
• Utilised in packaging machines for efficient product handling
• Suitable for test equipment requiring accurate linear movement
• Employed in robotics for smooth and controlled motion
• Ideal for medical devices reliant on exact actuation
How do I integrate it into existing control systems?
The actuator features a parameterisation interface compatible with IO-Link, facilitating straightforward integration with various control systems.
What maintenance does it require?
With lifetime lubrication, the actuator requires minimal maintenance for prolonged performance.
Can it operate in harsh environments?
It is designed to perform well in environments with temperatures ranging from -20°C to 60°C.
Is it possible to configure the outputs?
Yes, the digital logic outputs are configurable to accommodate specific operational needs.
What should I consider regarding installation?
Ensure adherence to the specified mounting positions and connection types for optimal performance.
