BK Precision 8600 Series Electronic DC Load, 0 to 750 W, 0/120 V, 0 to 120 A

Bekijk alle Electronic Loads

Subtotaal (1 eenheid)*

€ 2.958,29

(excl. BTW)

€ 3.579,53

(incl. BTW)

Add to Basket
selecteer of typ hoeveelheid
Tijdelijk niet op voorraad
  • Verzending vanaf 13 april 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks
Per stuk
1 +€ 2.958,29

*prijsindicatie

RS-stocknr.:
187-5008
Fabrikantnummer:
BK8610
Fabrikant:
BK Precision
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren

Merk

BK Precision

Product Type

Electronic DC Load

Series

8600

Load Type

Programmable

Constant Voltage Mode Range

0/120 V

Constant Current Mode Range

0 to 120 A

Constant Resistance Mode Range

10 to 7500 Ω

Interface Type

RS232, USB

Constant Wattage Mode Range

0 to 750 W

Efficiency

95%

Rack Unit

2U

Operating Modes

Constant Voltage, Constant Current, Constant Resistance, Constant Power

Standards/Approvals

No

Land van herkomst:
CN

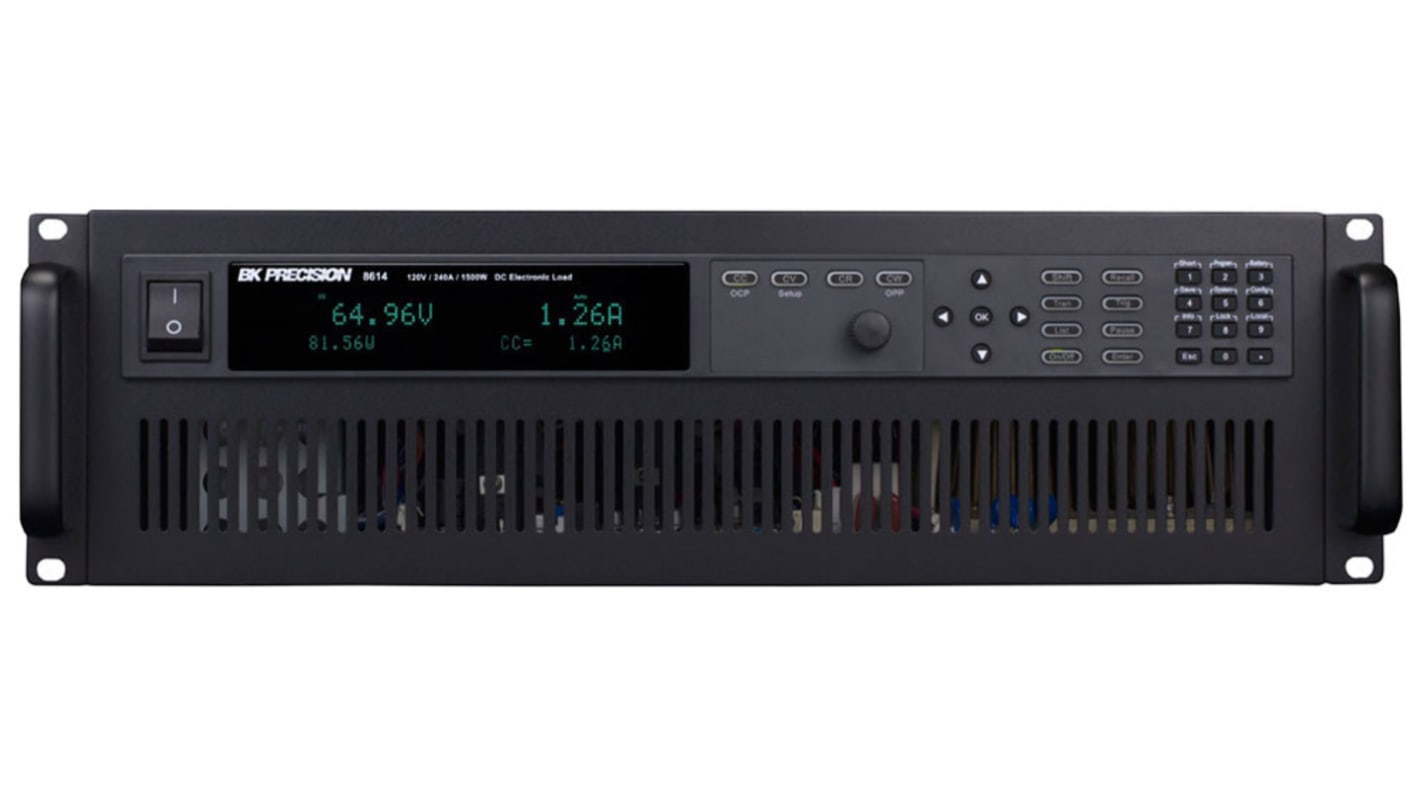

The BK8600 Series programmable DC electronic loads provide the performance of modular system DC electronic loads in a compact benchtop form factor. With fast transient operation speeds up to 25 kHz, and high 16-bit measurement resolution and accuracy, these DC loads can be used for testing and evaluating a variety of DC sources such as DC power supplies, DC-DC converters, batteries, battery chargers, and photovoltaic arrays.

The DC electronic loads can operate in constant current (CC), constant voltage (CV), constant resistance (CR), and constant power (CW) mode. The instrument provides flexible triggering capabilities, analog current control and monitoring, and standard USB (USBTMC-compliant), GPIB, or RS-232 serial interfaces for remote communication.

Features and Benefits.


  • Wide voltage and current range, 0 to 500 V, 0 to 240 A.

  • CC/CV/CR/CW operating modes.

  • Transient mode up to 25 kHz.

  • 16-bit resolution voltage and current measurement.

  • List mode function.

  • Adjustable slew rate in CC mode.

  • Short circuit test.

  • Built-in battery test function with voltage level, capacity level, and timer stop conditions.

  • CR-LED mode to simulate the loading behavior of typical LEDs.

  • Remote voltage sensing to compensate for the effect of voltage drop in wires.

  • Analog current control and monitoring.

  • Standard USB (USBTMC-compliant), RS-232, and GPIB interfaces with SCPI protocol support.

  • OVP/OCP/OPP/OTP and local/remote reverse voltage (LRV/RRV) protection.
