Keysight Technologies EL30000A Series Electronic Load, 350 W, 0 → 150 V, 0 → 60 A

Bekijk alle Electronic Loads

Subtotaal (1 eenheid)*

€ 2.622,00

(excl. BTW)

€ 3.172,62

(incl. BTW)

Add to Basket
selecteer of typ hoeveelheid
Op voorraad
  • Plus verzending 1 stuk(s) vanaf 05 januari 2026
  • Plus verzending 2 stuk(s) vanaf 09 februari 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks
Per stuk
1 +€ 2.622,00

*prijsindicatie

RS-stocknr.:
210-0291
Artikelnummer Distrelec:
301-85-784
Fabrikantnummer:
EL34143A
Fabrikant:
Keysight Technologies
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren

Merk

Keysight Technologies

Series

EL30000A

Load Type

Programmable

Constant Voltage Mode Range

0 → 150 V

Constant Current Mode Range

0 → 60 A

Constant Resistance Mode Range

0.05 Ω to 100 KO

Constant Wattage Mode Range

350 W

Land van herkomst:
MY

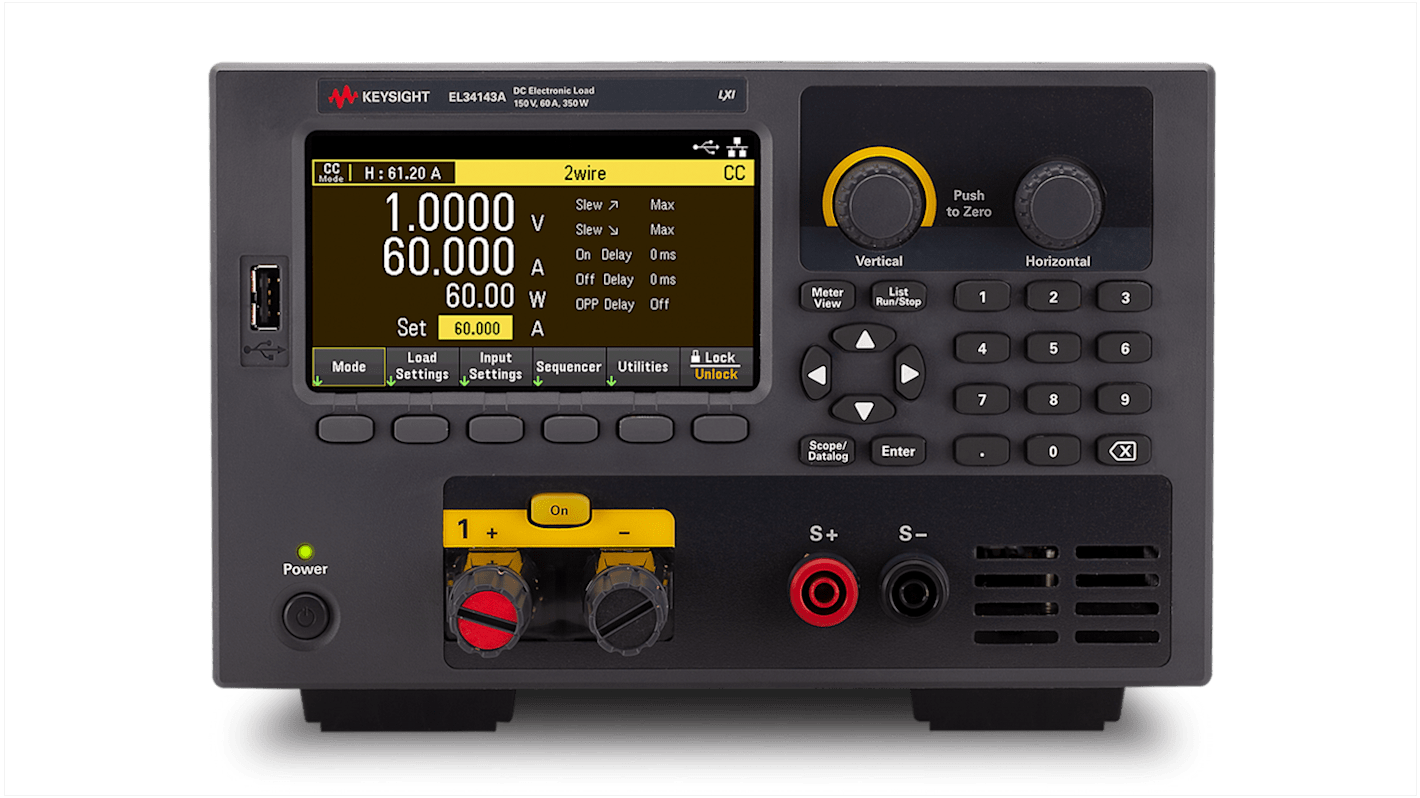

Keysight Technologies Electronic Load, 4.3in Screen Size, Integrated Voltmeter and Ammeter - EL30000A Series - EL34143A


Put your power sources to the test with this benchtop electronic load from Keysight Technologies. You can use it to test everything from batteries and solar panels to power converters. For versatility, its operating modes include constant current from 0 to 60A, constant voltage from 0 to 150V, constant resistance from 0.05Ω to 100KΩ and constant power up to 350W. This device has built-in USB and LAN connectivity, making it a cinch to transfer data to a computer.

Features & Benefits


• Wide operating temperature range between 0°C and +40°C for use in demanding environments
• Remote sense technology minimises the risk of voltage drops for accurate readings
• Compact dimensions of 144.85 (H) x 215.9 (W) x 476.01mm (D) to take up minimal space in your setup
• Adjustable sample rate between 20μs and 60s for ease of data logging

Applications


• Aerospace engineering
• Fuel cell manufacturing
• Solar panels

How can I analyse my results?


The 4.3-inch colour screen means you can read and analyse your results with ease. You can also export data as a .csv file for analysis.

Note

Manufacturer’s Warranty
