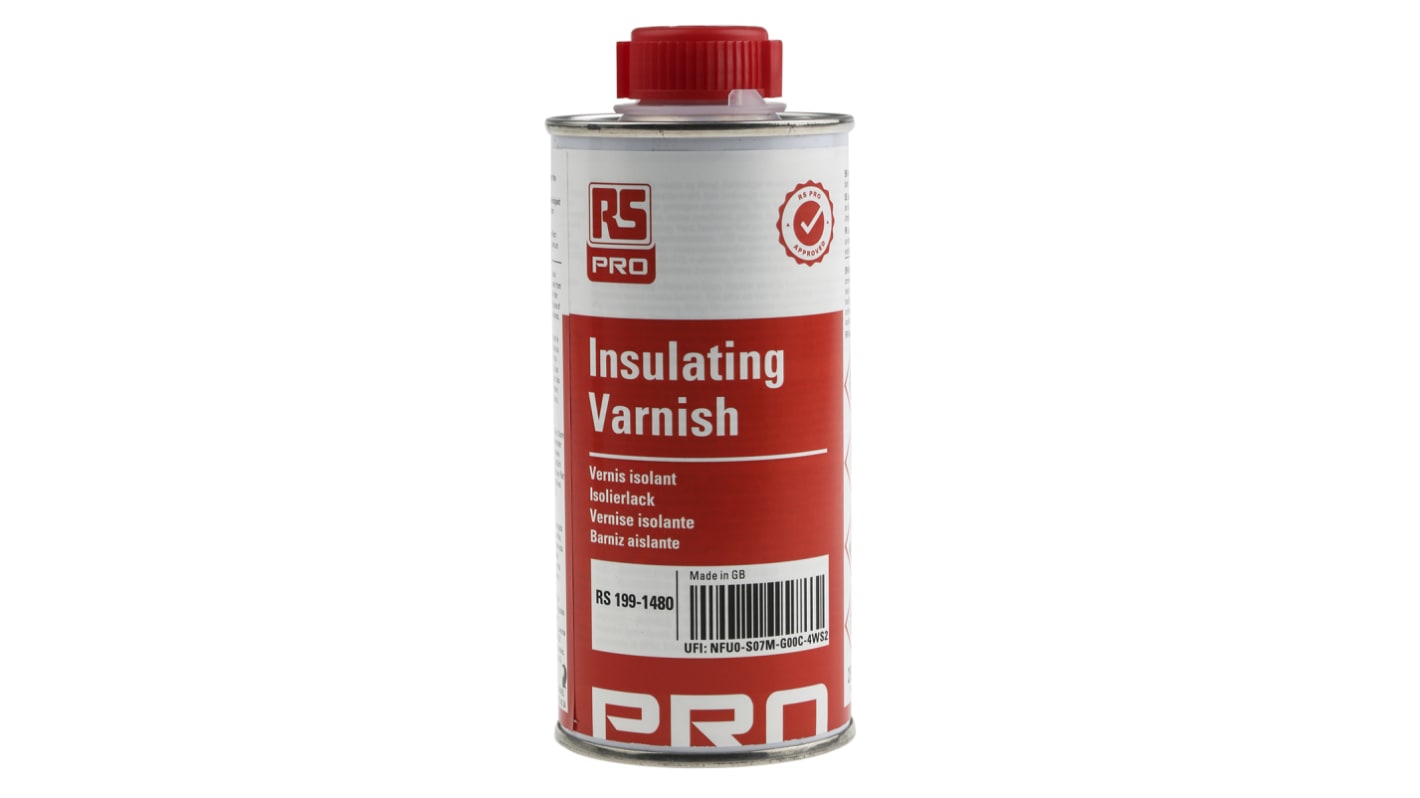

RS PRO Clear Acrylic Resin PCB Coating for PCB, Transformer, Component
- RS-stocknr.:
- 199-1480
- Fabrikant:
- RS PRO
Niet beschikbaar
RS heeft dit product niet meer op voorraad.
Alternatief
Dit product is momenteel niet beschikbaar. Hierbij onze aanbeveling voor een alternatief product.
Per stuk
€ 11,94
(excl. BTW)
€ 14,45
(incl. BTW)
- RS-stocknr.:
- 199-1480
- Fabrikant:
- RS PRO
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | RS PRO | |
| Product Type | PCB Coating | |
| Colour | Clear | |
| Application | PCB, Transformer, Component | |
| Product Form | Liquid | |
| Maximum Operating Temperature | 120°C | |
| Package Type | Tin | |
| Base Material | Acrylic Resin | |
| Dielectric Strength | 60kV/mm | |
| Package Size | 250 ml | |
| Minimum Operating Temperature | -55°C | |
| Standards/Approvals | No | |
| Alles selecteren | ||
|---|---|---|
Merk RS PRO | ||
Product Type PCB Coating | ||
Colour Clear | ||
Application PCB, Transformer, Component | ||
Product Form Liquid | ||
Maximum Operating Temperature 120°C | ||
Package Type Tin | ||
Base Material Acrylic Resin | ||
Dielectric Strength 60kV/mm | ||
Package Size 250 ml | ||
Minimum Operating Temperature -55°C | ||
Standards/Approvals No | ||
- Land van herkomst:
- GB
RS PRO Clear Can PCB Coating Components, PCBs, Transformers
RS PRO’s clear insulating varnish provides a robust coating specifically designed for the protection of electronic circuitry. The varnish dries to form a protective barrier against chemicals and dust, as well as extreme temperatures and moisture – all of which can be hazardous to electronic components.
Tough yet flexible, this modified polyurethane conformal coating features high abrasion resistance and excellent mechanical and dielectric properties. The PCB coating can be sprayed, dipped or applied with a brush and is solvent resistant, even when cured at room temperature. The clear amber liquid dries to form a transparent film that has superior adhesion over a wide temperature range of -55°C to +120°C.
By covering and protecting the leads of electronic components, solder joints and exposed traces from corrosion, this air drying insulating varnish extends the working life of printed circuit boards. It can also be used for insulating and protecting transformers and wound components.
Features and Benefits
• Clear insulating varnish
• Supplied in a 250 ml can
• Touch dry within 45 minutes
• Operating temperature range of -55°C to +120°C
• Dielectric strength of 60 kV/mm
• Surface insulation resistance of 1 x 1013 Ω
• RoHS-2 (Restriction of Hazardous Substances) compliant
• Meets BS5917 and Interim Defence Standards 59-47 issue 3 requirements
• Meets MIL-1-46058C approval for moisture resistance
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
