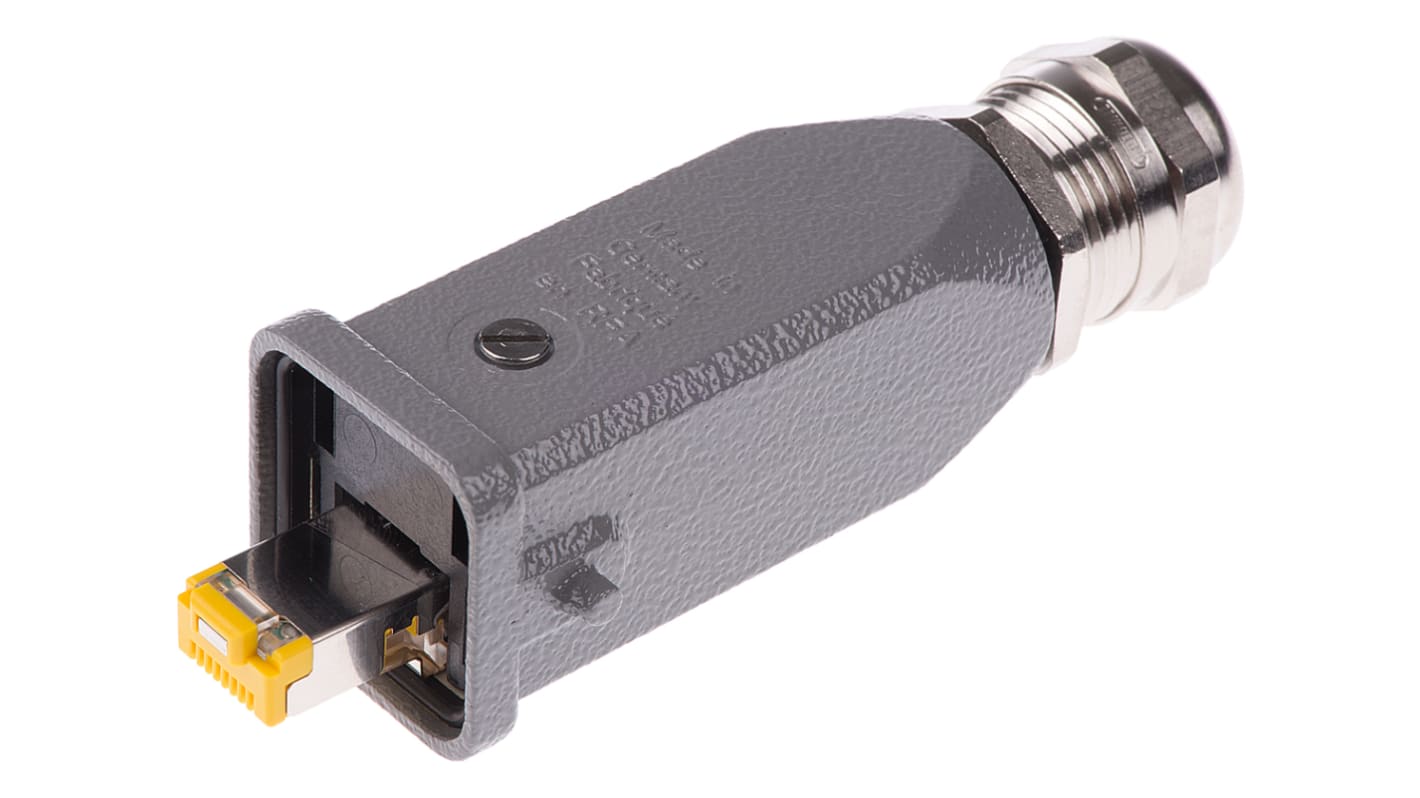

HARTING 9451 Series RJ45 Connector Male, Cable, Cat6 Shielded Straight 1 Port 8 Way
- RS-stocknr.:
- 714-8550
- Artikelnummer Distrelec:
- 110-42-591
- Fabrikantnummer:
- 09451151560
- Fabrikant:
- HARTING
Bulkkorting beschikbaar
Bekijk bulkkortingSubtotaal (1 eenheid)*
€ 55,94
(excl. BTW)
€ 67,69
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- 100 stuk(s) klaar voor verzending
- 129 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 - 9 | € 55,94 |
| 10 - 49 | € 52,64 |
| 50 - 99 | € 47,72 |
| 100 - 249 | € 45,07 |
| 250 + | € 43,79 |
*prijsindicatie
- RS-stocknr.:
- 714-8550
- Artikelnummer Distrelec:
- 110-42-591
- Fabrikantnummer:
- 09451151560
- Fabrikant:
- HARTING
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | HARTING | |
| Product Type | RJ45 Connector | |
| Ethernet Connector Type | RJ45 | |
| LAN Category | Cat6 | |
| Mount Type | Cable | |
| Number of Ports | 1 | |
| Number of Ways | 8 | |
| Connector Gender | Male | |
| Connector Type | Plug | |
| Shield Type | Shielded | |
| Orientation | Straight | |
| IP Rating | IP65, IP67 | |
| LED | No | |
| Termination Type | IDC | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Hazardous Area Certification | No | |
| Length | 28.3mm | |
| Width | 35.3mm | |
| Series | 9451 | |
| Standards/Approvals | PROFINET RoHS Compliant, ODVA specification RoHS Compliant, IEC/PAS 61076-3-117 RoHS Compliant, IEC 61076-3-106 RoHS Compliant, EtherNet/IP RoHS Compliant, EIA/TIA-568/B RoHS Compliant, EIA/TIA-568/A RoHS Compliant, AIDA | |
| Contact Plating | Gold over Nickel | |
| Alles selecteren | ||
|---|---|---|
Merk HARTING | ||
Product Type RJ45 Connector | ||
Ethernet Connector Type RJ45 | ||
LAN Category Cat6 | ||
Mount Type Cable | ||
Number of Ports 1 | ||
Number of Ways 8 | ||
Connector Gender Male | ||
Connector Type Plug | ||
Shield Type Shielded | ||
Orientation Straight | ||
IP Rating IP65, IP67 | ||
LED No | ||
Termination Type IDC | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Hazardous Area Certification No | ||
Length 28.3mm | ||
Width 35.3mm | ||
Series 9451 | ||
Standards/Approvals PROFINET RoHS Compliant, ODVA specification RoHS Compliant, IEC/PAS 61076-3-117 RoHS Compliant, IEC 61076-3-106 RoHS Compliant, EtherNet/IP RoHS Compliant, EIA/TIA-568/B RoHS Compliant, EIA/TIA-568/A RoHS Compliant, AIDA | ||
Contact Plating Gold over Nickel | ||
Harting HAN 3A RJ45 Series RJ45 Connector, Cat6 LAN Category, IP65/IP67 - 09451151560
This RJ45 connector is a straight, cable-mounted male plug designed for industrial Ethernet links, offering shielded Cat6 performance in harsh environments. It provides secure network connections for automation and electrical systems where environmental protection and high data rates are required.
Features & Benefits
• 10G data rate supports high-speed Ethernet networks
• IP65 and IP67 protection enables outdoor and wash‑down use
• Gold‑over‑nickel contacts reduce corrosion and enhance conductivity
• Fully shielded 360° contact limits electromagnetic interference
• IDC 8‑way termination allows rapid, tool‑assisted cable assembly
• Operating range −40°C to 70°C maintains performance in temperature extremes
• IP65 and IP67 protection enables outdoor and wash‑down use
• Gold‑over‑nickel contacts reduce corrosion and enhance conductivity
• Fully shielded 360° contact limits electromagnetic interference
• IDC 8‑way termination allows rapid, tool‑assisted cable assembly
• Operating range −40°C to 70°C maintains performance in temperature extremes
**Applications**
• Suitable for PROFINET industrial networking installations
• Ideal for EtherNet/IP‑based machine‑to‑machine links
• Used for fieldbus interfaces in factory automation cabinets
• Suitable for rugged outdoor CCTV and control signalling
• Used with PoE devices across industrial sites
• Ideal for EtherNet/IP‑based machine‑to‑machine links
• Used for fieldbus interfaces in factory automation cabinets
• Suitable for rugged outdoor CCTV and control signalling
• Used with PoE devices across industrial sites
What cable sizes can be terminated with this connector?
It accepts stranded conductors 0.1–0.32 mm² and solid conductors 0.22–0.32 mm², with wire outer diameters up to 1.6 mm.
How does the connector cope with mechanical stress and vibration?
It meets vibration and shock criteria including 10–500 Hz at 5 g and IEC 61373 Category 1 Class B shock resistance for rail and mobile applications.
What materials are used for the housing to withstand industrial use?
The hood is MADE from zinc die‑cast metal with a grey finish to provide mechanical robustness and electromagnetic screening.
What contents are supplied in the product pack to aid installation?
The pack includes the connector insert, hood, cable gland and assembly instructions for on‑site termination.
Which approvals or specifications are relevant for industrial networking?
It conforms to multiple industry specifications including PROFINET and EtherNet/IP‑related RoHS standards and carries recognised safety listings for electrical connectors.
