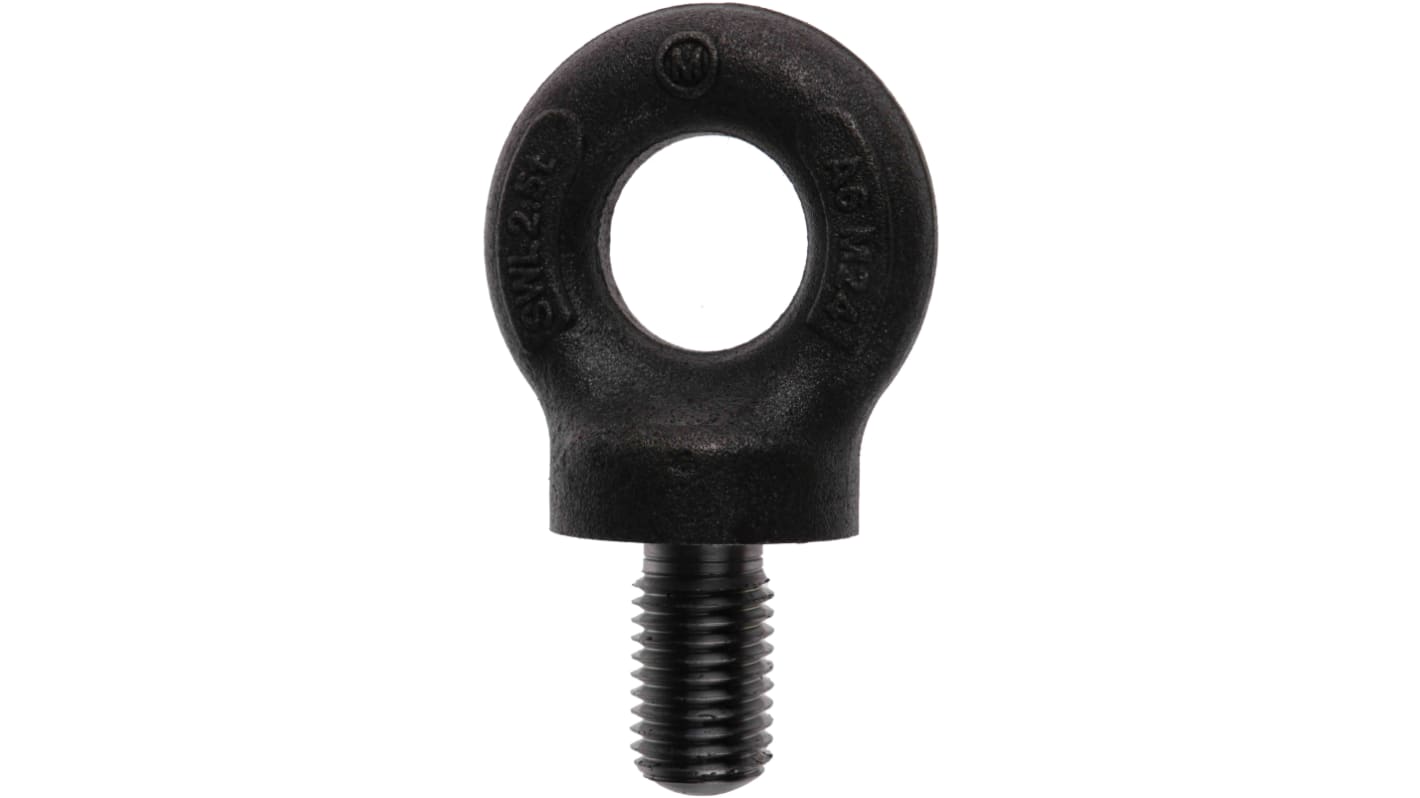

RS PRO Carbon Steel Eye Bolt, M24 Thread, 40 mm Thread Length, 77 mm, 2.5 t Load

RS-stocknr.:: 673-670
Fabrikant:: RS PRO

RS PRO Carbon Steel Eye Bolt, M24 Thread, 40 mm Thread Length, 77 mm, 2.5 t Load

Subtotaal (1 eenheid)*

€ 27,70

(excl. BTW)

€ 33,52

(incl. BTW)

GRATIS bezorging voor bestellingen van meer dan € 90,00

Op voorraad

Plus verzending 133 stuk(s) vanaf 09 september 2026
Plus verzending 72 stuk(s) vanaf 23 september 2026

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Aantal stuks	Per stuk
1 +	€ 27,70

*prijsindicatie

RS-stocknr.:: 673-670
Fabrikant:: RS PRO

Specificaties

Datasheets

Wetgeving en compliance

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	RS PRO
	Thread Size	M24
	Product Type	Eye Bolt
	Thread Length	40mm
	Working Load Limit	2.5t
	Material	Carbon Steel
	Eye Outside Diameter	77mm
	Standards/Approvals	No

Vrijgesteld

Land van herkomst:: GB

RS PRO Eye Bolts

These Eye Bolts from our own RS PRO brand are intended for linear pulling loads in the direction of the thread.

Features and Benefits

• Galvanised steel construction

• Easy to inspect for damage

• Shock absorbing

• High resistance to abrasion

• Fatigue rated at 1 – ½ times the working load limit at 20 000 cycles

• UNC (unified coarse pitch) thread

Applications

These Eye Bolts are suitable for wide variety of applications such as tensioning wires, securing loads and lifting applications.

Not intended for use where the load is perpendicular to the thread. This is because in these instances the bolt could unscrew and move, or it could be twisted and break.

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Note

When lifting, two or more eyebolts should be used. Safe working load detailed in 'dimensions' table;
Not intended for use where the load is perpendicular to the thread. This is because in these instances the bolt could unscrew and move, or it could be twisted and break.
