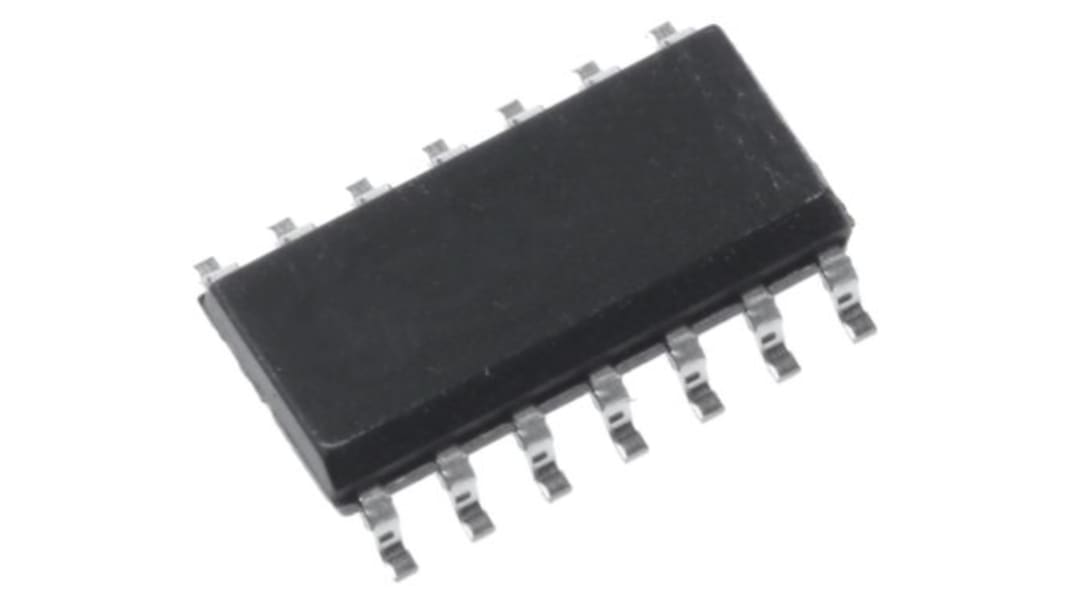

onsemi MC74HC74ADG D Flip-Flop Flip Flop IC, CMOS, LSTTL, NMOS, TTL, 14-Pin SOIC

High-Speed CMOS Logic
Operating Voltage: 2 to 6 V
Compatibility: Input CMOS, Output CMOS

High-Performance Silicon-Gate CMOS, The MC574HC74A is identical in pin out to the LS74. The device inputs are compatible with standard CMOS outputs, with pullup resistors, they are compatible with LSTTL outputs. This device consists of two D flip-flops with individual Set, Reset, and Clock inputs. Information at a D-input is transferred to the corresponding Q output on the next positive going edge of the clock input. Both Q and Qbar outputs are available from each flip-flop. The Set and Reset inputs are asynchronous.

Output Drive Capability: 10 LSTTL Loads
Outputs Directly Interface to CMOS, NMOS, and TTL
Operating Voltage Range: 2.0 to 6.0 V
Low Input Current: 1.0 mA
High Noise Immunity Characteristic of CMOS Devices
Chip Complexity: 128 FETs or 32 Equivalent Gates

74HC Family
