Infineon 1 MB SPI FRAM 8-Pin SOIC

RS-stocknr.:: 188-5421
Fabrikantnummer:: FM25V10-G
Fabrikant:: Infineon

Bulkkorting beschikbaar

Subtotaal (1 tube van 97 eenheden)*

€ 999,876

(excl. BTW)

€ 1.209,881

(incl. BTW)

Voeg 97 eenheden toe voor gratis bezorging

Bestellingen onder € 75,00 (excl. BTW) € 5,95.

Op voorraad

970 stuk(s) klaar voor verzending vanaf een andere locatie

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Aantal stuks	Per stuk	Per tube*
97 - 97	€ 10,308	€ 999,88
194 - 194	€ 9,269	€ 899,09
291 - 485	€ 9,031	€ 876,01
582 +	€ 8,806	€ 854,18

*prijsindicatie

RS-stocknr.:: 188-5421
Fabrikantnummer:: FM25V10-G
Fabrikant:: Infineon

Specificaties

Datasheets

Wetgeving en compliance

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	Infineon
	Memory Size	1MB
	Product Type	FRAM
	Organisation	128K x 8 bit
	Interface Type	SPI
	Data Bus Width	8bit
	Maximum Random Access Time	18ns
	Maximum Clock Frequency	40MHz
	Mount Type	Surface
	Package Type	SOIC
	Pin Count	8
	Height	1.47mm
	Width	3.98 mm
	Length	4.97mm
	Standards/Approvals	No
	Maximum Operating Temperature	85°C
	Automotive Standard	AEC-Q100
	Number of Bits per Word	8
	Minimum Supply Voltage	2V
	Maximum Supply Voltage	3.6V
	Minimum Operating Temperature	-40°C
	Number of Words	128k

	Alles selecteren
	Merk Infineon
	Memory Size 1MB
	Product Type FRAM
	Organisation 128K x 8 bit
	Interface Type SPI
	Data Bus Width 8bit
	Maximum Random Access Time 18ns
	Maximum Clock Frequency 40MHz
	Mount Type Surface
	Package Type SOIC
	Pin Count 8
	Height 1.47mm
	Width 3.98 mm
	Length 4.97mm
	Standards/Approvals No
	Maximum Operating Temperature 85°C
	Automotive Standard AEC-Q100
	Number of Bits per Word 8
	Minimum Supply Voltage 2V
	Maximum Supply Voltage 3.6V
	Minimum Operating Temperature -40°C
	Number of Words 128k

FM25V10-G Datasheet

Land van herkomst:: US

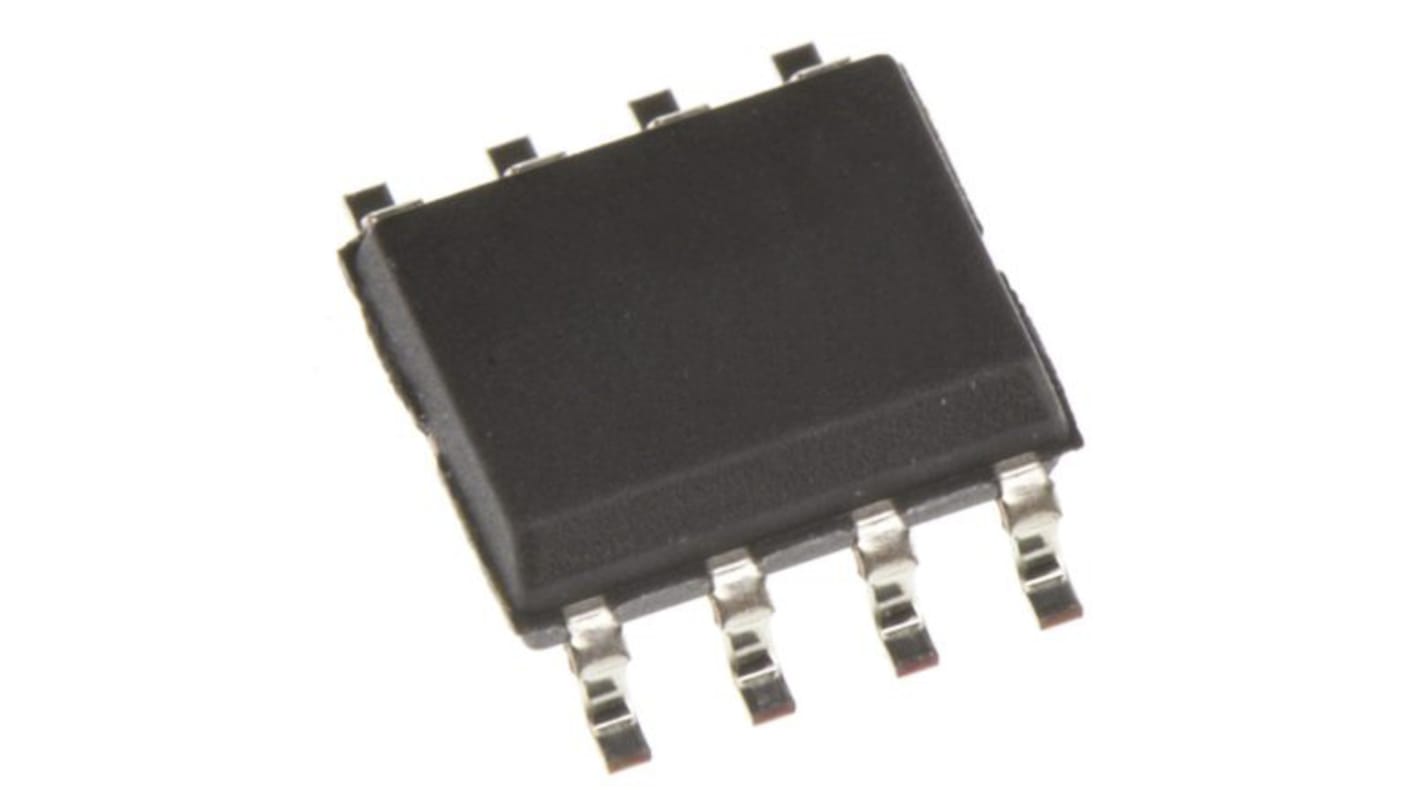

Infineon Fram Memory, 1Mbit Memory size, 128K x 8 Bit Organisation - FM25V10-G

This FRAM memory is designed for high-speed data storage solutions, featuring a memory size of 1 Mbit, organised as 128K x 8 bits. Using surface mount technology, it facilitates easy integration into various electronic systems. The compact dimensions measure 4.97mm x 3.98mm x 1.47mm, providing versatility for space-sensitive applications.

Features & Benefits

• Fast write operations with no delays enhance efficiency

• Supports up to 40MHz SPI interface for high-speed memory access

• AEC-Q100 compliant, ensuring reliable automotive memory solutions

• Advanced write protection prevents accidental data modification

Applications

• Integrated into automotive control systems for data logging

• Utilised in industrial automation for rapid data collection

• Ideal for medical devices requiring non-volatile storage

• Deployed in consumer electronics for enhanced performance

• Used in IoT devices for reliable memory retention

What advantages does this memory offer for industrial applications?

The ability to perform fast write operations at bus speed ensures that data can be captured quickly in industrial settings, reducing the risk of data loss in time-sensitive scenarios. Its robust write endurance of 100 trillion cycles further supports frequent data logging.

How does its power consumption compare with traditional memory solutions?

It operates efficiently, consuming only 300μA when active and as low as 5μA in sleep mode. This low power requirement makes it ideal for battery-operated devices or applications where energy efficiency is critical.

What benefits do the built-in protection features provide?

The sophisticated write protection mechanism includes both hardware and software controls, preventing unintended writes and ensuring that critical data remains safe from accidental changes, which is essential in mission-critical systems.
