Hammond 1553 Series Black Plastic Handheld Enclosure Integral Battery Compartment, IP54, 147 mm x 25 mm x, 89 mm
- RS-stocknr.:
- 234-5963
- Artikelnummer Distrelec:
- 302-32-172
- Fabrikantnummer:
- 1553DXBK
- Fabrikant:
- Hammond
Subtotaal (1 eenheid)*
€ 13,54
(excl. BTW)
€ 16,38
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- 40 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 13,54 |
*prijsindicatie
- RS-stocknr.:
- 234-5963
- Artikelnummer Distrelec:
- 302-32-172
- Fabrikantnummer:
- 1553DXBK
- Fabrikant:
- Hammond
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Hammond | |
| Product Type | Handheld Enclosure | |
| Body Material | Plastic | |
| External Height | 25mm | |
| Integral Battery Compartment | Yes | |
| IP Rating | IP54 | |
| Display Window | No | |
| Colour | Black | |
| External Length | 147mm | |
| External Width | 89mm | |
| Push Buttons | No | |
| Internal Mount Type | PCB | |
| Hazardous Area Certification | No | |
| Standards/Approvals | RoHS, REACH | |
| Weight | 110g | |
| Series | 1553 | |
| Keypad Recess | Yes | |
| Alles selecteren | ||
|---|---|---|
Merk Hammond | ||
Product Type Handheld Enclosure | ||
Body Material Plastic | ||
External Height 25mm | ||
Integral Battery Compartment Yes | ||
IP Rating IP54 | ||
Display Window No | ||
Colour Black | ||
External Length 147mm | ||
External Width 89mm | ||
Push Buttons No | ||
Internal Mount Type PCB | ||
Hazardous Area Certification No | ||
Standards/Approvals RoHS, REACH | ||
Weight 110g | ||
Series 1553 | ||
Keypad Recess Yes | ||
- Land van herkomst:
- CN

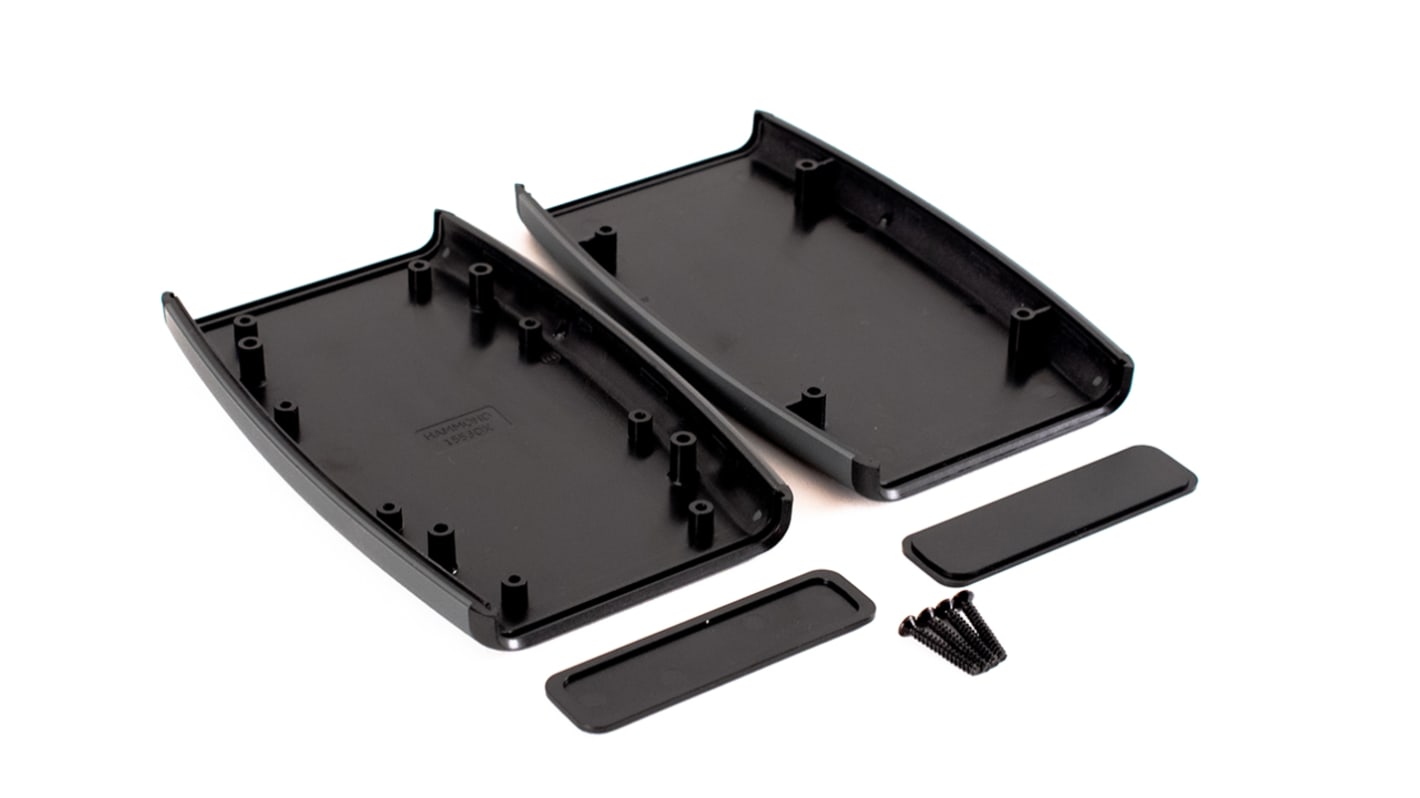

The Hammond ABS plastic hand held enclosures from 1553 series are ergonomically designed for hand-held comfort. There is a choice of five sizes and six colour combinations. All sizes except 1553A are available with or without battery compartment. Molded in general purpose ABS plastic with a soft, plastic overmold for comfortable grip. Top cover is recessed for membrane display or keypad. PC board standoffs are molded into case. Includes removable front panel for easy modifications and assembly hardware except for smallest 1553A units. Battery door and compartment version includes 4 battery clips for 2 AA batteries and a 9 volt PP3 battery clip. Gray 1553 series enclosures include nickel plated screws. All other colours use black screws.
Size L x W x H (in) 4.62 x 3.11 x 0.95
Packaging type Bag
Material ABS plastic
Colour black
