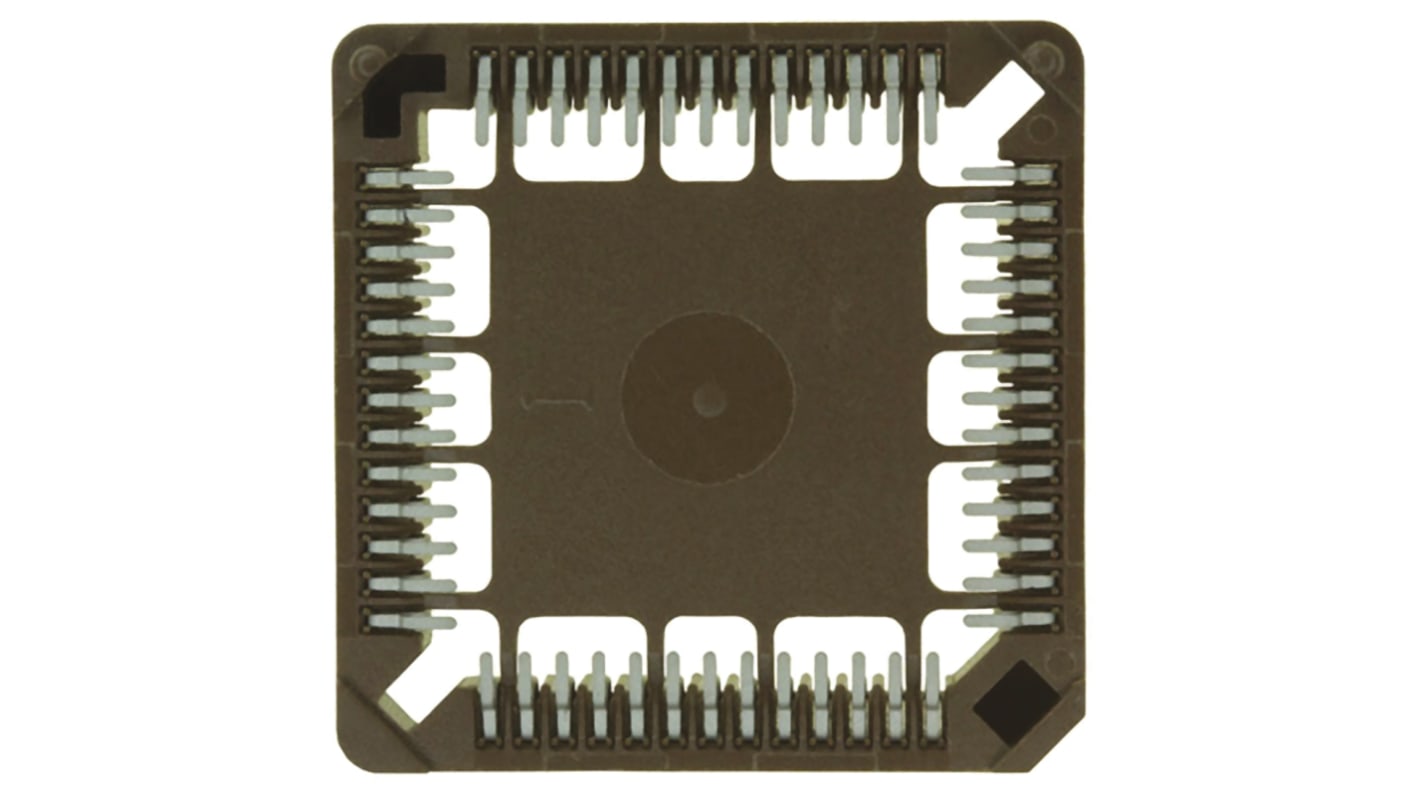

3M 1.27 mm Pitch 52 Way SOIC Surface PLCC IC Socket
- RS-stocknr.:
- 827-1496
- Fabrikantnummer:
- 8452-21A1-RK-TP
- Fabrikant:
- 3M
Subtotaal (1 verpakking van 1104 eenheden)*
€ 1.407,60
(excl. BTW)
€ 1.703,472
(incl. BTW)
Voeg 1104 eenheden toe voor gratis bezorging
Tijdelijk niet op voorraad
- Verzending vanaf 11 maart 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk | Per verpakking* |
|---|---|---|
| 1104 + | € 1,275 | € 1.407,60 |
*prijsindicatie
- RS-stocknr.:
- 827-1496
- Fabrikantnummer:
- 8452-21A1-RK-TP
- Fabrikant:
- 3M
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | 3M | |
| IC Socket Type | PLCC Socket | |
| Product Type | IC Socket | |
| Package Type | SOIC | |
| Number of Contacts | 52 | |
| Number of Rows | 4 | |
| Pitch | 1.27mm | |
| Voltage | 1 kV | |
| Orientation | Straight | |
| Contact Material | Copper Alloy | |
| Contact Plating | Tin over Nickel | |
| Minimum Operating Temperature | -40°C | |
| Socket Mount Type | Surface | |
| Device Mount Type | Surface | |
| Row Pitch | 15.24mm | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 105°C | |
| Series | 8400 | |
| Standards/Approvals | No | |
| Housing Material | Polyphenylene Sulphide Fibreglass | |
| Alles selecteren | ||
|---|---|---|
Merk 3M | ||
IC Socket Type PLCC Socket | ||
Product Type IC Socket | ||
Package Type SOIC | ||
Number of Contacts 52 | ||
Number of Rows 4 | ||
Pitch 1.27mm | ||
Voltage 1 kV | ||
Orientation Straight | ||
Contact Material Copper Alloy | ||
Contact Plating Tin over Nickel | ||
Minimum Operating Temperature -40°C | ||
Socket Mount Type Surface | ||
Device Mount Type Surface | ||
Row Pitch 15.24mm | ||
Termination Type Solder | ||
Maximum Operating Temperature 105°C | ||
Series 8400 | ||
Standards/Approvals No | ||
Housing Material Polyphenylene Sulphide Fibreglass | ||
- Land van herkomst:
- US
3M 8400 Series SMT PLCC Sockets
8400 Series SMT PLCC sockets that accept PLCCs conforming to JEDEC outline MO-047 for square and MO-052 for rectangular. These 8400 series SMT PLCC sockets have a low profile design, an open top for unrestricted airflow and feature moulded slots to facilitate device extraction. The high temperature insulator of these 8400 PLCC sockets makes them compatible with IR reflow and wave soldering and they are also compatible with automated loading equipment.
Part numbers 84XX-21A1-RK-XX have a location post (tube packaging only)
