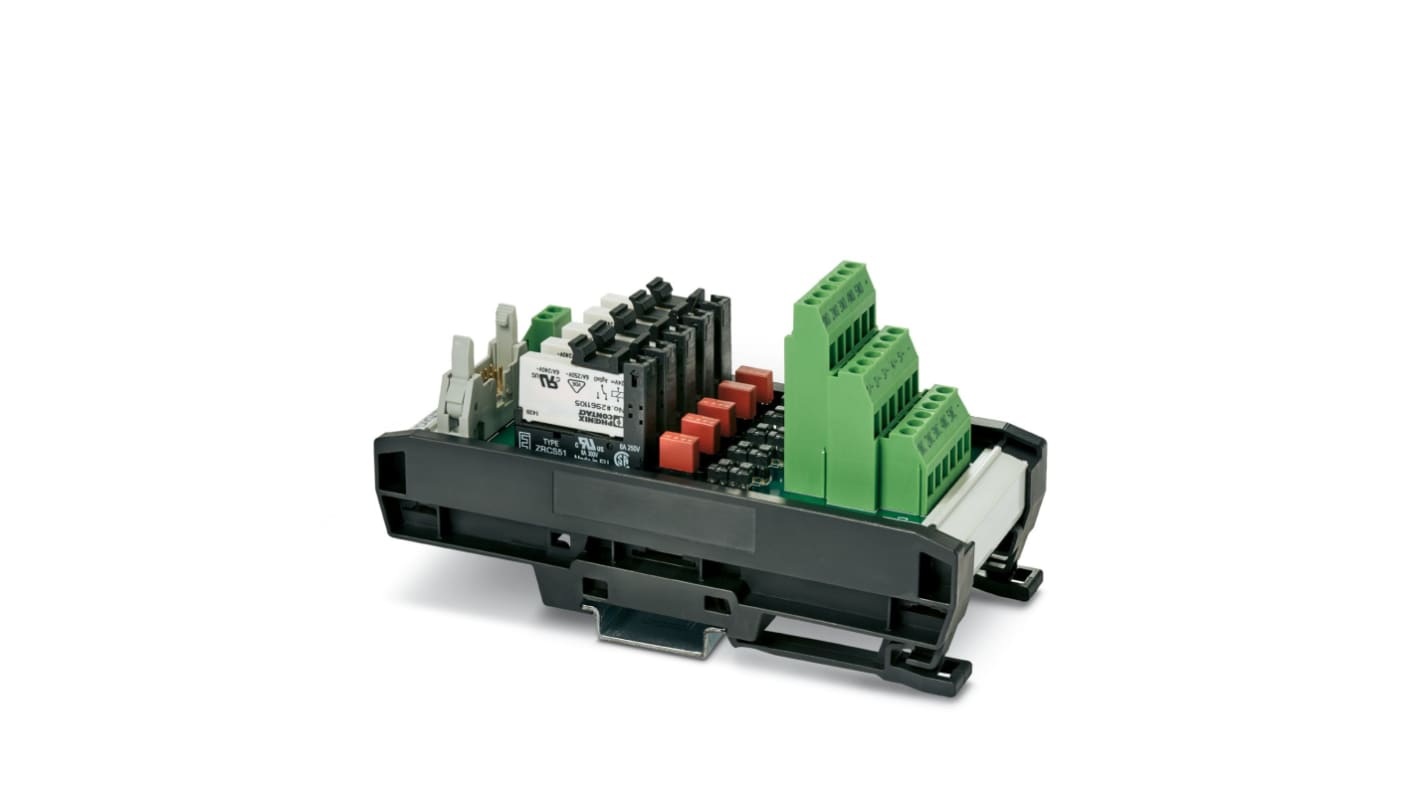

Phoenix Contact VARIOFACE Series 10-Contact Female Interface Module, D-Sub Connector, DIN Rail, 2A
- RS-stocknr.:
- 133-761
- Fabrikantnummer:
- 2905960
- Fabrikant:
- Phoenix Contact
Subtotaal (1 eenheid)*
€ 182,20
(excl. BTW)
€ 220,46
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 75,00
Tijdelijk niet op voorraad
- Verzending vanaf 07 mei 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 182,20 |
*prijsindicatie
- RS-stocknr.:
- 133-761
- Fabrikantnummer:
- 2905960
- Fabrikant:
- Phoenix Contact
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Phoenix Contact | |
| Gender | Female | |
| Product Type | Interface Module | |
| Wire Size | 0.2 to 4 mm² | |
| Current | 2A | |
| Number of Contacts | 10 | |
| Connector Type | D-Sub | |
| Mount Type | DIN Rail | |
| Voltage | 120 V | |
| Minimum Operating Temperature | -40°C | |
| Cable CSA | 0.2 to 4 mm² | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | EN 61010-2-201, IEC 60664 | |
| Depth | 78.9mm | |
| Width | 64 mm | |
| Length | 8mm | |
| Series | VARIOFACE | |
| Alles selecteren | ||
|---|---|---|
Merk Phoenix Contact | ||
Gender Female | ||
Product Type Interface Module | ||
Wire Size 0.2 to 4 mm² | ||
Current 2A | ||
Number of Contacts 10 | ||
Connector Type D-Sub | ||
Mount Type DIN Rail | ||
Voltage 120 V | ||
Minimum Operating Temperature -40°C | ||
Cable CSA 0.2 to 4 mm² | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals EN 61010-2-201, IEC 60664 | ||
Depth 78.9mm | ||
Width 64 mm | ||
Length 8mm | ||
Series VARIOFACE | ||
Vrijgesteld
- Land van herkomst:
- US
The Phoenix Contact Active module designed for use with the Emerson ROC800-series digital output modules. It is UL recognized to Class I, Div. 2 standards. With its compact design and reliable performance, this active module ensures seamless integration and enhanced functionality for your automation system.
Per channel pluggable fusing using TE5 style
Per channel blown fuse indication for quick and easy troubleshooting
Tested continuity ensures reliable performance
