Phoenix Contact VARIOFACE Series 16-Contact Female Interface Module, D-Sub Connector, DIN Rail, 500mA
- RS-stocknr.:
- 133-883
- Fabrikantnummer:
- 2905134
- Fabrikant:
- Phoenix Contact
Momenteel niet beschikbaar
We weten niet of dit item nog op voorraad komt, RS is van plan dit binnenkort uit ons assortiment te halen.
- RS-stocknr.:
- 133-883
- Fabrikantnummer:
- 2905134
- Fabrikant:
- Phoenix Contact
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Phoenix Contact | |
| Product Type | Interface Module | |
| Gender | Female | |
| Wire Size | 0.2, 4mm² | |
| Current | 500mA | |
| Number of Contacts | 16 | |
| Connector Type | D-Sub | |
| Mount Type | DIN Rail | |
| Voltage | 24V | |
| Cable CSA | 0.2, 4mm² | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | IEC 60603-13 | |
| Depth | 79mm | |
| Width | 124mm | |
| Length | 8mm | |
| Series | VARIOFACE | |
| Alles selecteren | ||
|---|---|---|
Merk Phoenix Contact | ||
Product Type Interface Module | ||
Gender Female | ||
Wire Size 0.2, 4mm² | ||
Current 500mA | ||
Number of Contacts 16 | ||
Connector Type D-Sub | ||
Mount Type DIN Rail | ||
Voltage 24V | ||
Cable CSA 0.2, 4mm² | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals IEC 60603-13 | ||
Depth 79mm | ||
Width 124mm | ||
Length 8mm | ||
Series VARIOFACE | ||
Vrijgesteld
- Land van herkomst:
- US

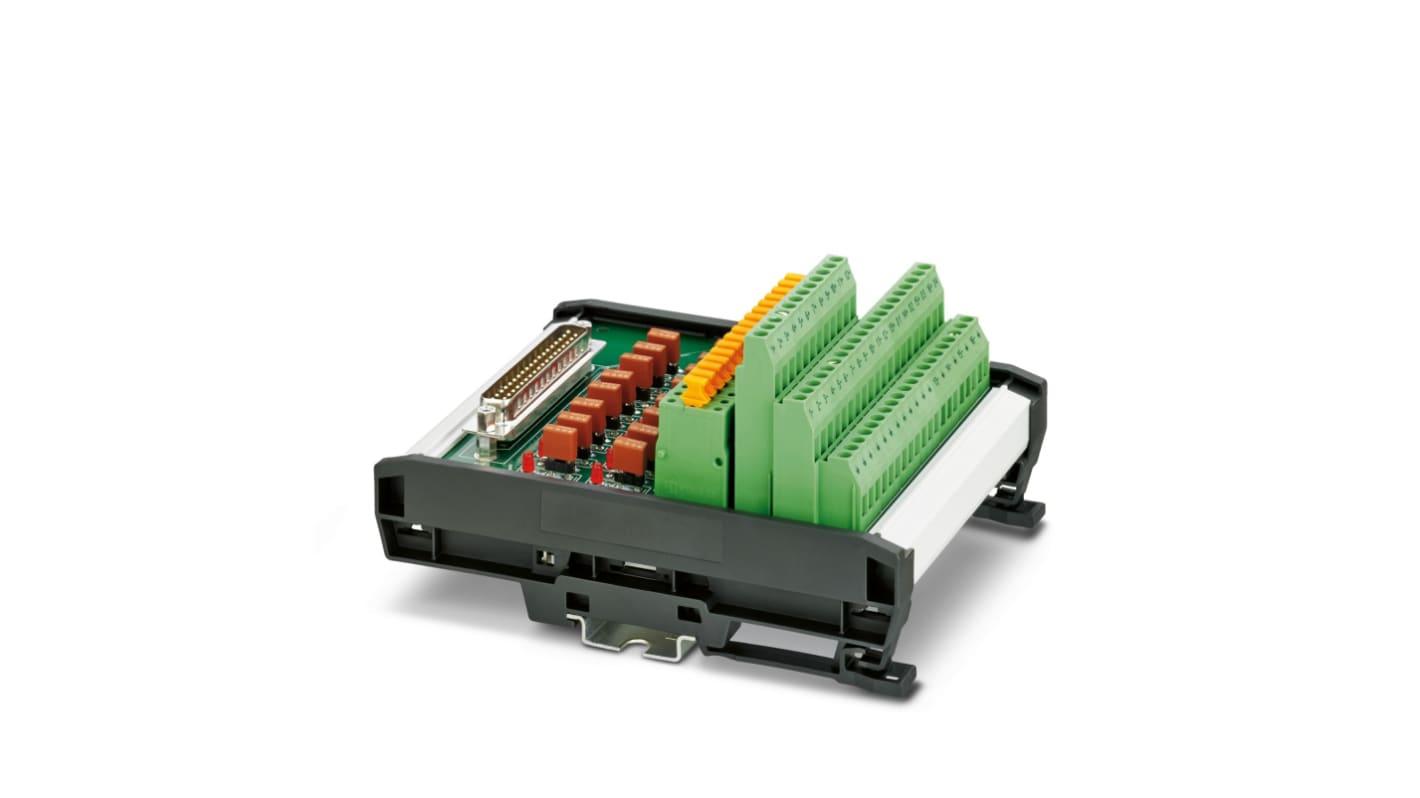

The Phoenix Contact Interface module is a VARIOFACE module designed for use with Honeywell Experion C300 16-channel analog input cards. It features a compact UM-PRO housing and is designed for DIN rail mounting. The module includes grounding foot, LED blown fusing indication, per channel shield connection, per channel disconnects with test points, and per channel pluggable 500 mA fusing. With its versatile design, this interface module offers easy connectivity and enhanced functionality for your industrial applications.
Includes grounding foot and LED blown fusing indication
Per channel shield connection and disconnects with test points
Per channel pluggable 500 mA fusing for flexibility
Compatible with Honeywell Experion C300 and LX Series
Suitable for a wide range of industrial applications
