- RS-stocknr.:
- 665-9655
- Fabrikant:
- RS PRO
1 op voorraad - levertijd is 1 werkdag(en) (EU-voorraad)
15 op voorraad - levertijd is 3 à 5 werkdagen (UK-voorraad)
Toegevoegd
Prijs Per stuk
€ 43,89
(excl. BTW)
€ 53,11
(incl. BTW)
Aantal stuks | Per stuk |
1 - 9 | € 43,89 |
10 - 24 | € 41,70 |
25 + | € 39,50 |
- RS-stocknr.:
- 665-9655
- Fabrikant:
- RS PRO
Datasheets
Wetgeving en compliance
Productomschrijving

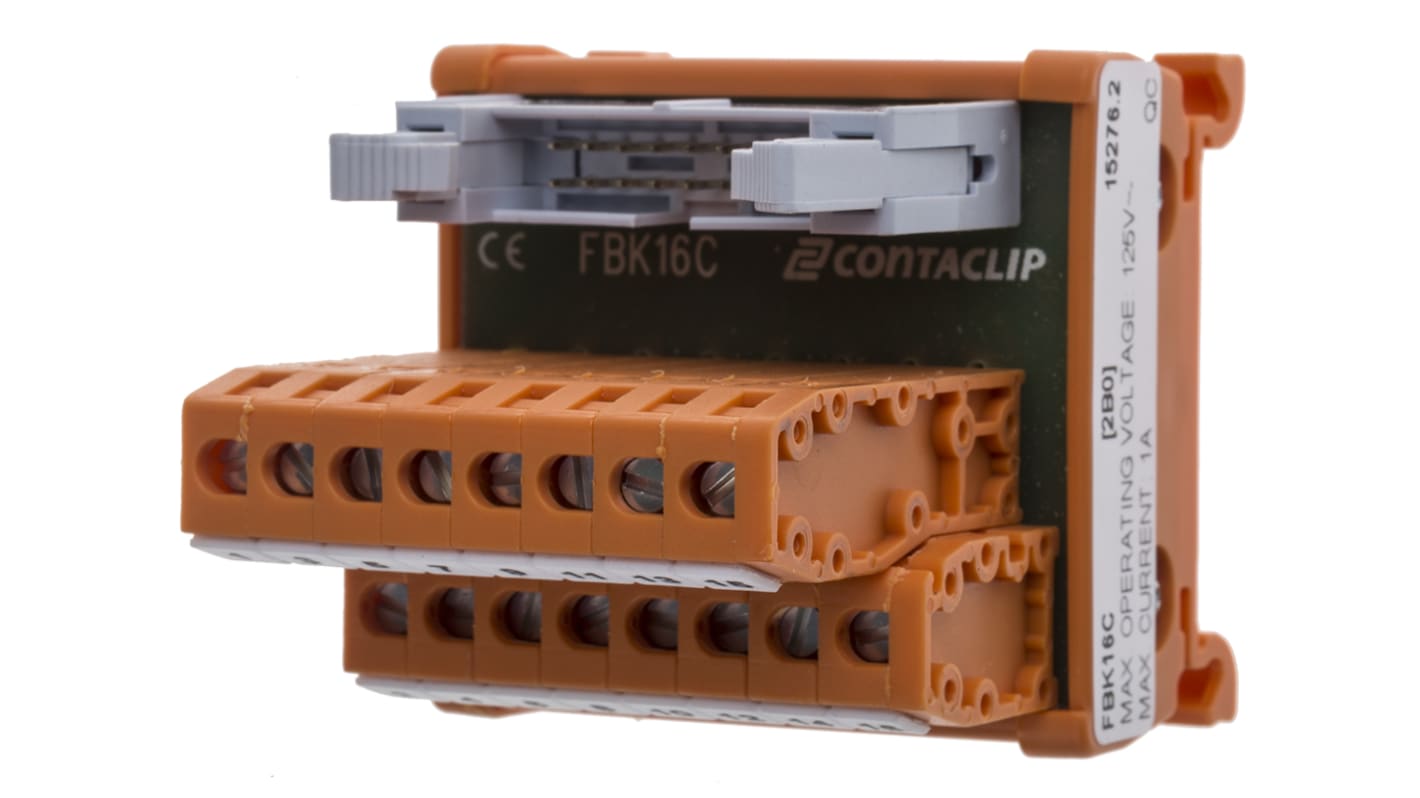

Interface Modules
Screw-clamp connection
Male plug - flat ribbon cable connection EN 60 603-13/DIN 41651
DIN EN 50178; DIN VDE 0110, pollution degree 2
Ejector mechanism
Compact design, clear terminal labelling and simple assembly
Insulating stripping length 7mm
Alternative to pure individual wire approach
Male plug - flat ribbon cable connection EN 60 603-13/DIN 41651
DIN EN 50178; DIN VDE 0110, pollution degree 2
Ejector mechanism
Compact design, clear terminal labelling and simple assembly
Insulating stripping length 7mm
Alternative to pure individual wire approach
Specificaties
Kenmerk | Waarde |
---|---|
Gender | Male |
Wire Size | 22 → 14 AWG |
Number of Contacts | 16 |
Connector Type | Flat Ribbon Cable |
Mounting Type | DIN Rail Mount |
Test Proof Voltage | 0.67kV ac |
Voltage Rating | 125 V ac/dc |
Current Rating | 1A |
Cable CSA | 0.2 → 2.5mm² |
Dimensions | 51 x 61 x 47mm |
Depth | 47mm |
Length | 51mm |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +50°C |
Width | 61mm |
