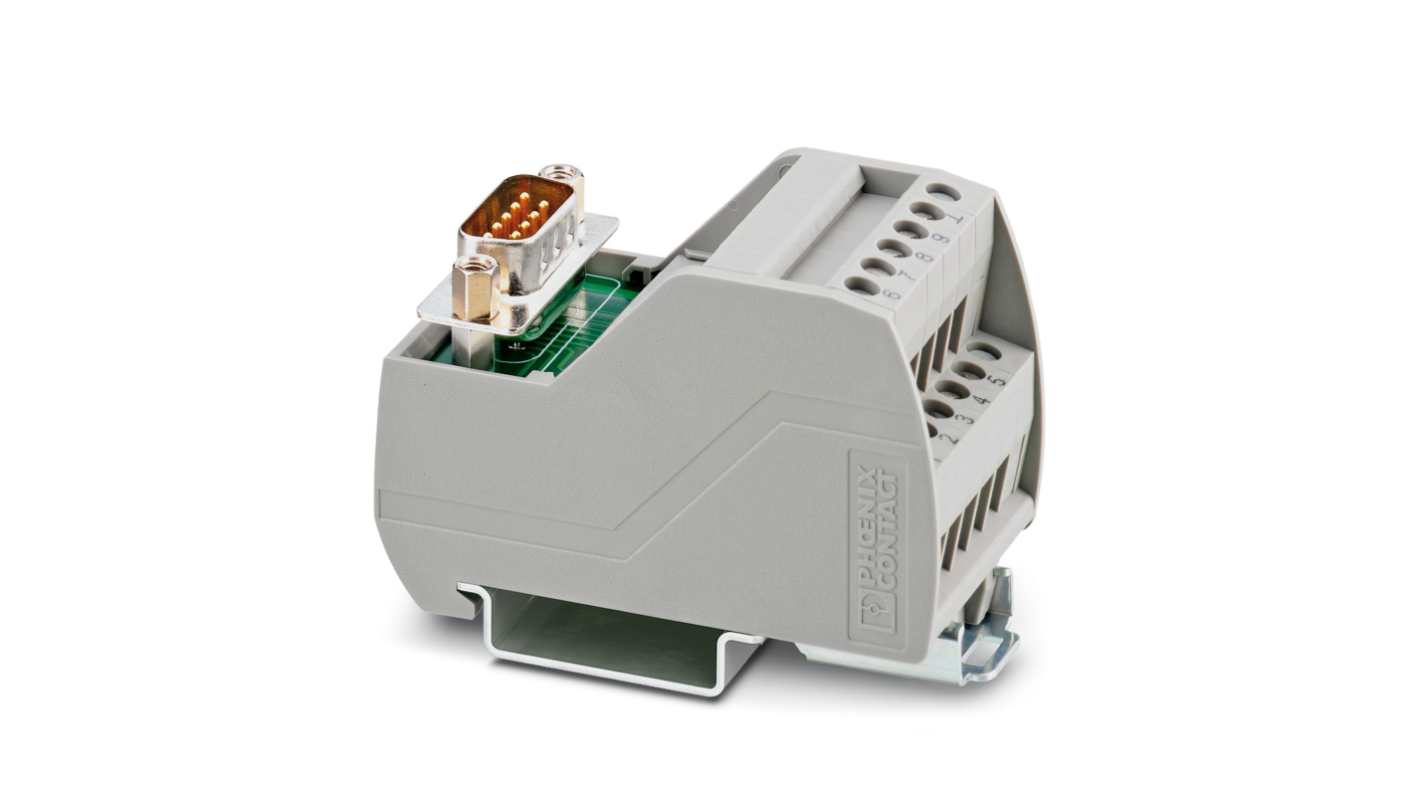

Phoenix Contact VIP-2/SC/D 9SUB/M Series 9-Contact Male Interface Module, D-sub Connector, DIN Rail Mount, 2A

Bekijk alle Interface Modules

Subtotaal (1 eenheid)*

€ 33,88

(excl. BTW)

€ 40,99

(incl. BTW)

Add to Basket
selecteer of typ hoeveelheid
Op voorraad
  • 28 stuk(s) klaar voor verzending
  • 27 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks
Per stuk
1 +€ 33,88

*prijsindicatie

RS-stocknr.:
667-0021
Fabrikantnummer:
2315117
Fabrikant:
Phoenix Contact
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren

Merk

Phoenix Contact

Gender

Male

Wire Size

24 → 12 AWG

Number of Contacts

9

Connector Type

D-sub

Body Orientation

Straight

Mounting Type

DIN Rail Mount

Voltage Rating

25 V ac, 60 V dc

Current Rating

2A

Cable CSA

0.2 → 2.5(Flexible) mm², 0.2 → 4(Rigid) mm²

Dimensions

34.7 x 45.1 x 65.5mm

Depth

45.1mm

Length

34.7mm

Width

34.7mm

Maximum Operating Temperature

+50°C

Minimum Operating Temperature

-20°C

Series

VIP-2/SC/D 9SUB/M

Land van herkomst:
US

Phoenix Contact VIP-2/SC/D 9SUB/M Series Interface Module, D-Sub, DIN Rail Mount - 2315117


This interface module serves as a versatile connectivity solution for various industrial automation applications. With a sturdy design and precise specifications, it facilitates connections between different components in electrical systems, particularly in environments requiring dependable performance under varying conditions.

Features & Benefits


• Screw connection method ensures secure and straightforward installation
• 9-contact connector supports efficient point-to-point wiring
• Rated for 25V ac and 60V dc for a wide range of applications
• Capable of handling a current rating of up to 2A
• Compatible with wire sizes from 24AWG to 12AWG for flexibility
• Designed for mounting on NS35 rails, optimising space utilisation

Applications


• Suitable for wiring connections in control cabinets
• Effective for integrating sensors and actuators in machinery
• Applicable in industrial environments where robust electrical connections are needed

How does the connection method impact installation?


The screw connection method allows for both reliable and uncomplicated installation, facilitating quick adjustments and secure terminations essential in industrial settings.

What wire types can be used with this interface module?


The module accepts rigid wire sizes from 0.2mm² to 4mm² and flexible wire sizes from 0.2mm² to 2.5mm², ensuring compatibility with various cabling types.

What safety standards does the module adhere to?


It complies with IEC 60603-13 standards, ensuring safe and effective connections in electrical applications.
