Phoenix Contact VIP-3/SC/D37SUB/F Series 37-Contact Female Interface Module, D-Sub Connector, DIN Rail, 2A

Bekijk alle Interface Modules

Subtotaal (1 eenheid)*

€ 60,28

(excl. BTW)

€ 72,94

(incl. BTW)

Add to Basket
selecteer of typ hoeveelheid
Op voorraad
  • 6 stuk(s) klaar voor verzending
  • 9 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks
Per stuk
1 +€ 60,28

*prijsindicatie

RS-stocknr.:
667-0074
Artikelnummer Distrelec:
304-01-196
Fabrikantnummer:
2315191
Fabrikant:
Phoenix Contact
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren

Merk

Phoenix Contact

Product Type

Interface Module

Gender

Female

Wire Size

24/12 AWG

Current

2A

Orientation

Straight

Number of Contacts

37

Connector Type

D-Sub

Mount Type

DIN Rail

Test Proof Voltage

0.6kV

Voltage

25 V ac

Minimum Operating Temperature

-20°C

Cable CSA

0.2 to 4 mm²

Maximum Operating Temperature

50°C

Depth

62mm

Standards/Approvals

No

Width

72.7 mm

Length

72.7mm

Series

VIP-3/SC/D37SUB/F

Land van herkomst:
US

Phoenix Contact VIP-3/SC/D37SUB/F Series Interface Module, 25VAC Voltage Rating, 2A Current Rating - 2315191

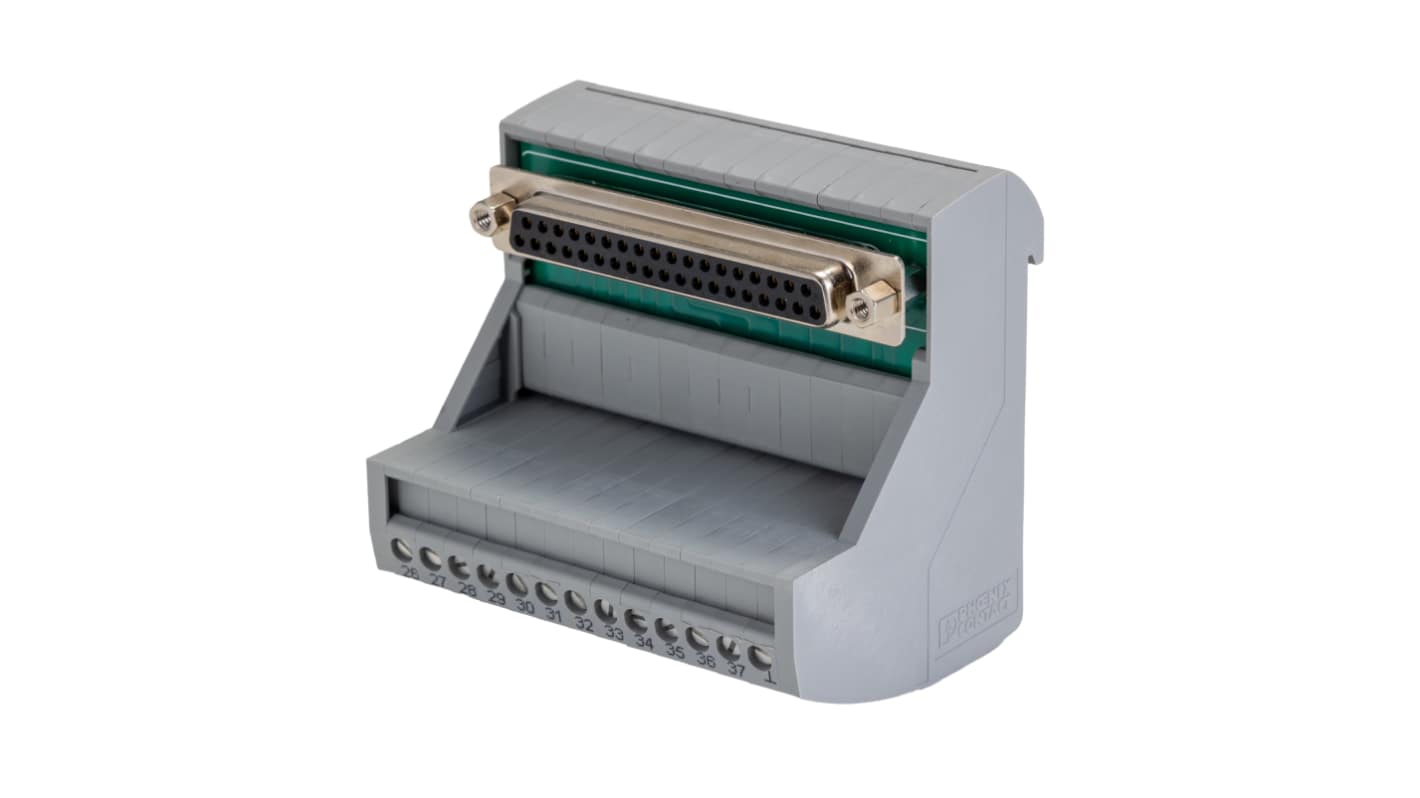

This interface module belongs to the VARIOFACE range, designed for integration into automation and control systems. It features a female D-sub connector with 37 contacts, ensuring dependable connections. The module is optimised for DIN rail mounting, with dimensions of 72.7mm in length, 62mm in depth, and 69mm in height, making it ideal for environments with limited space.

Features & Benefits


• Compliant with standard IEC 60603-13 for secure connections

• Supports voltage ratings of 25V AC, suitable for various applications

• Utilises screw connection for stable wiring

• Rated for temperatures between -20°C and +50°C for a range of conditions

• Accommodates rigid conductors up to 4mm² and flexible conductors up to 2.5mm²

• Metal foot for enhanced mounting stability in industrial settings

Applications


• Connecting diverse control systems

• Utilised in industrial automation setups

• Suitable for modular connections in electrical panels

• Applied in telecommunications equipment wiring

• Used in automation control cabinets

Is there a status display on this termination board?


No, the module does not feature a status display.

What are the mounting options for this interface module?


It can be mounted in any position on DIN rails.

Will it ensure secure electrical connections?


The screw connection type provides a stable and reliable connection.

What is the maximum current carrying capacity of the module?


The module supports a maximum current of 2 A per branch.
