Siemens IP69K, IP67, IP20, IP66 Key Switch, SPDT, 10 A 2-Way Ronis-Key

RS-stocknr.:: 173-6764
Fabrikantnummer:: 3SU1100-4BF11-1FA0
Fabrikant:: Siemens

Siemens IP69K, IP67, IP20, IP66 Key Switch, SPDT, 10 A 2-Way Ronis-Key

Subtotaal (1 eenheid)*

€ 49,19

(excl. BTW)

€ 59,52

(incl. BTW)

GRATIS bezorging voor bestellingen van meer dan € 80,00

Op voorraad

Plus verzending 6 stuk(s) vanaf 30 maart 2026
Plus verzending 10 stuk(s) vanaf 30 maart 2026

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Aantal stuks	Per stuk
1 +	€ 49,19

*prijsindicatie

RS-stocknr.:: 173-6764
Fabrikantnummer:: 3SU1100-4BF11-1FA0
Fabrikant:: Siemens

Specificaties

Datasheets

Wetgeving en compliance

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	Siemens
	Number of Positions	2
	Product Type	Key Switch
	Switch Operation	Latching
	Contact Configuration	SPDT
	Housing Material	Plastic
	Switch Contact Current	10 A
	IP Rating	IP69K, IP67, IP20, IP66
	Key Type	Ronis
	Terminal Type	Screw
	Bezel Shape	Round
	Contact DC Voltage	500V dc
	Contact AC Voltage	500V ac
	Switch Configuration	SPDT
	Standards/Approvals	CE, UL, CSA, CCC, EAC
	Key Index Angle	90°
	Maximum Operating Temperature	70°C
	Minimum Operating Temperature	-25°C
	Mechanical Life	1000000Cycles
	Series	SIRIUS ACT

	Alles selecteren
	Merk Siemens
	Number of Positions 2
	Product Type Key Switch
	Switch Operation Latching
	Contact Configuration SPDT
	Housing Material Plastic
	Switch Contact Current 10 A
	IP Rating IP69K, IP67, IP20, IP66
	Key Type Ronis
	Terminal Type Screw
	Bezel Shape Round
	Contact DC Voltage 500V dc
	Contact AC Voltage 500V ac
	Switch Configuration SPDT
	Standards/Approvals CE, UL, CSA, CCC, EAC
	Key Index Angle 90°
	Maximum Operating Temperature 70°C
	Minimum Operating Temperature -25°C
	Mechanical Life 1000000Cycles
	Series SIRIUS ACT

Land van herkomst:: DE

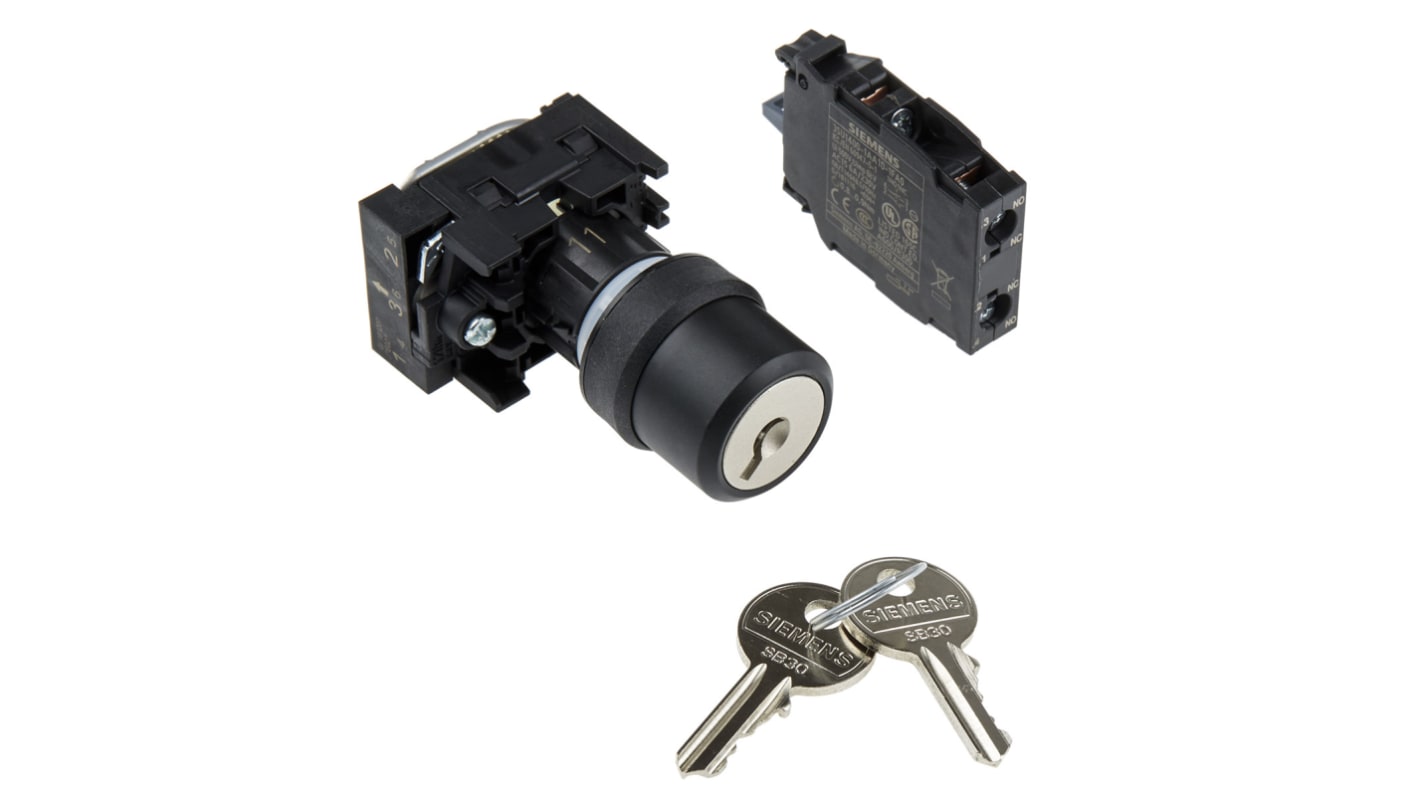

Siemens Key Switch

The Siemens SIRIUS ACT series is a type operated switch of 22mm round diameter comes with 2 key. This key switch has 2 latching switch positions O-I. It had an SPDT contact configuration. It has a black coloured plastic front ring. It has a voltage rating of 5-500V and current rating of 10A.

Features and Benefits

• Cost-efficient

• High durability and reliability

• Industry standards compliant

• Lightweight

• Operating temperature ranges between -25°C and 70°C

• Possible special locks: SB31, 421, 455

• Screw-type terminal connections

Applications

• Cabinets

• Electrical circuits

• Electrical power isolators

• Fire alarm systems

• Fuse boxes

Certifications

• CCC certified
• CE certified
• CSA certified
• DIN EN 61373
• EAC approved
• IEC 60068-2-27
• IEC 60068-2-6
• IP20 rating
• IP66 rating
• IP67 rating
• IP69K rating
• NEMA 1, 2, 3, 3R, 4, 4X, 12, 13
• UL listed
