Siemens IP67, IP69, IP66 Key Switch, SPST, 10 A 3-Way

Bekijk alle Key Switches

Subtotaal (1 eenheid)*

€ 53,53

(excl. BTW)

€ 64,77

(incl. BTW)

Add to Basket
selecteer of typ hoeveelheid
Op voorraad
  • Plus verzending 4 stuk(s) vanaf 30 maart 2026
  • Plus verzending 22 stuk(s) vanaf 30 maart 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks
Per stuk
1 +€ 53,53

*prijsindicatie

RS-stocknr.:
173-6765
Fabrikantnummer:
3SU1100-4BL11-1NA0
Fabrikant:
Siemens
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren

Merk

Siemens

Number of Positions

3

Product Type

Key Switch

Switch Operation

Latching

Contact Configuration

SPST

Housing Material

Plastic

Switch Contact Current

10 A

IP Rating

IP67, IP69, IP66

Terminal Type

Screw

Bezel Shape

Round

Contact AC Voltage

500V ac

Contact DC Voltage

500V dc

Switch Configuration

SPST

Standards/Approvals

CE, UL, CSA, EAC, CCC

Key Index Angle

45°

Minimum Operating Temperature

-25°C

Series

SIRIUS ACT

Mechanical Life

1000000Cycles

Maximum Operating Temperature

70°C

Land van herkomst:
DE

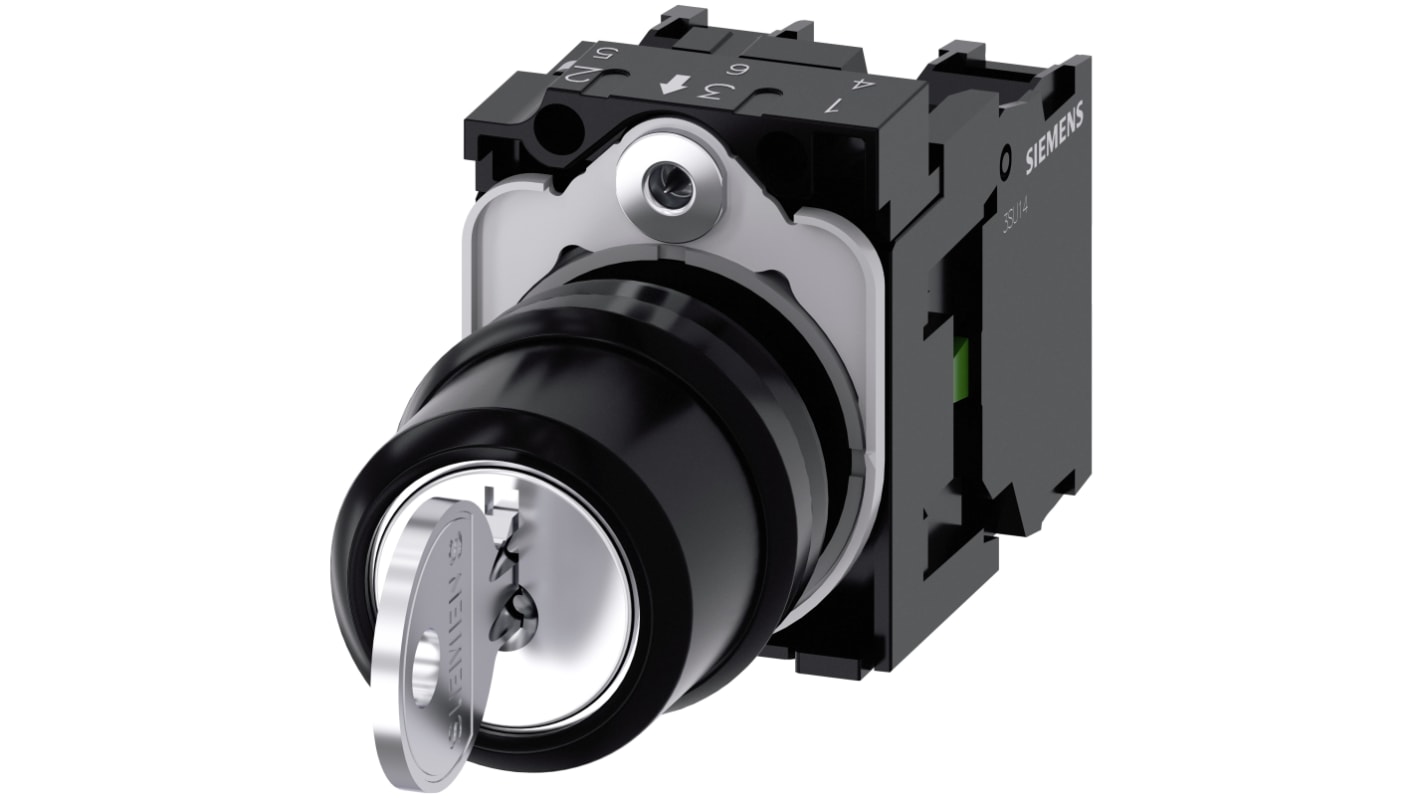

Siemens Key Switch, 5 to 500V AC/DC Operating Voltage Range, Screw Terminal Connection Type - SIRIUS ACT Series - 3SU1100-4BL11-1NA0


Want to prevent anyone from tampering with your hazardous kit? This key switch from Siemens keeps it firmly locked down. You can use it to activate one of two circuits by simply inserting the included key and rotating it left or right by 45°. The locking mechanism lets you limit control to trained and authorised personnel, lowering the risk of an injury. Devices like this are a vital safety measure in power distribution, alarm panels and industrial automation networks.

Features & Benefits


• AC or DC operating voltage for use with standard electrical sources

• Works without a glitch in temperatures between -25°C and +70°C

• Mounting dimensions of 49.4 (H) x 29.5 (W) x 49.7mm (D) let you squeeze it into tighter spaces

• Tested up to 6kV for protection against sudden electrical surges

Can this product cope with dusty work areas?


Yes, it can. This key switch has an IP67 rating, which indicates that it's fully dust-proof, as well as waterproof up to a depth of 1m.
