Siemens IP67, IP66, IP69 Key Switch, SPST, 10A 2-Way

Bekijk alle Key Switches

Subtotaal (1 eenheid)*

€ 63,13

(excl. BTW)

€ 76,39

(incl. BTW)

Add to Basket
selecteer of typ hoeveelheid
Informatie over voorraden is momenteel niet toegankelijk - Controleer het later nog eens opnieuw
Aantal stuks
Per stuk
1 +€ 63,13

*prijsindicatie

Better World

Ons Better World assortiment bevat producten die het u gemakkelijk maken om een groenere productkeuze te maken waarop u kunt vertrouwen. Klik hier voor meer informatie.

RS-stocknr.:
193-2505
Fabrikantnummer:
3SU1150-4BF11-3FA0
Fabrikant:
Siemens
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren

Merk

Siemens

Number of Positions

2

Product Type

Key Switch

Switch Operation

Latching

Contact Configuration

SPST

Housing Material

Metal

Switch Contact Current

10A

IP Rating

IP67, IP66, IP69

Terminal Type

Spring Terminal

Bezel Shape

Round

Contact AC Voltage

500V ac

Contact DC Voltage

500V dc

Switch Configuration

SPST

Standards/Approvals

CCC, CE, UL, EAC, CSA

Key Index Angle

90°

Better World Product

Yes

Better World Claim

Extended Product Life, Low Carbon Manufacture

Maximum Operating Temperature

70°C

Mechanical Life

300000Cycles

Minimum Operating Temperature

-25°C

Series

SIRIUS ACT

Land van herkomst:
DE
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.

An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.

Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.

As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.

The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.

Note: Complete unit, delivery includes holders and modules.

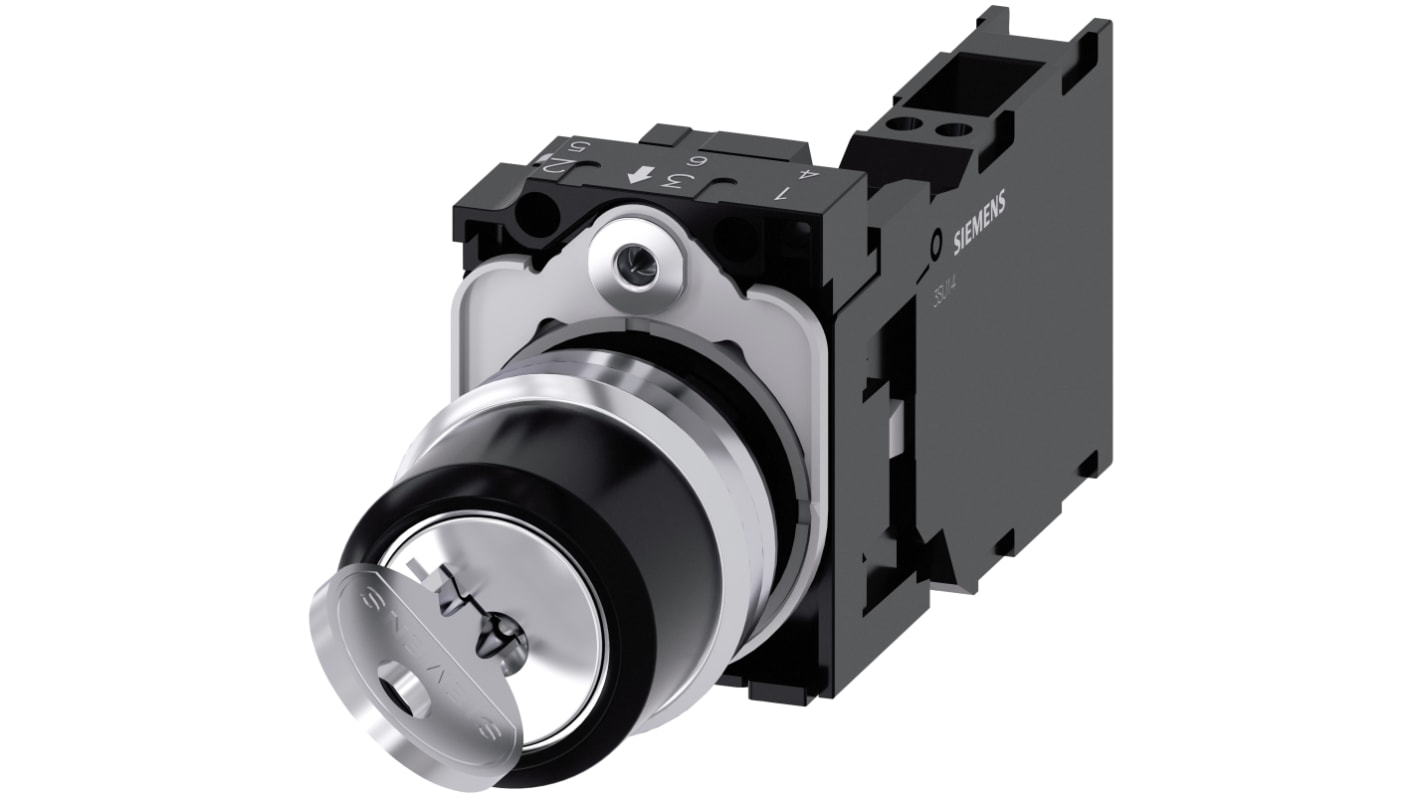

RONIS key-operated switch, 22 mm, round, metal, shiny, lock number SB30, with 2 keys, 2 switch positions O-I, latching, actuating angle 90°, 10:30h/13:30h, key removal O+I, with holder, 1 NO+1 NC, spring-type terminal, possible special locks: SB31, 421, 455
