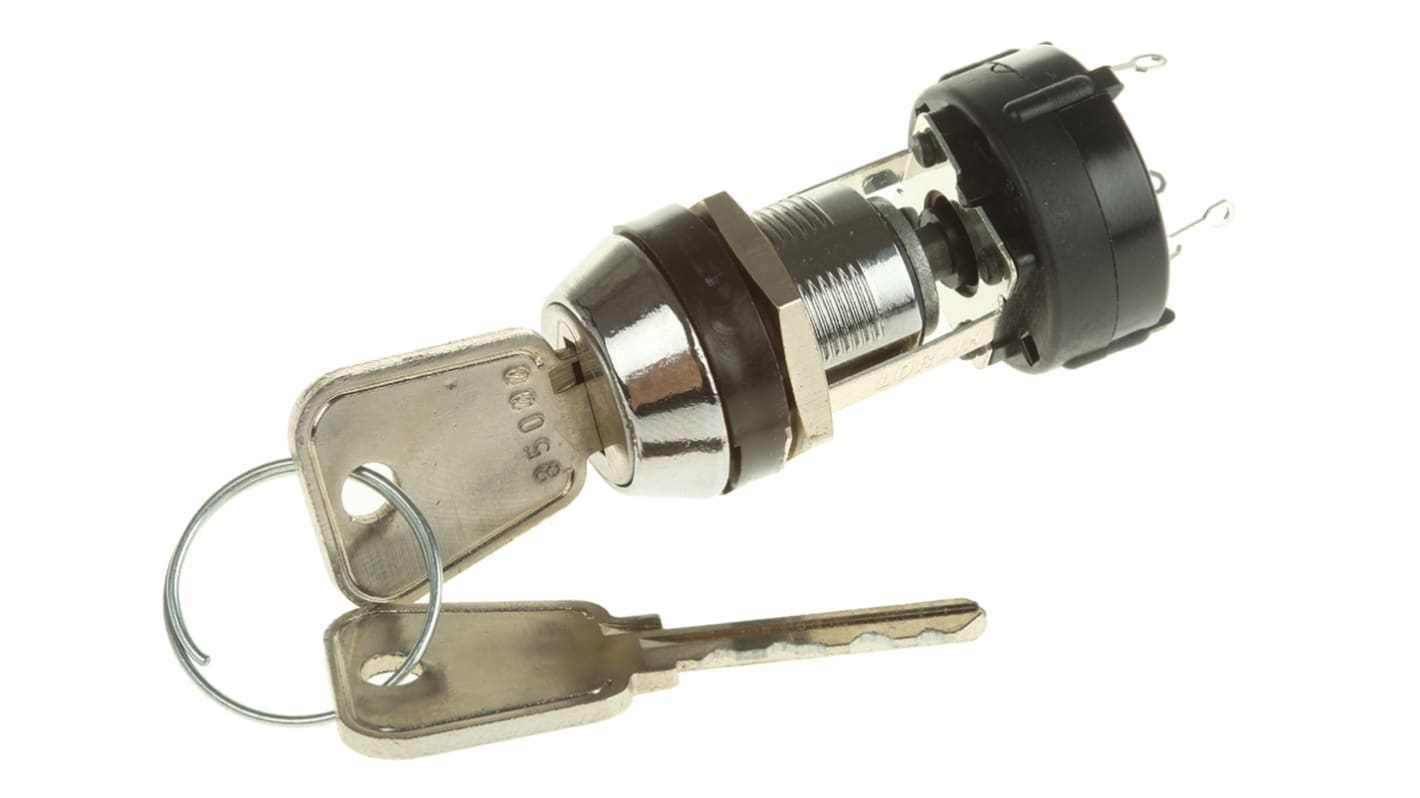

Lorlin IP67 High Security Key Switch, SPST, 150 mA @ 250 V ac 4-Way
- RS-stocknr.:
- 711-8331
- Fabrikantnummer:
- CKL6018
- Fabrikant:
- Lorlin
Bulkkorting beschikbaar
Subtotaal (1 eenheid)*
€ 18,50
(excl. BTW)
€ 22,38
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 75,00
Op voorraad
- 62 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 - 9 | € 18,50 |
| 10 - 49 | € 17,69 |
| 50 - 99 | € 16,46 |
| 100 - 249 | € 14,83 |
| 250 + | € 12,79 |
*prijsindicatie
- RS-stocknr.:
- 711-8331
- Fabrikantnummer:
- CKL6018
- Fabrikant:
- Lorlin
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Lorlin | |
| Number of Positions | 4 | |
| Contact Configuration | SPST | |
| Contact Current Rating | 150 mA @ 250 V ac | |
| IP Rating | IP67 | |
| Terminal Type | Solder | |
| Case Material | Chrome Plated Zinc Alloy | |
| Bezel Shape | Round | |
| Depth Behind Panel | 48.7mm | |
| Key Index Angle | 90° | |
| Contact Material | Silver Plated Brass | |
| Mechanical Life | 10000Operations | |
| Operating Temperature Range | -30 → +85°C | |
| Standards Met | RoHS | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | +85°C | |
| Alles selecteren | ||
|---|---|---|
Merk Lorlin | ||
Number of Positions 4 | ||
Contact Configuration SPST | ||
Contact Current Rating 150 mA @ 250 V ac | ||
IP Rating IP67 | ||
Terminal Type Solder | ||
Case Material Chrome Plated Zinc Alloy | ||
Bezel Shape Round | ||
Depth Behind Panel 48.7mm | ||
Key Index Angle 90° | ||
Contact Material Silver Plated Brass | ||
Mechanical Life 10000Operations | ||
Operating Temperature Range -30 → +85°C | ||
Standards Met RoHS | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature +85°C | ||
19mm High Security Key Switch - CKL Series
Moulded single wafer lock switch
8 disc lock with built in anti-pick system
4 key withdrawal positions
Flat double entry key (key code 85000)
360° total lock movement
Two part construction, with the lock inserted into front of panel and the CK module from the rear
Non shorting BBM contacts
Keys to pass (common combination)
3.0mm panel thickness
8 disc lock with built in anti-pick system
4 key withdrawal positions
Flat double entry key (key code 85000)
360° total lock movement
Two part construction, with the lock inserted into front of panel and the CK module from the rear
Non shorting BBM contacts
Keys to pass (common combination)
3.0mm panel thickness
Supplied with
2 keys
