Carlo Gavazzi CLP Series Level Controller -, DIN Rail 2 Analogue Input 24 V-Rated Relay

RS-stocknr.:: 858-2686
Artikelnummer Distrelec:: 304-02-363
Fabrikantnummer:: CLP2EA1C230
Fabrikant:: Carlo Gavazzi

Carlo Gavazzi CLP Series Level Controller -, DIN Rail 2 Analogue Input 24 V-Rated Relay

Subtotaal (1 eenheid)*

€ 120,82

(excl. BTW)

€ 146,19

(incl. BTW)

GRATIS bezorging voor bestellingen van meer dan € 75,00

Op voorraad

7 stuk(s) klaar voor verzending
8 stuk(s) klaar voor verzending vanaf een andere locatie
Plus verzending 9 stuk(s) vanaf 10 februari 2026

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Aantal stuks	Per stuk
1 +	€ 120,82

*prijsindicatie

RS-stocknr.:: 858-2686
Artikelnummer Distrelec:: 304-02-363
Fabrikantnummer:: CLP2EA1C230
Fabrikant:: Carlo Gavazzi

Specificaties

Datasheets

Wetgeving en compliance

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	Carlo Gavazzi
	Number of Inputs	2
	Product Type	Level Controller
	Probe Voltage	5V
	Mount Type	DIN Rail
	Response Time	5s
	Minimum Operating Temperature	-20°C
	Terminal Type	Screw
	Maximum Operating Temperature	50°C
	IP Rating	IP20
	Maximum Supply Voltage	24V
	Standards/Approvals	UL, CSA
	Hazardous Area Certification	No
	Number of Outputs	5
	Series	CLP
	Input Type	Analogue
	Sensitivity	500kΩ
	Current Rating	8 A
	Output Type	Relay

	Alles selecteren
	Merk Carlo Gavazzi
	Number of Inputs 2
	Product Type Level Controller
	Probe Voltage 5V
	Mount Type DIN Rail
	Response Time 5s
	Minimum Operating Temperature -20°C
	Terminal Type Screw
	Maximum Operating Temperature 50°C
	IP Rating IP20
	Maximum Supply Voltage 24V
	Standards/Approvals UL, CSA
	Hazardous Area Certification No
	Number of Outputs 5
	Series CLP
	Input Type Analogue
	Sensitivity 500kΩ
	Current Rating 8 A
	Output Type Relay

Datasheet

Vrijgesteld

Land van herkomst:: LT

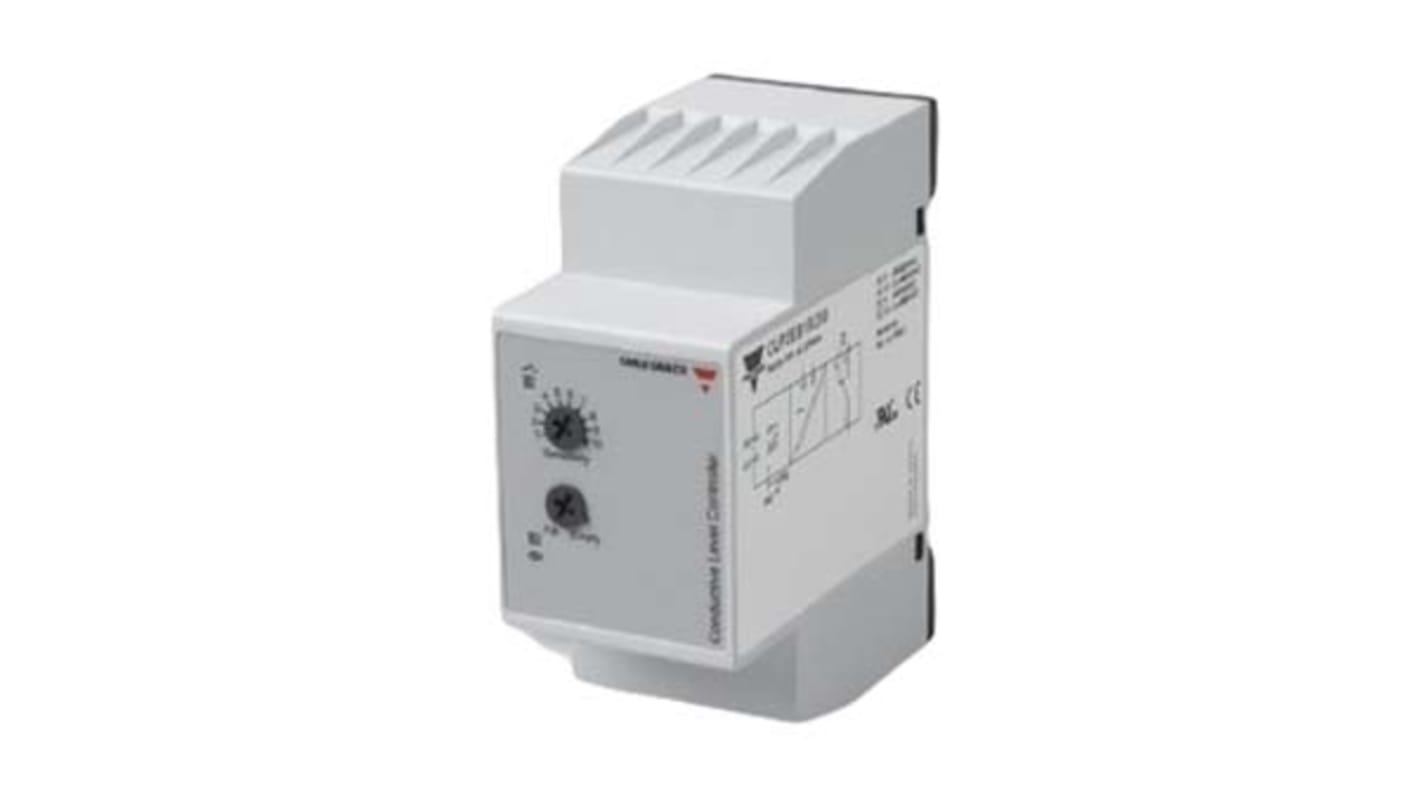

Carlo Gavazzi Level Controller

The Carlo Gavazzi conductive microprocessor-based level controller is designed for liquids with a wide sensitivity range (like sewage water, chemicals, saltwater etc.). This controller has a separate output for alarm indication in case of a tank running dry or if an overflow condition occurs. Liquid level relays are used to monitor the levels of conductive liquids and are available in Up/Down, Minimum, Maximum, and Fill/Empty variations. Liquid level relays are straightforward to install and safe to use. It has a supply voltage of 230VAC.

Features and Benefits

Conductive level controller

Adjustment of sensitivity

Low-voltage AC electrodes

Output 2x8A/250 VAC DPDT relay

LED indication for output ON and power ON

Sensitivity adjustment from 250ohm to 500Kohm

Easy installation on DIN rails or with an 11-pin circular plug

11-pin circular plug mount

Relay output is 0.5Hz

Applications

Liquid level relays (conductive level sensors) are used in a wide variety of applications, including wastewater management and the monitoring and management of corrosive liquid media.

Designed specifically to provide monitoring and control of liquid levels, Protection of pumps against dry running, ability to detect liquid leaks in a system, control of media mixing ratios and control of liquid levels.

Certifications

CE certified

CSA certified
