Omron D2F Series Hinge Roller Lever Limit Switch, SPDT, IP40, 250V ac
- RS-stocknr.:
- 254-3097
- Fabrikantnummer:
- D2F-01FL2-A
- Fabrikant:
- Omron

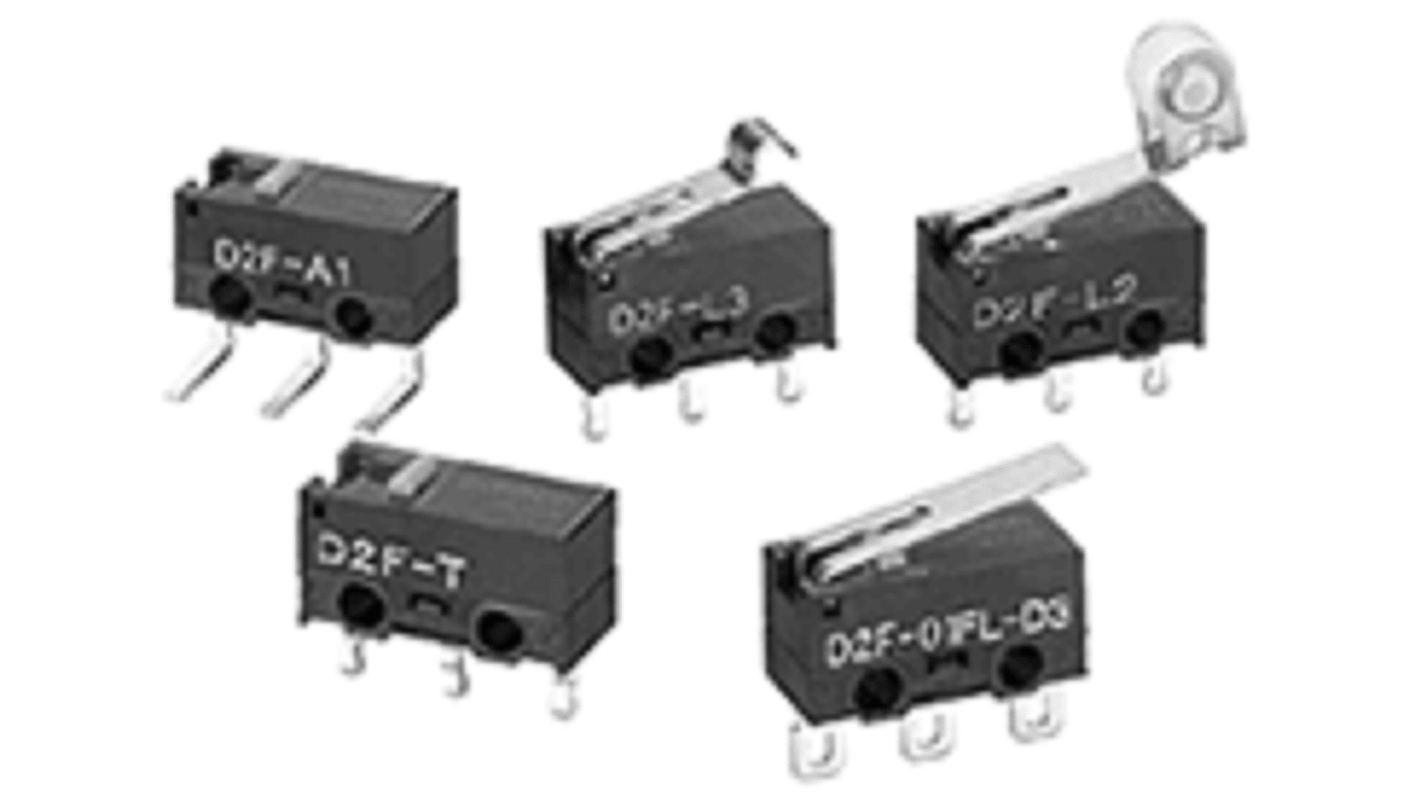

Afbeelding representeert productcategorie
Bulkkorting beschikbaar
Subtotaal (1 eenheid)*
€ 2,22
(excl. BTW)
€ 2,69
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- Plus verzending 1 stuk(s) vanaf 04 mei 2026
- Plus verzending 169 stuk(s) vanaf 04 mei 2026
- Plus verzending 259 stuk(s) vanaf 11 mei 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 - 9 | € 2,22 |
| 10 - 49 | € 2,14 |
| 50 - 99 | € 2,11 |
| 100 - 224 | € 2,03 |
| 225 + | € 1,94 |
*prijsindicatie
- RS-stocknr.:
- 254-3097
- Fabrikantnummer:
- D2F-01FL2-A
- Fabrikant:
- Omron
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Omron | |
| Product Type | Limit Switch | |
| Actuator Type | Hinge Roller Lever | |
| Contact Configuration | SPDT | |
| IP Rating | IP40 | |
| Contact Type | Crossbar | |
| Series | D2F | |
| Minimum Operating Temperature | -40°C | |
| Switching DC Voltage | 30V dc | |
| Switching AC Voltage | 250V ac | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | UL (UL61058-1)/cUL (CSA C22.2 No.61058-1) | |
| Hazardous Area Certification | NO | |
| Operating Force | 1.47N | |
| Mechanical Life | 1000000Cycles | |
| Alles selecteren | ||
|---|---|---|
Merk Omron | ||
Product Type Limit Switch | ||
Actuator Type Hinge Roller Lever | ||
Contact Configuration SPDT | ||
IP Rating IP40 | ||
Contact Type Crossbar | ||
Series D2F | ||
Minimum Operating Temperature -40°C | ||
Switching DC Voltage 30V dc | ||
Switching AC Voltage 250V ac | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals UL (UL61058-1)/cUL (CSA C22.2 No.61058-1) | ||
Hazardous Area Certification NO | ||
Operating Force 1.47N | ||
Mechanical Life 1000000Cycles | ||
The Omron switch is ultra sub miniature Basic switch wIth plenty of Terminal variations. It is incorporating a snapping mechanism MADE wIth two highly precise splIt springs that ensures long durabilIty.
Insulation resistance 100 MΩ minimum (at 500 VDC with insulation tester)
Degree of protection IEC IP40
Ambient operating humidity 85% maximum (for +5°C to +35°C)
Weight approx. 0.5 g (pin plunger models)
Line-up of 5A type for high load applications
