Aratas D2F Series Hinge Roller Lever Limit Switch, SPDT, IP40, 250V ac
- RS-stocknr.:
- 254-3098
- Fabrikantnummer:
- D2F-01L2-D3
- Fabrikant:
- Aratas
Bulkkorting beschikbaar
Bekijk bulkkortingSubtotaal (1 zak van 750 eenheden)*
€ 761,25
(excl. BTW)
€ 921,00
(incl. BTW)
Informatie over voorraden is momenteel niet toegankelijk - Controleer het later nog eens opnieuw
Aantal stuks | Per stuk | Per Zak* |
|---|---|---|
| 750 - 750 | € 1,015 | € 761,25 |
| 1500 - 2250 | € 0,99 | € 742,50 |
| 3000 + | € 0,954 | € 715,50 |
*prijsindicatie
- RS-stocknr.:
- 254-3098
- Fabrikantnummer:
- D2F-01L2-D3
- Fabrikant:
- Aratas
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Aratas | |
| Product Type | Limit Switch | |
| Actuator Type | Hinge Roller Lever | |
| IP Rating | IP40 | |
| Contact Configuration | SPDT | |
| Series | D2F | |
| Minimum Operating Temperature | -40°C | |
| Switching DC Voltage | 30V dc | |
| Switching AC Voltage | 250V ac | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | UL (UL61058-1)/cUL (CSA C22.2 No.61058-1) | |
| Hazardous Area Certification | No | |
| Mechanical Life | 1000000Operations | |
| Alles selecteren | ||
|---|---|---|
Merk Aratas | ||
Product Type Limit Switch | ||
Actuator Type Hinge Roller Lever | ||
IP Rating IP40 | ||
Contact Configuration SPDT | ||
Series D2F | ||
Minimum Operating Temperature -40°C | ||
Switching DC Voltage 30V dc | ||
Switching AC Voltage 250V ac | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals UL (UL61058-1)/cUL (CSA C22.2 No.61058-1) | ||
Hazardous Area Certification No | ||
Mechanical Life 1000000Operations | ||
- Land van herkomst:
- JP

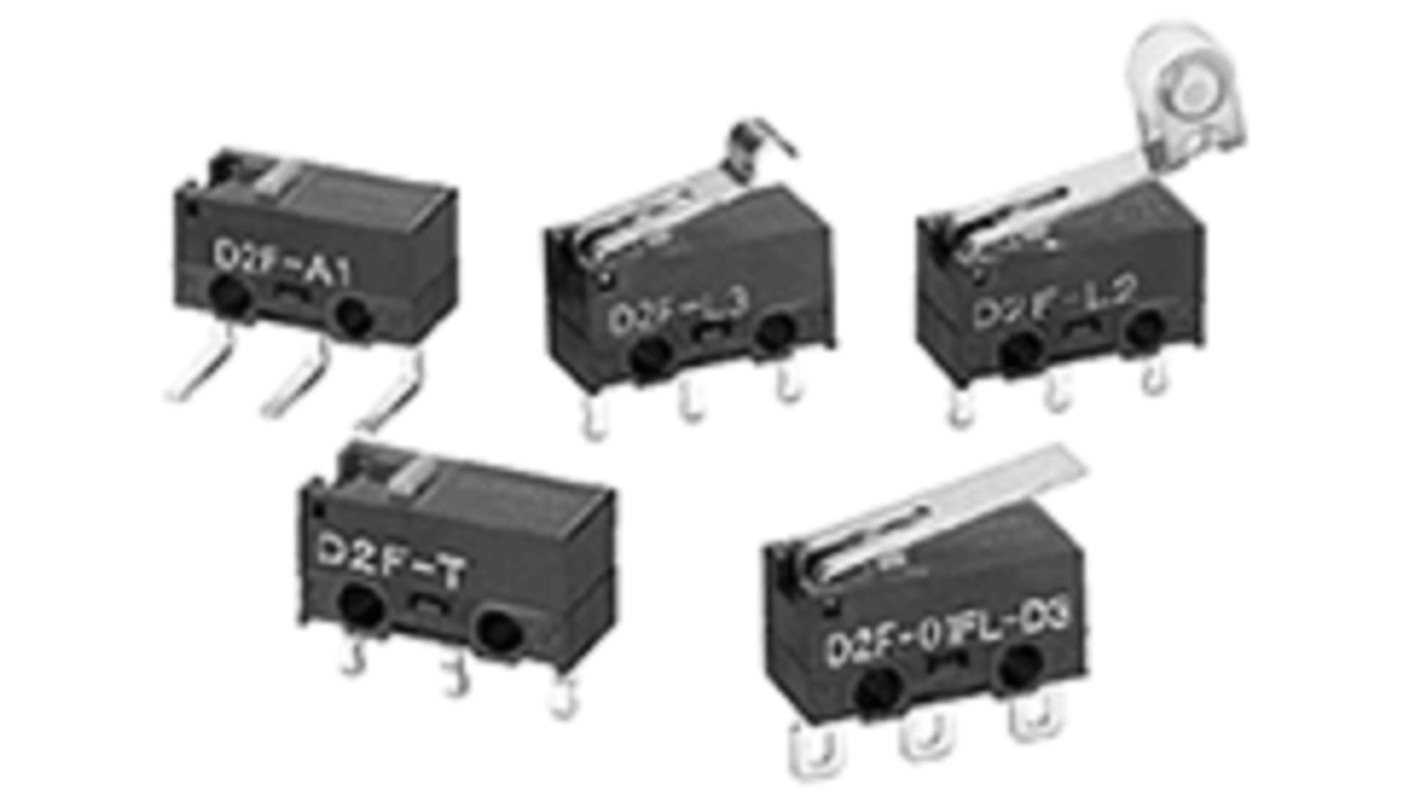

The Omron switch is ultra sub miniature Basic switch wIth plenty of Terminal variations, It is incorporating a snapping mechanism MADE wIth two highly precise splIt springs that ensures long durabilIty.
Permissible operating speed pin plunger
Insulation resistance 100 MΩ minimum (at 500 VDC with insulation tester)
Degree of protection IEC IP40
Ambient operating temperature -40°C to +85°C (at ambient humidity 60% maximum)
Ambient operating humidity 85% maximum (for +5°C to +35°C)
Weight approx 0.5 g (pin plunger models)
