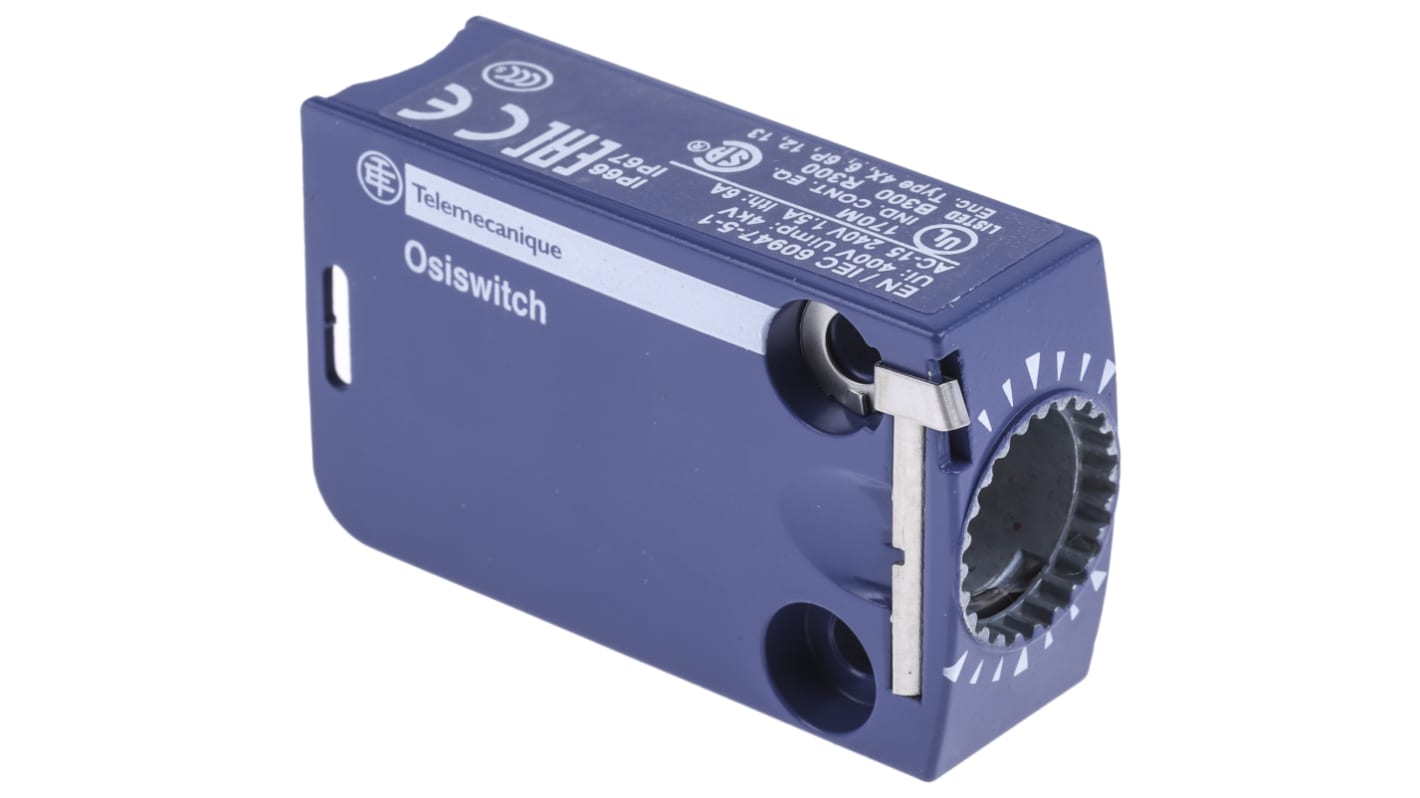

Telemecanique Sensors ZCMD Series Limit Switch Body, 1 NO/1 NC, IP66, Zamak Housing, 240V ac, 1.5A

RS-stocknr.:: 447-3806
Fabrikantnummer:: ZCMD21
Fabrikant:: Telemecanique Sensors

Telemecanique Sensors ZCMD Series Limit Switch Body, 1 NO/1 NC, IP66, Zamak Housing, 240V ac, 1.5A

Subtotaal (1 eenheid)*

€ 51,33

(excl. BTW)

€ 62,11

(incl. BTW)

GRATIS bezorging voor bestellingen van meer dan € 90,00

Beperkte voorraad

Plus verzending 37 stuk(s) vanaf 10 augustus 2026
Plus verzending 325 stuk(s) vanaf 10 augustus 2026

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Aantal stuks	Per stuk
1 +	€ 51,33

*prijsindicatie

RS-stocknr.:: 447-3806
Fabrikantnummer:: ZCMD21
Fabrikant:: Telemecanique Sensors

Specificaties

Datasheets

Wetgeving en compliance

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	Telemecanique Sensors
	Product Type	Limit Switch Body
	IP Rating	IP66
	Contact Configuration	1 NO/1 NC
	Housing Material	Zamak
	Contact Type	Snap Action
	Switching Current	1.5A
	Terminal Type	Connector
	Series	ZCMD
	Switching AC Voltage	240V ac
	Switching DC Voltage	250V dc
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	70°C
	Depth	16mm
	Length	50mm
	Standards/Approvals	UL 508, IEC 60947-1, EN/IEC 60947-5-1, CSA C22.2 No 14
	Width	30mm
	Hazardous Area Certification	No
	Mounting Orientation	Plug-In
	Mechanical Life	5000000Cycles

	Alles selecteren
	Merk Telemecanique Sensors
	Product Type Limit Switch Body
	IP Rating IP66
	Contact Configuration 1 NO/1 NC
	Housing Material Zamak
	Contact Type Snap Action
	Switching Current 1.5A
	Terminal Type Connector
	Series ZCMD
	Switching AC Voltage 240V ac
	Switching DC Voltage 250V dc
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 70°C
	Depth 16mm
	Length 50mm
	Standards/Approvals UL 508, IEC 60947-1, EN/IEC 60947-5-1, CSA C22.2 No 14
	Width 30mm
	Hazardous Area Certification No
	Mounting Orientation Plug-In
	Mechanical Life 5000000Cycles

Vrijgesteld

Land van herkomst:: ID

Telemecanique Sensors ZCMD Series Limit Switch Body, 50mm Length, IP66 - ZCMD21

This limit switch body provides a compact, plug-in solution for industrial position detection in automation systems. Designed for environments requiring enclosed protection, it offers snap-action switching with a connector-style Terminal and is suitable for installation in control assemblies and machinery where reliable electrical changeover is required.

Features and Benefits:

• Snap-action contacts deliver Rapid switching for precise control
• 1NO/1NC configuration allows both make and break signals
• Rated for 240V AC and 250V DC to suit AC and DC circuits
• Zamak housing ensures robust mechanical protection in harsh settings
• IP66 enclosure prevents dust ingress and high-pressure water jets
• Mechanical life of 5,000,000 cycles minimises maintenance intervals

Applications

• Suitable for end-of-travel detection on industrial actuators
• Ideal for monitoring machine doors and guards in production lines
• Used with conveyor systems for product position sensing
• Can be used for limit sensing in packaging machinery
• Used for safety interlock feedback to control panels

What temperature range can it reliably operate within?

It operates between -25°C and 70°C, allowing use in cold storage adjacencies and warm factory areas without derating.

How is the device mounted and connected electrically?

It uses a plug-in mounting orientation and a connector Terminal for direct wiring into modular control layouts.

Which standards does it meet for industrial installations?

It conforms to UL 508, IEC 60947-1, EN/IEC 60947-5-1 and CSA C22.2 No 14 for electrical switchgear and controlgear.

What are the external size constraints for panel design?

The body measures 50mm in length, 30mm in width and 16mm in depth for Compact integration.

What mechanical material and durability features support heavy use?

The housing is MADE from zamak and the switch is specified for 5,000,000 mechanical cycles to support repeated actuation.
