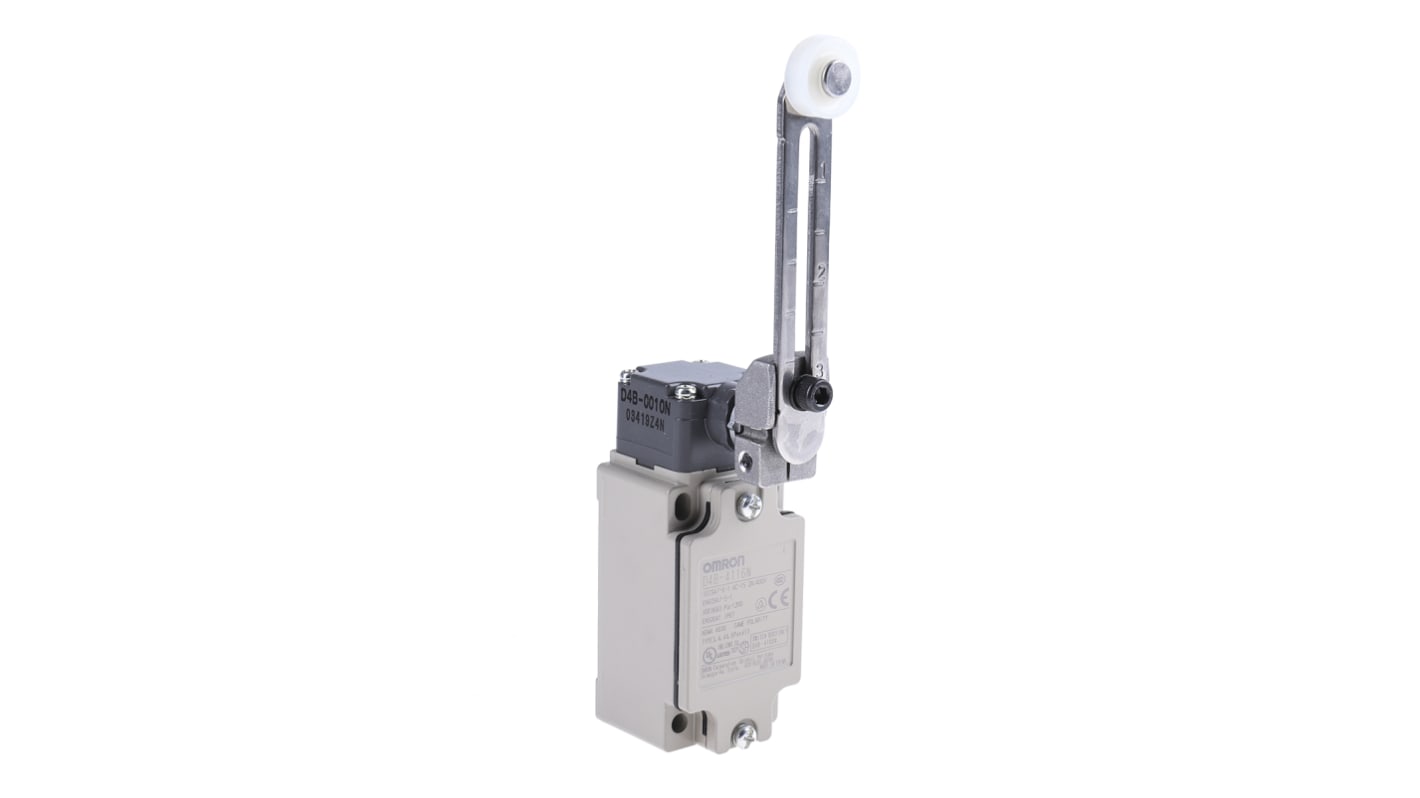

Omron D4B-@N Series Roller Lever Interlock Switch, 1 NO/1 NC, IP67, Metal Housing, 4A

RS-stocknr.:: 757-9159
Artikelnummer Distrelec:: 304-10-411
Fabrikantnummer:: D4B-4116N
Fabrikant:: Omron

Omron D4B-@N Series Roller Lever Interlock Switch, 1 NO/1 NC, IP67, Metal Housing, 4A

Afbeelding representeert productcategorie

Bulkkorting beschikbaar

Bekijk bulkkorting

Subtotaal (1 eenheid)*

€ 81,05

(excl. BTW)

€ 98,07

(incl. BTW)

GRATIS bezorging voor bestellingen van meer dan € 90,00

Op voorraad

Plus verzending 12 stuk(s) vanaf 24 augustus 2026
Plus verzending 27 stuk(s) vanaf 24 augustus 2026

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Aantal stuks	Per stuk
1 - 9	€ 81,05
10 - 14	€ 77,76
15 +	€ 74,40

*prijsindicatie

RS-stocknr.:: 757-9159
Artikelnummer Distrelec:: 304-10-411
Fabrikantnummer:: D4B-4116N
Fabrikant:: Omron

Specificaties

Datasheets

Wetgeving en compliance

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	Omron
	Product Type	Interlock Switch
	Actuator Type	Roller Lever
	Contact Configuration	1 NO/1 NC
	IP Rating	IP67
	Housing Material	Metal
	Contact Type	Snap Action
	Switching Current	4A
	Terminal Type	M20
	Series	D4B-@N
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	80°C
	Width	40mm
	Standards/Approvals	CCC, CE, CSA, UL
	Length	99.5mm
	Depth	43mm
	Hazardous Area Certification	No
	Mounting Orientation	Side
	Mechanical Life	30000000Cycles
	Conduit Entry	M20
	Operating Force	9.41N

	Alles selecteren
	Merk Omron
	Product Type Interlock Switch
	Actuator Type Roller Lever
	Contact Configuration 1 NO/1 NC
	IP Rating IP67
	Housing Material Metal
	Contact Type Snap Action
	Switching Current 4A
	Terminal Type M20
	Series D4B-@N
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 80°C
	Width 40mm
	Standards/Approvals CCC, CE, CSA, UL
	Length 99.5mm
	Depth 43mm
	Hazardous Area Certification No
	Mounting Orientation Side
	Mechanical Life 30000000Cycles
	Conduit Entry M20
	Operating Force 9.41N

Land van herkomst:: CN

OMRON Interlock Switch, 250g Weight, 4kV Impulse Withstand Voltage - D4B-N Series - D4B4116N

To put safety first when operating industrial machinery, install this interlock switch from OMRON. It has a lever with a roller at the end to monitor movement on devices like machine doors. This means an appliance can't run unless its guard is securely closed, reducing the risk of accidents. Thanks to its tough metal housing, this component holds its own against impact and abrasion. An operating speed of between 1mm/s and 0.5m/s means you can depend on the quick response needed to keep your workplace safe.

Features & Benefits

• Mechanical life of up to 30 million operating cycles means you can count on it to last

• Consumes just 2A of current during operation, so it's energy-efficient

• 4kV impulse withstand voltage rating shows that it handles power spikes without damage

• Compact dimensions of 99.5 (L) x 40 (W) x 43mm (D) means it takes up minimal space in your setup

• Resin roller resists wear to support smooth operation

Applications

• Process and packaging equipment

• Automotive industry

• Oil and gas plants

Is this switch waterproof?

Yes, its IP67 rating means it withstands immersion in up to 1m of water for 30 minutes. This means you can install it in setups that are regularly washed down.
