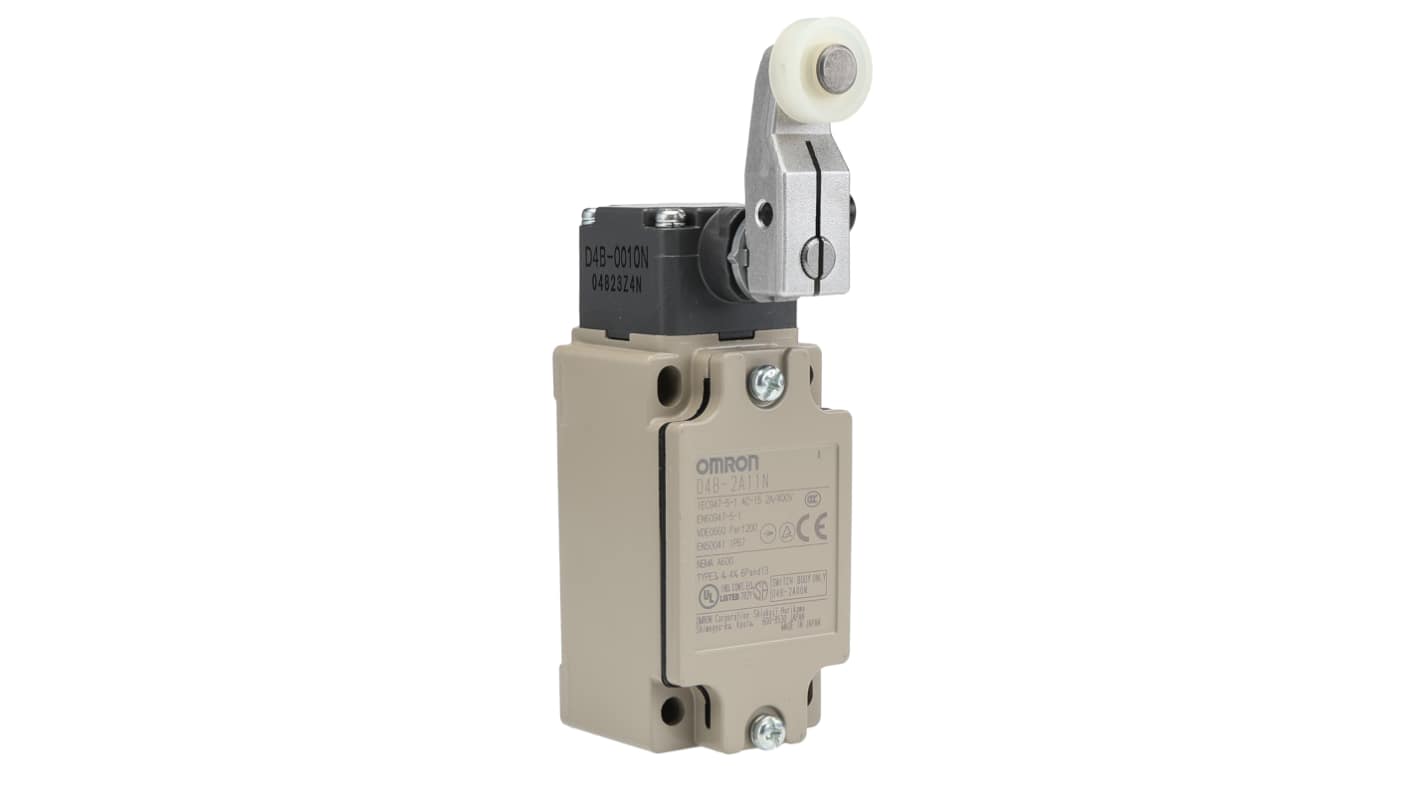

Omron D4B-@N Series Roller Lever Limit Switch, 2 NC, IP67, Metal Housing, 600V

RS-stocknr.:: 807-4431
Fabrikantnummer:: D4B-2A11N
Fabrikant:: Omron

Omron D4B-@N Series Roller Lever Limit Switch, 2 NC, IP67, Metal Housing, 600V

Bulkkorting beschikbaar

Bekijk bulkkorting

Subtotaal (1 eenheid)*

€ 93,45

(excl. BTW)

€ 113,07

(incl. BTW)

GRATIS bezorging voor bestellingen van meer dan € 90,00

Op voorraad

Plus verzending 11 stuk(s) vanaf 08 juni 2026

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Aantal stuks	Per stuk
1 - 4	€ 93,45
5 +	€ 89,63

*prijsindicatie

RS-stocknr.:: 807-4431
Fabrikantnummer:: D4B-2A11N
Fabrikant:: Omron

Specificaties

Datasheets

Wetgeving en compliance

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	Omron
	Actuator Type	Roller Lever
	Product Type	Limit Switch
	IP Rating	IP67
	Contact Configuration	2 NC
	Housing Material	Metal
	Contact Type	Slow Action
	Terminal Type	Screw
	Series	D4B-@N
	Switching AC Voltage	600V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	80°C
	Width	43mm
	Standards/Approvals	CCC, CE, CSA, IEC, RoHS, TUV, UL
	Length	40mm
	Depth	131.3mm
	Hazardous Area Certification	No
	Mounting Orientation	Vertical
	Mechanical Life	10000000Operations
	Operating Force	9.41N
	Conduit Entry	G 1/2

	Alles selecteren
	Merk Omron
	Actuator Type Roller Lever
	Product Type Limit Switch
	IP Rating IP67
	Contact Configuration 2 NC
	Housing Material Metal
	Contact Type Slow Action
	Terminal Type Screw
	Series D4B-@N
	Switching AC Voltage 600V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 80°C
	Width 43mm
	Standards/Approvals CCC, CE, CSA, IEC, RoHS, TUV, UL
	Length 40mm
	Depth 131.3mm
	Hazardous Area Certification No
	Mounting Orientation Vertical
	Mechanical Life 10000000Operations
	Operating Force 9.41N
	Conduit Entry G 1/2

Land van herkomst:: JP

Omron D4B-N Series Limit Switch, 2NC Normal State Configuration, 10A Maximum Current - D4B-2A11N

This limit switch is designed for reliable automation processes within various industrial settings. The device features a robust metal housing, offering enhanced durability and an IP67 rating for protection against dust and water ingress. With a length of 40mm, width of 43mm, and depth of 131.3mm, it is suitable for vertical mounting applications. The roller lever actuator ensures smooth operation, making it an ideal solution for precise control in automated systems.

Features & Benefits

• Metal housing enhances device durability and longevity

• IP67 rating provides protection against environmental elements

• Slow action design reduces wear and extends operational life

• High voltage capacity supports both AC (up to 600V) and DC (up to 250V)

Applications

• Used for safety interlocks in machinery

• Utilised in conveyor systems for monitoring position

• Ideal for control panels in industrial automation

• Effective in robotic for precision feedback

• Used in lift systems for safety and operational reliability

How does the IP67 rating influence its performance in industrial environments?

The IP67 rating ensures that the switch is both dust-tight and capable of withstanding immersion in water, making it suitable for harsh conditions often found in factories or outdoor settings. This reliability reduces maintenance needs and extends the lifespan of the equipment.

What are the advantages of the slow action design in operational contexts?

A slow action design allows for more controlled switching, which minimises shock loads and mechanical stress on the switch, thereby enhancing its lifespan and reducing the likelihood of failure in demanding applications.

Can this device operate in extreme temperatures?

Yes, it has an operating temperature range of -40°C to +80°C, allowing it to function effectively in both cold and hot environments, making it adaptable for various industrial applications.

What safety features are included to prevent accidental operation?

The switch comes equipped with a certified direct opening mechanism that separates the contacts in the event of fusion or failure, providing an additional layer of safety and reliability during operation.

How is the installation facilitated with its design?

The vertical mounting capability along with a clear operating position indicator simplifies installation and ensures that the device can be set up accurately in minimal time, reducing downtime during production changes.
