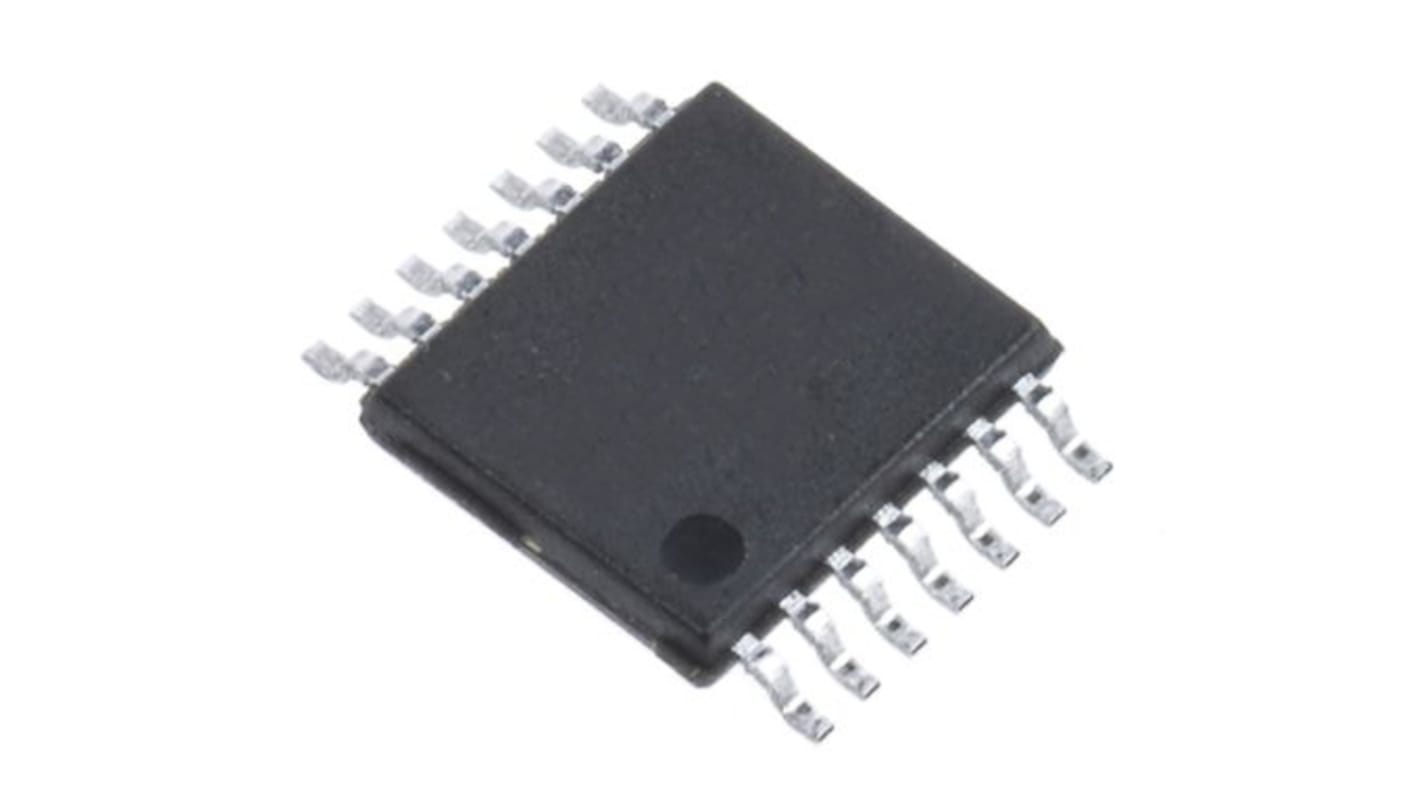

onsemi 74LCX07MTCX, 6 6-Input Buffer Logic Gate, 14-Pin TSSOP
- RS-stocknr.:
- 186-8263
- Fabrikantnummer:
- 74LCX07MTCX
- Fabrikant:
- onsemi
Bulkkorting beschikbaar
Subtotaal (1 verpakking van 25 eenheden)*
€ 4,725
(excl. BTW)
€ 5,725
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 75,00
Tijdelijk niet op voorraad
- Verzending vanaf 23 april 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk | Per verpakking* |
|---|---|---|
| 25 - 75 | € 0,189 | € 4,73 |
| 100 - 225 | € 0,163 | € 4,08 |
| 250 + | € 0,141 | € 3,53 |
*prijsindicatie
- RS-stocknr.:
- 186-8263
- Fabrikantnummer:
- 74LCX07MTCX
- Fabrikant:
- onsemi
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | onsemi | |
| Product Type | Logic Gate | |
| Logic Function | Buffer | |
| Mount Type | Surface | |
| Number of Elements | 6 | |
| Number of Inputs per Gate | 6 | |
| Schmitt Trigger Input | No | |
| Package Type | TSSOP | |
| Pin Count | 14 | |
| Logic Family | LCX | |
| Input Type | CMOS | |
| Maximum Propagation Delay Time @ CL | 3ns | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Width | 4.5 mm | |
| Minimum Supply Voltage | 2V | |
| Height | 1.05mm | |
| Maximum Supply Voltage | 5.5V | |
| Standards/Approvals | No | |
| Length | 5.1mm | |
| Maximum Low Level Output Current | 32mA | |
| Output Type | Open Drain | |
| Automotive Standard | No | |
| Alles selecteren | ||
|---|---|---|
Merk onsemi | ||
Product Type Logic Gate | ||
Logic Function Buffer | ||
Mount Type Surface | ||
Number of Elements 6 | ||
Number of Inputs per Gate 6 | ||
Schmitt Trigger Input No | ||
Package Type TSSOP | ||
Pin Count 14 | ||
Logic Family LCX | ||
Input Type CMOS | ||
Maximum Propagation Delay Time @ CL 3ns | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Width 4.5 mm | ||
Minimum Supply Voltage 2V | ||
Height 1.05mm | ||
Maximum Supply Voltage 5.5V | ||
Standards/Approvals No | ||
Length 5.1mm | ||
Maximum Low Level Output Current 32mA | ||
Output Type Open Drain | ||
Automotive Standard No | ||
The LCX07 contains six buffers. The inputs tolerate voltages up to 7V allowing the interface of 5V systems to 3V systems. The outputs of the LCX07 are open drain and can be connected to other open drain outputs to implement active HIGH wire AND or active LOW wire OR functions. The 74LCX07 is fabricated with advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.
5V tolerant inputs
2.3V to 5.5V VCC specifications provided
2.9 ns tPD max (VCC = 3.3V), 10 μA ICC max
Power down high impedance inputs and outputs
+24 mA output drive (VCC = 3.0V)
Implements patented noise/EMI reduction circuitry
ESD performance: Human body model > 2000V Machine model > 200V
Leadless Pb-Free DQFN package
Applications
This product is general usage and suitable for many different applications.
