Eclipse Pot Magnet 80 mm Threaded M10, 55 kg Pull 18 mm

Bekijk alle Magnets
Bulkkorting beschikbaar

Subtotaal (1 eenheid)*

€ 26,71

(excl. BTW)

€ 32,32

(incl. BTW)

Add to Basket
selecteer of typ hoeveelheid
Op voorraad
  • Plus verzending 37 stuk(s) vanaf 20 april 2026
  • Plus verzending 358 stuk(s) vanaf 20 april 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Aantal stuks
Per stuk
1 - 4€ 26,71
5 - 9€ 25,35
10 - 29€ 24,05
30 +€ 22,44

*prijsindicatie

RS-stocknr.:
819-9026
Fabrikantnummer:
E781
Fabrikant:
Eclipse
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren

Merk

Eclipse

Magnet Type

Pot

Product Type

Magnet

Width/Diameter

80mm

Pull Force

55kg

Thickness

18mm

Attachment Type

Threaded M10

Length

50mm

Standards/Approvals

ISO 14001, ISO 9001

Land van herkomst:
CN

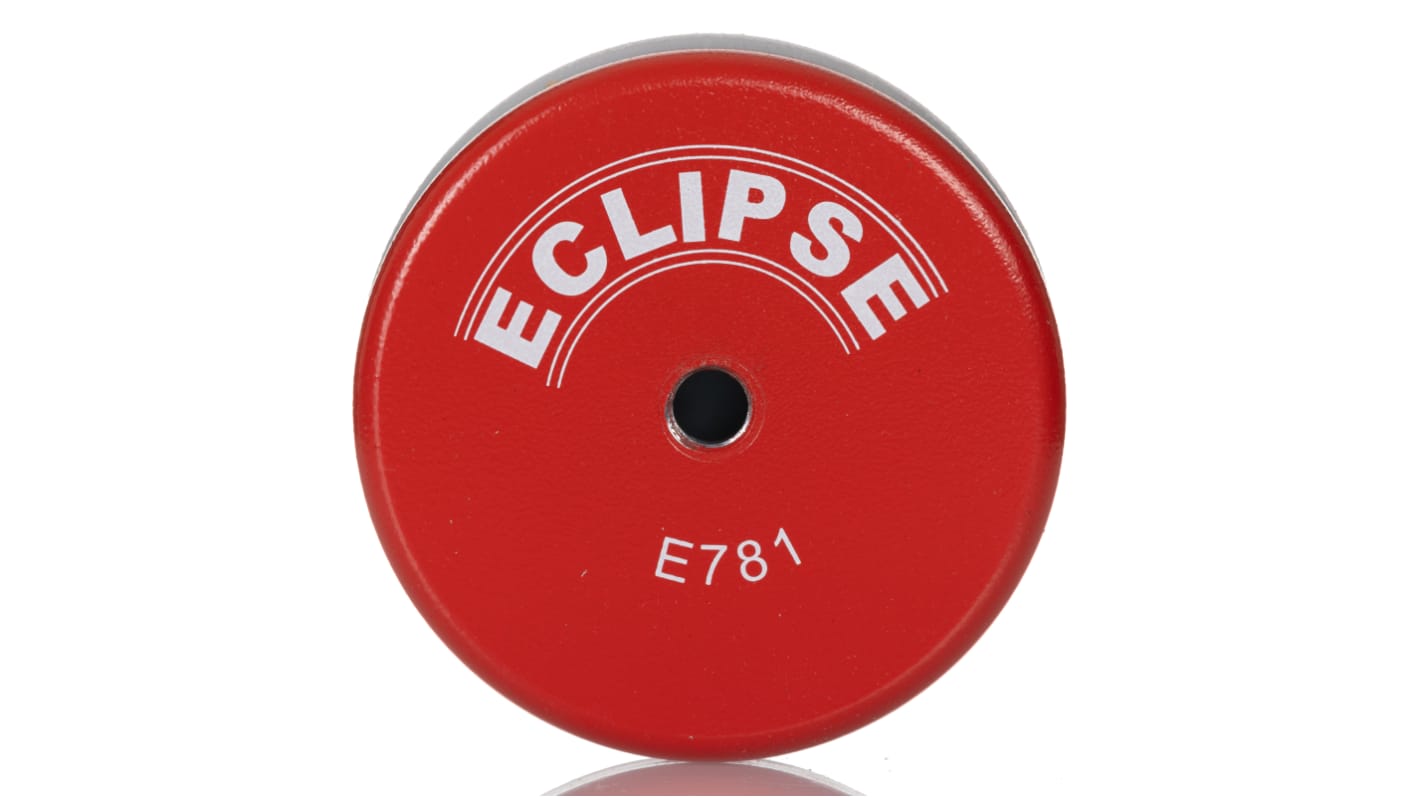

Eclipse Shallow Pot Magnet


The Eclipse red shallow pot magnet is made of ferrite material and has up to 40kg pull force. This pot magnet is known as female threaded stud pot magnet because the internally threaded hole can take pot magnets with a threaded bar at the back as well as bolts. It can be used at temperature up to 120°C. It offers an efficient design for gripping.

Features and Benefits


Height of 20mm and a diameter of 80mm

Excellent resistance to corrosion

No stray flux as magnetism is retained in a closed circuit

The pot screens the magnet material from de-magnetising effects

Pot is machinable

Mild steel pot body

M10 thread size

Weight is 0.56kg

Applications


Assembly work

Tensioning
