SMC VBA Pneumatic Booster Regulator, 1/2 in

Bekijk deze categorie

Subtotaal (1 eenheid)*

€ 1.185,80

(excl. BTW)

€ 1.434,82

(incl. BTW)

Add to Basket
selecteer of typ hoeveelheid
Op voorraad
  • 1 stuk(s) klaar voor verzending
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks
Per stuk
1 +€ 1.185,80

*prijsindicatie

RS-stocknr.:
196-1208
Fabrikantnummer:
VBA43A-F04GS
Fabrikant:
SMC
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren

Merk

SMC

Product Type

Pneumatic Booster Regulator

Pressure Increase Ratio

1:2

Maximum Flow Rate

1900L/min

Maximum Input Pressure

1.6MPa

Port Size

1/2 in

Connection Thread Standard

G

Series

VBA

Pressure Gauge

Yes

Silencer

Yes

Minimum Set Pressure

0.2MPa

Maximum Set Pressure

1.6MPa

Minimum Operating Temperature

2°C

Maximum Operating Temperature

50°C

Standards/Approvals

RoHS

Weight

8.6kg

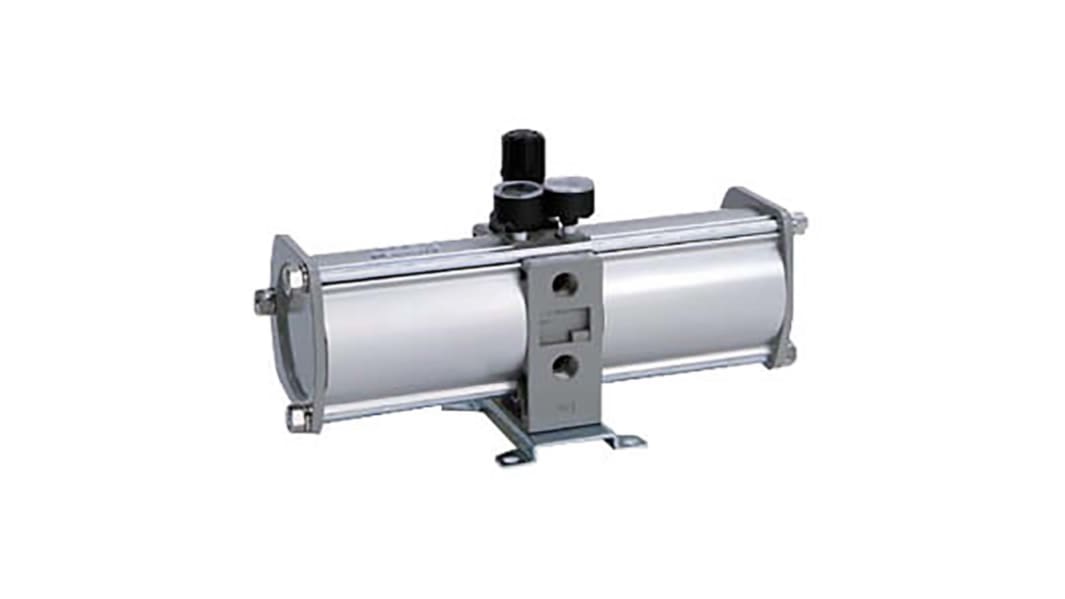

SMC VBA Series Pneumatic Booster Regulator, 16 Bar Maximum Input Pressure, 1:2 Pressure Increase Ratio - VBA43A-F04GS


This pneumatic booster regulator is designed to enhance pressure regulation in various pneumatic systems. Featuring a G 1/2 port connection, it accommodates a maximum input pressure of 16 bar, ensuring reliable performance in demanding environments. The robust construction of this unit, weighing 8.6 kg, supports a wide operating temperature range from +2 °C to +50 °C, making it suitable for industrial applications.

Features & Benefits


• Offers a pressure increase ratio of 1:2 for enhanced efficiency

• Maximum operating pressure of 1.6 MPa ensures robust performance

• Adjustable pressure regulator allows precise pressure settings

• Equipped with a pressure gauge for clear visibility of readings

• Compact design facilitates horisontal installation with ease

• Made to order as standard to meet specific user requirements

Applications


• Used with automated assembly lines requiring stable pressure

• Utilised in pneumatic machinery for improved operation

• Applied in air handling systems needing precise air flow control

• Ideal for compressed air systems in manufacturing processes

What is the maximum ambient temperature the product can withstand?


It can operate safely at a maximum ambient temperature of +50 °C, making it suitable for various demanding environments.

How do I adjust the pressure settings effectively?


The regulator features a handle-operated mechanism which allows users to easily adjust the pressure settings from a minimum of 0.2 MPa to a maximum of 1.6 MPa.

Is lubrication required for operation?


This unit is designed as non-lube and operates effectively with grease, minimising maintenance requirements.

What is the flow rate capability of this regulator?


It boasts a flow rate of 1600 l/min, ensuring efficient air delivery for pneumatic applications.

Can it handle multiple pneumatic connections?


Yes, it supports up to three pneumatic connections, enhancing versatility in various setups.
