Festo GRLA-1/4-RS-B Series Flow Control Valve Pressure Relief Valve, Inlet Female, Threaded G 1/4 Male Thread G 1/4 in,

RS-stocknr.:: 202-2949
Fabrikantnummer:: GRLA-1/4-RS-B
Fabrikant:: Festo

Festo GRLA-1/4-RS-B Series Flow Control Valve Pressure Relief Valve, Inlet Female, Threaded G 1/4 Male Thread G 1/4 in,

Subtotaal (1 eenheid)*

€ 34,39

(excl. BTW)

€ 41,61

(incl. BTW)

GRATIS bezorging voor bestellingen van meer dan € 90,00

Op voorraad

Plus verzending 7 stuk(s) vanaf 27 april 2026
Plus verzending 14 stuk(s) vanaf 27 april 2026

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Aantal stuks	Per stuk
1 +	€ 34,39

*prijsindicatie

RS-stocknr.:: 202-2949
Fabrikantnummer:: GRLA-1/4-RS-B
Fabrikant:: Festo

Specificaties

Datasheets

Wetgeving en compliance

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	Festo
	Product Type	Pressure Relief Valve
	Inlet Connection Type	Threaded
	Outlet Connection Type	Threaded
	Sub Type	Flow Control Valve
	Inlet Connection Size	Male Thread G 1/4 in
	Outlet Connection Size	Female Thread 1/4
	Series	GRLA-1/4-RS-B
	Inlet Thread Standard	G 1/4
	Inlet Port Gender	Female
	Maximum Operating Pressure	10 bar
	Material	Die Cast Zinc, Wrought Aluminium Alloy, Brass, Nitrile Rubber (NBR)
	Outlet Port Gender	Male
	Minimum Operating Temperature	-10°C
	Maximum Operating Temperature	60°C
	Standards/Approvals	ISO8573-1:2010, RoHS
	Hazardous Area Certification	NO
	Minimum Operating Pressure	0.3bar

	Alles selecteren
	Merk Festo
	Product Type Pressure Relief Valve
	Inlet Connection Type Threaded
	Outlet Connection Type Threaded
	Sub Type Flow Control Valve
	Inlet Connection Size Male Thread G 1/4 in
	Outlet Connection Size Female Thread 1/4
	Series GRLA-1/4-RS-B
	Inlet Thread Standard G 1/4
	Inlet Port Gender Female
	Maximum Operating Pressure 10 bar
	Material Die Cast Zinc, Wrought Aluminium Alloy, Brass, Nitrile Rubber (NBR)
	Outlet Port Gender Male
	Minimum Operating Temperature -10°C
	Maximum Operating Temperature 60°C
	Standards/Approvals ISO8573-1:2010, RoHS
	Hazardous Area Certification NO
	Minimum Operating Pressure 0.3bar

Land van herkomst:: DE

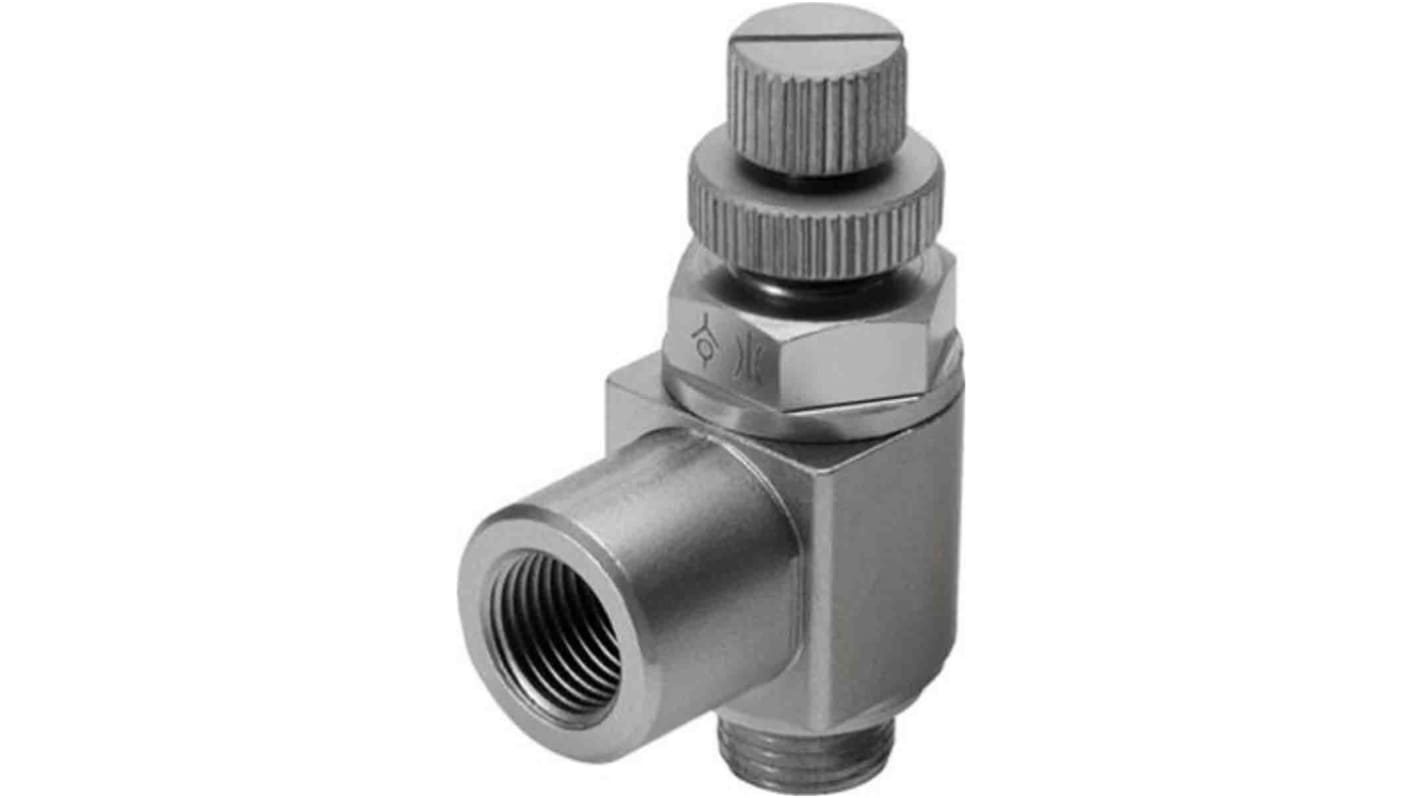

Festo Pressure Relief Valve, One-Way Flow Control, 610L/min Standard Nominal Flow Rate - GRLA-1/4-RS-B

Stay on top of the flow rate of compressed exhaust air using this Festo pressure relief valve. It controls the piston speed of a pneumatic drive, which helps to keep your mechanical components working accurately and at the right pace. Thanks to a knurled and slotted screw, you'll find it's a cinch to adjust and set your desired air flow rate. Durable nitrile rubber seals keep air in and contamination out, and are unlikely to crack under pressure. An operating pressure range between 0.3 and 10 bar means this relief valve is a versatile pick.

Features & Benefits

• Light weight of 59g puts minimal strain on air pipes

• Optional assembly in any position to suit your setup

• Die-cast zinc swivel fitting resists wear and corrosion for longevity in demanding settings

• Threaded connection ports support quick and easy pipe attachment

Applications

• Food and beverage industries

• Industrial automation

• Textile manufacturing

• Packaging lines

Can I adjust the position of this pressure relief valve once it's mounted?

Yes. For convenience, this component's screw-in axis lets you swivel it up to 360° after you've mounted it.
