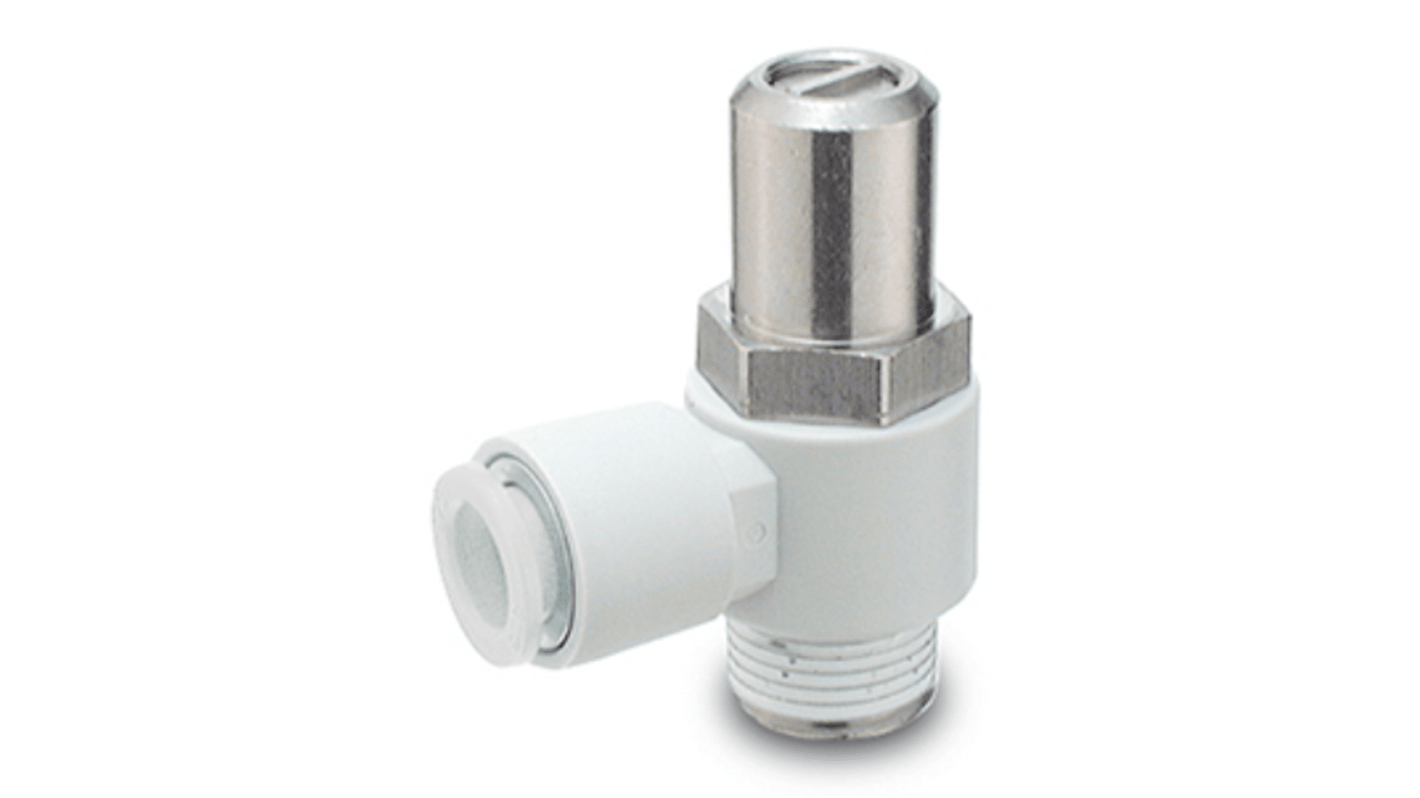

SMC AS Series Speed Controller Speed Controller, Threaded M5 x 0.8 mm Tube 4 mm
- RS-stocknr.:
- 255-2454
- Fabrikantnummer:
- AS1201F-M5-04T
- Fabrikant:
- SMC
Subtotaal (1 eenheid)*
€ 8,87
(excl. BTW)
€ 10,73
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- Plus verzending 14 stuk(s) vanaf 27 april 2026
- Plus verzending 48 stuk(s) vanaf 27 april 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 8,87 |
*prijsindicatie
- RS-stocknr.:
- 255-2454
- Fabrikantnummer:
- AS1201F-M5-04T
- Fabrikant:
- SMC
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | SMC | |
| Product Type | Speed Controller | |
| Inlet Connection Type | Threaded | |
| Outlet Connection Type | Tube | |
| Sub Type | Speed Controller | |
| Inlet Connection Size | M5 x 0.8 mm | |
| Outlet Connection Size | 4 mm | |
| Series | AS | |
| Maximum Operating Pressure | 1 Mpa | |
| Material | Polyurethane, Perfluoroalkoxy Alkane, Nylon, Fluorinated Ethylene Propylene, Soft Nylon | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS | |
| Minimum Operating Pressure | 0.1MPa | |
| Hazardous Area Certification | NO | |
| Proof Pressure | 1.5MPa | |
| Alles selecteren | ||
|---|---|---|
Merk SMC | ||
Product Type Speed Controller | ||
Inlet Connection Type Threaded | ||
Outlet Connection Type Tube | ||
Sub Type Speed Controller | ||
Inlet Connection Size M5 x 0.8 mm | ||
Outlet Connection Size 4 mm | ||
Series AS | ||
Maximum Operating Pressure 1 Mpa | ||
Material Polyurethane, Perfluoroalkoxy Alkane, Nylon, Fluorinated Ethylene Propylene, Soft Nylon | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS | ||
Minimum Operating Pressure 0.1MPa | ||
Hazardous Area Certification NO | ||
Proof Pressure 1.5MPa | ||
- Land van herkomst:
- JP
The SMC speed controller tamper proof and flat head screwdriver adjust variants require a tool to change settings. The flow rate can be adjusted with a special tool and has extra protection against inadvertent operation.
Elbow or universal style
Meter-in or meter-out control
Body sizes M5, 1/8, 1/4, 3/8, 1/2
