SMC AS Series Speed Controller

Bekijk deze categorie
Bulkkorting beschikbaar

Subtotaal (1 eenheid)*

€ 8,57

(excl. BTW)

€ 10,37

(incl. BTW)

Add to Basket
selecteer of typ hoeveelheid
Op voorraad
  • 38 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Aantal stuks
Per stuk
1 - 4€ 8,57
5 - 9€ 8,34
10 +€ 8,03

*prijsindicatie

RS-stocknr.:
827-0872
Fabrikantnummer:
AS1201F-U10/32-04A
Fabrikant:
SMC
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren

Merk

SMC

Product Type

Speed Controller

Series

AS

Maximum Operating Pressure

1 Mpa

Minimum Operating Temperature

-5°C

Material

Zinc Chromated, Hydrogenated Nitrile Butadiene Rubber, Brass, Electroless Nickel Plated, Steel, Stainless Steel, Polybutylene Terephthalate, Nitrile Butadiene Rubber, Polyoxymethylene

Maximum Operating Temperature

60°C

Standards/Approvals

UL Standard V-0

Hazardous Area Certification

NO

Minimum Operating Pressure

0.1MPa

Proof Pressure

1.5MPa

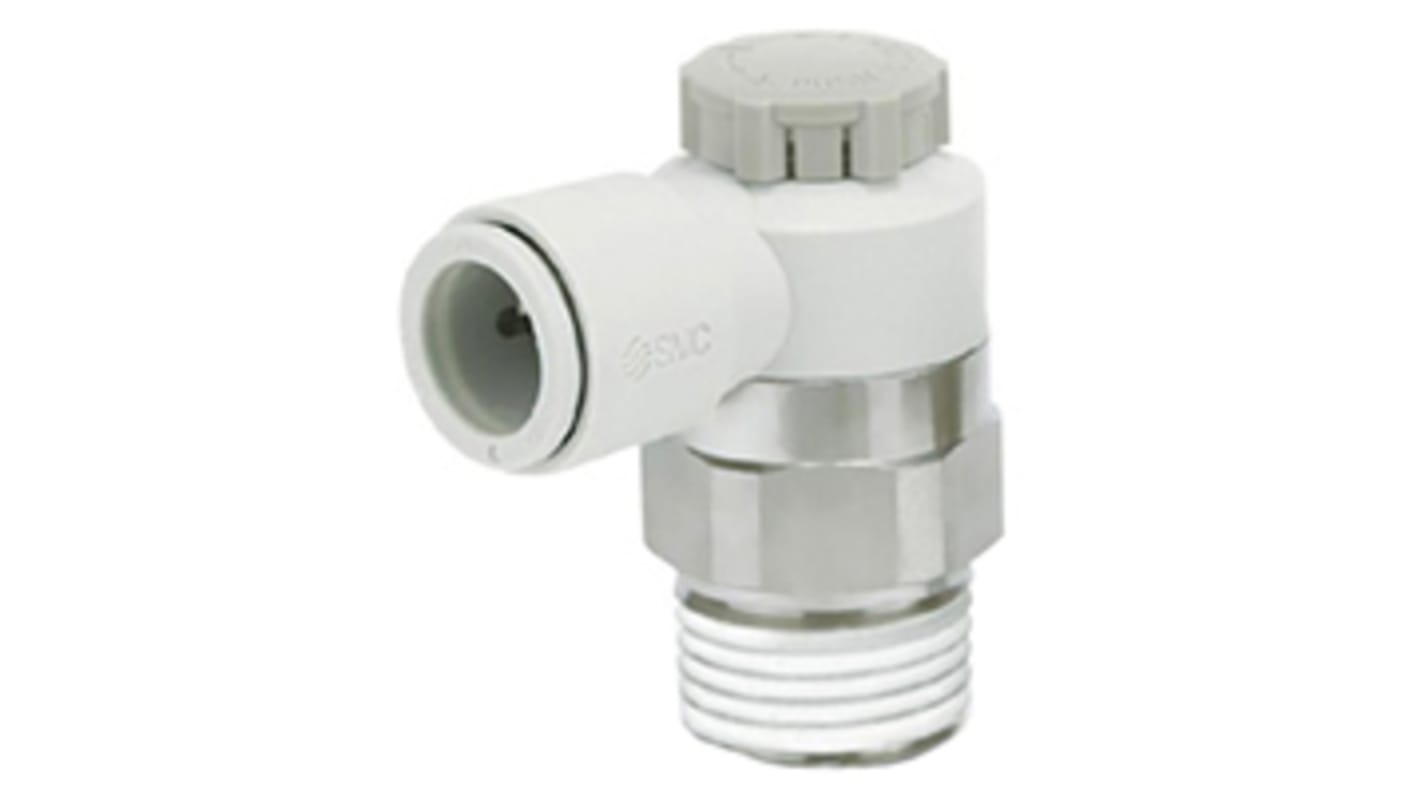

Speed Controller - Elbow - AS One Touch


Regulators for controlling the flow of compressed air to pneumatic actuators. SMC’s AS series speed controllers have a larger, push-pull locking dial making precise adjustment and control easy and reducing the setting time by half. Available to suit a range of tubing diameters.

Meter in operation

Large handle makes precise adjustment easy

Lighter than existing version

Greater clearance between tubing and base fitting makes tube fitting easier

Easier and faster to adjust 8 seconds compared to 17 for current version

Impact resistant one-push locking

Colour coded dial for easy identification of meter in or meter out at a distance

Compact - Less than 2mm height difference between fully open and fully closed.

Flow Regulators & Restrictors - SMC


Regulators for controlling the flow of compressed air to pneumatic actuators. SMC’s AS series speed controllers have a larger, push-pull locking dial making precise adjustment and control easy and reducing the setting time by half. Available to suit a range of tubing diameters.
